The digital input and output of the single-channel component enables easy integration into digital systems, makes external driver stages and current limiting resistors obsolete, simplifies designs and reduces costs. The space-saving component combines a maximum pulse distortion of only 6ns, a maximum supply current of 2mA and a supply voltage range of 2.7V to 5.5V and is fast enough to support BUS systems such as SPI, as well as controllers for UPS systems or to transmit high-resolution PWM signals.
The optocouplers have no forward current or current limiting resistor at the input and no pull-up resistor at the output and deliver a high-speed data rate of up to 25MBd. They feature digitally controlled LED drivers with high-speed IRED, coupled with integrated optical photodiode IC detectors. The components offer a guaranteed common mode interference immunity (CMTI) of at least 20 kV / µs, which, combined with a low switch-on threshold and low supply current, makes them ideal for noise suppression and the interruption of ground loops.

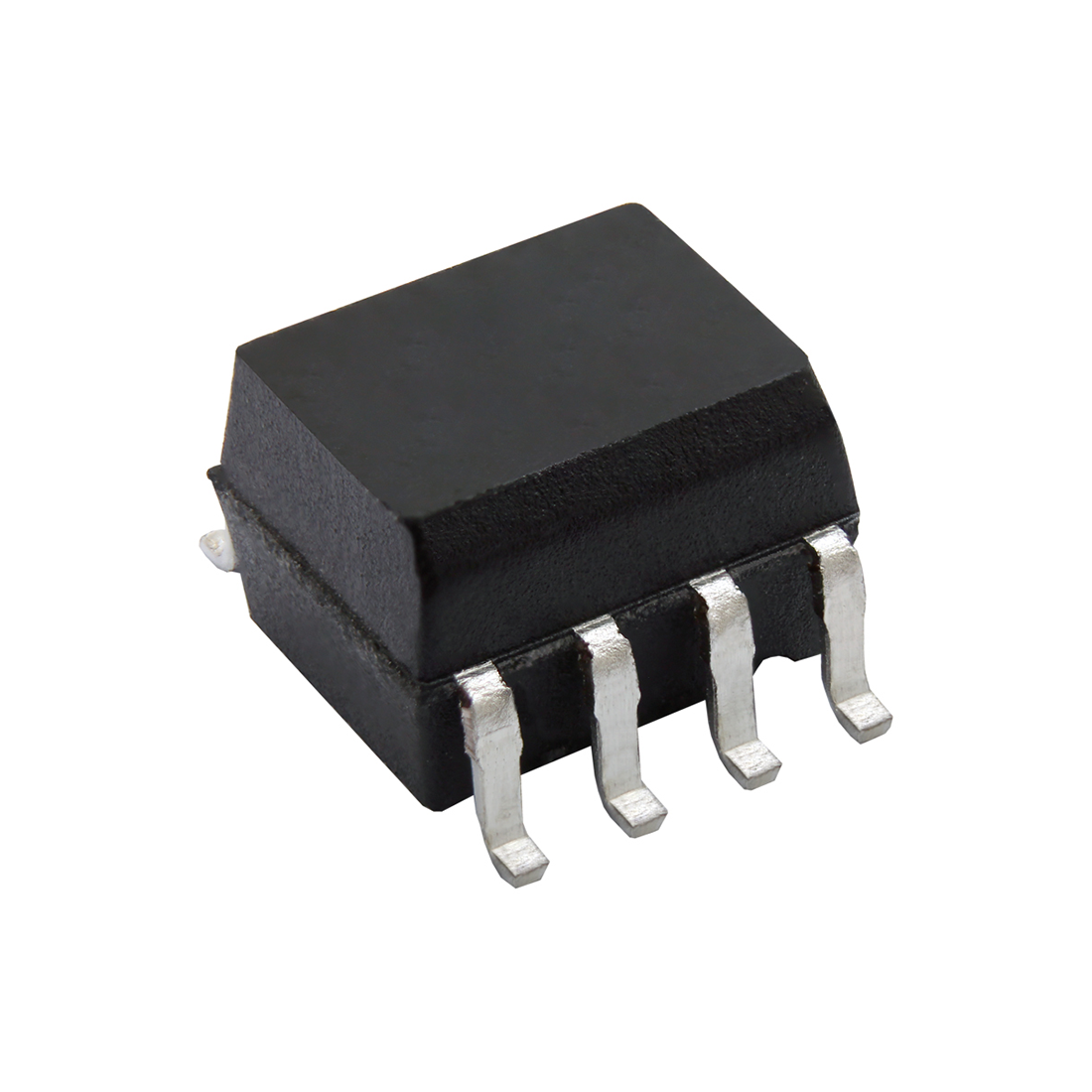

Suitable for use in an operating temperature range from -40°C to +110°C and installed in a small form factor SOIC-8 package, they are also pin-compatible with solutions from other manufacturers and are particularly suitable for use in new and existing designs for applications in data communication, pulse width modulation or the provision of high-voltage safety in motor drives or automation devices.
Benefits at a glance:
- Digital CMOS logic input and output
- High-speed data rate of 25MBd
- Supply voltage range from 2.7 V up to 5.5V
- Operating temperature range from -40°C to +110°C
- Low maximum pulse width distortion of 6ns
- Maximum supply current of only 2mA
- SOIC-8 housing
- RoHS compliant
- Digitally controlled LED drivers with high-speed IRED, coupled with integrated optical photodiode IC detector
- Pin-compatible with solutions from other manufacturers
Application examples:
- Galvanic isolation in digital systems
- Elimination of earth loops
- Isolation of digital BUS systems
- Isolation of PLC and ATE interfaces
- Feedback control in digital power supplies
In market segments like:
- Automotive industry
- Industry 4.0
- Advanced robotics
