In many industrial systems, the solenoid valve connector is a relatively small component. It is easy to treat it as a standard connection point, something selected after the valve, manifold, actuator, or control system has already been specified.

But in the field, small components often create large problems.

Solenoid valve connectors are routinely exposed to vibration, moisture, dust, washdown, oil, temperature variation, and repeated handling during installation or maintenance. When a connector fails, the result is not always viewed as a connector problem. It may appear as a valve issue, a machine fault, an intermittent control problem, or an unexpected downtime event.

That is why connector design is becoming a more important consideration for OEMs, machine builders, and engineers working with fluid power, automation, and mobile equipment systems.

Canfield Connector’s 5F and 5J Series moulded DIN solenoid valve connector assemblies are designed around this exact challenge: improving connection reliability, environmental integrity, and installation consistency in demanding applications.

The challenge with field-wired connections

Field-wired DIN solenoid valve connectors have long been common in industrial applications. They provide flexibility and are familiar to many maintenance teams, but they also introduce variables into the installation.

A field-wired connector depends heavily on the quality of the termination, gasket placement, cable selection, and care taken during assembly. In controlled conditions, that may not be a concern. In a production environment, on mobile equipment, or in systems exposed to washdown or vibration, it can become a weak point.

Common issues include loose wiring, moisture intrusion, lost or improperly seated gaskets, inconsistent cable strain relief, and wiring errors during maintenance or replacement. These problems may not show up immediately. A system may run properly during startup, only to experience intermittent issues weeks or months later after exposure to vibration, temperature changes, or routine cleaning.

For engineers designing systems where uptime and reliability matter, reducing these variables is a practical advantage.

The shift toward moulded connector assemblies

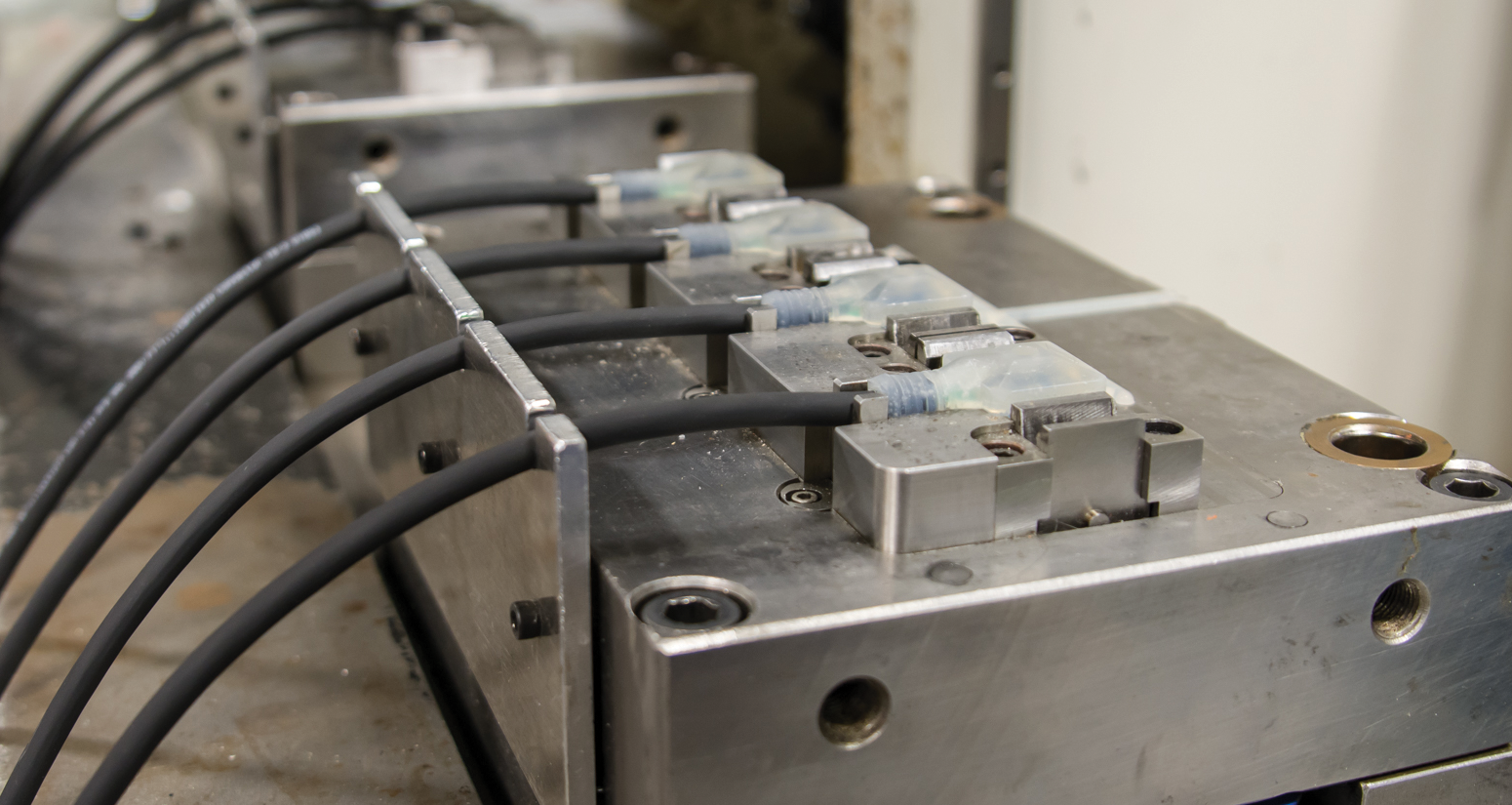

All-moulded solenoid valve connector assemblies address many of the weaknesses associated with field-wired designs. Instead of relying on field assembly, the connector, gasket, and cord are integrated into a factory-moulded construction.

This approach improves environmental integrity because the assembly is sealed as a complete unit. It also helps standardise performance from one installation to the next. For OEMs and system integrators building equipment at scale, that consistency matters.

Canfield Connector’s 5F and 5J Series are all-moulded DIN solenoid valve connector/gasket/cord assemblies made from rugged yet flexible polyurethane. The moulded design supports durability and application versatility while helping reduce the installation variables that can come with field-wired versions.

A moulded connector assembly can also reduce installation time and simplify replacement. Rather than assembling or wiring the connector in the field, technicians work with a finished cord assembly designed for the application.

In harsh operating environments, this can be the difference between a connection that remains stable and one that becomes a recurring service issue.

Addressing space constraints in modern equipment

Industrial equipment continues to become more compact. Valves, manifolds, sensors, cables, and control components are often placed into tighter spaces than in previous generations of equipment.

This creates another design challenge: connector orientation.

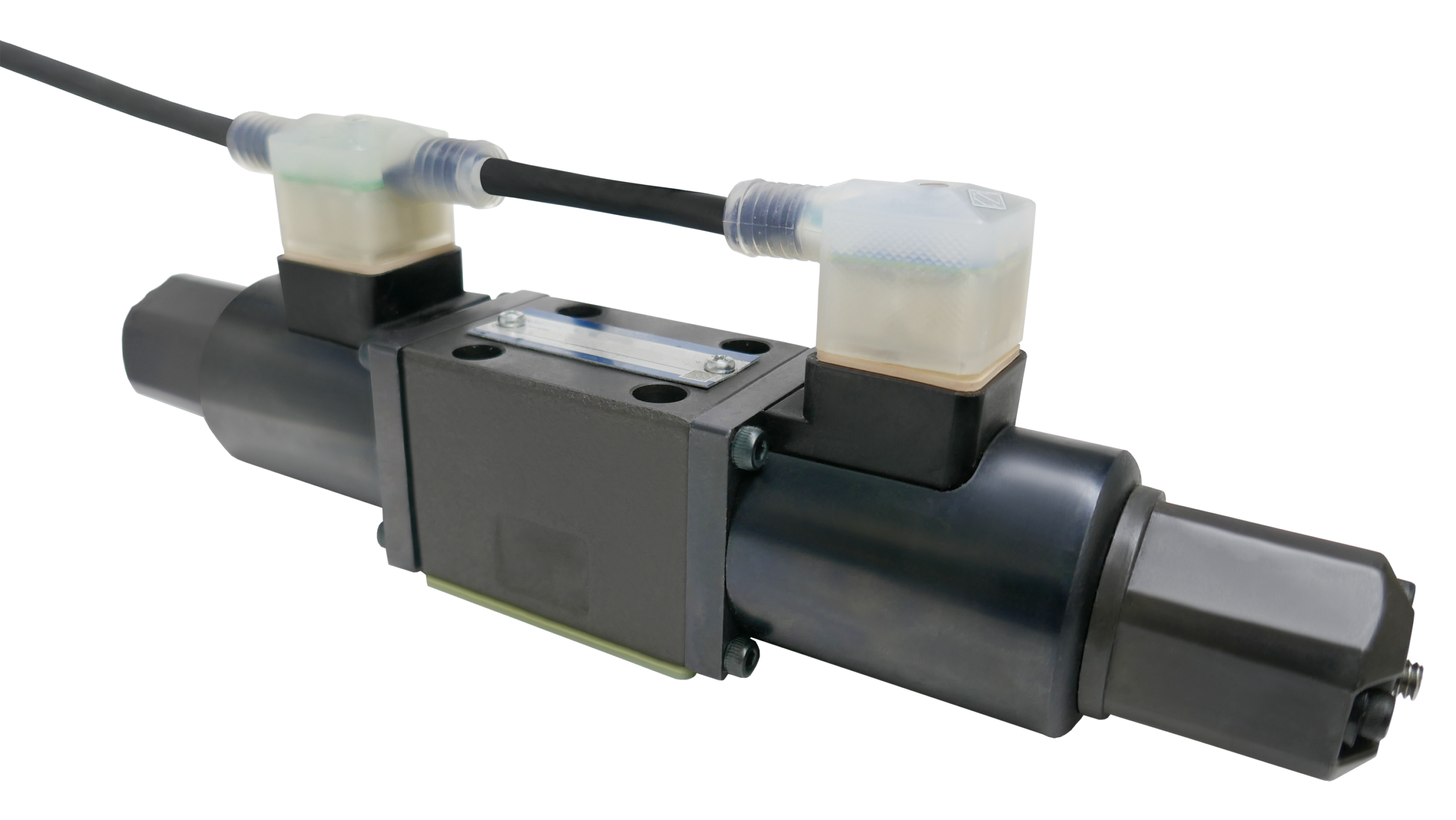

A straight-line connector may be the best option when the cable needs to route directly away from the valve. In other installations, a 90° connector may be necessary to reduce the overall footprint or avoid interference with nearby components.

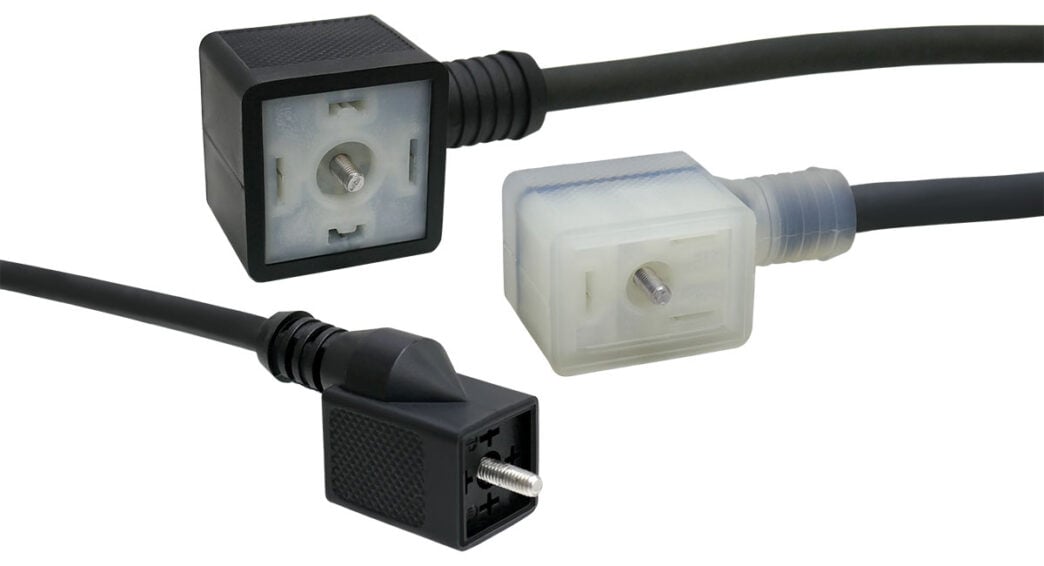

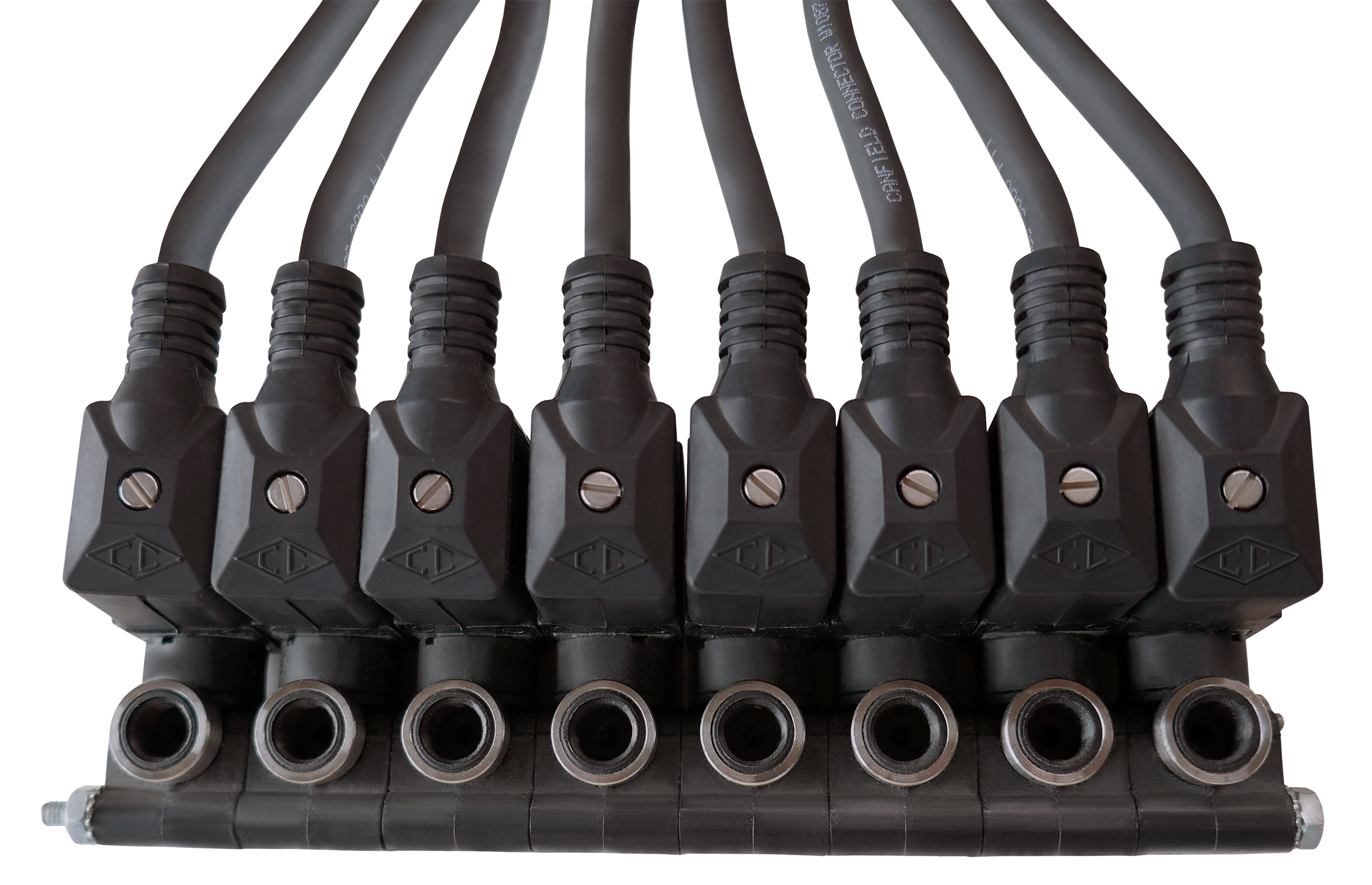

This is where Canfield Connector’s 5F and 5J Series provide practical design flexibility. The 5F Series offers a low-profile straight-line interface and cord configuration, while the 5J Series offers a low-profile 90° interface and cord configuration. Both are designed for installation in limited-space applications while maintaining an all-moulded DIN solenoid valve connector/gasket/cord assembly design.

By offering both configurations, engineers can select the cable exit style that best supports the physical layout of the machine, rather than forcing the machine design to accommodate the connector.

Environmental integrity and integrated gasket design

Environmental protection is one of the most important reasons engineers look beyond standard field-wired connectors.

In many applications, water resistance, dust protection, and gasket reliability are not optional. They are central to long-term system performance.

The 5F and 5J Series include an integrated gasket design with an IP65/NEMA 4 rating. Because the gasket is built into the assembly, it cannot be misplaced during installation or maintenance. That may seem like a small detail, but in real-world environments, lost or improperly installed gaskets can create avoidable failures.

When the connector is exposed to moisture, washdown, or dusty operating conditions, the quality of the seal becomes just as important as the electrical connection itself.

The integrated gasket also helps simplify maintenance and replacement. Technicians do not need to handle a separate gasket or worry about whether it was seated properly before the connector is returned to service.

Options for visibility, suppression, and cord durability

Solenoid valve connections also need to support troubleshooting and protection of control circuits.

Bi-directional indicator lights can help technicians quickly confirm power status and simplify diagnostics. Load suppression options can help address electrical transients associated with switching inductive loads. For equipment operating in demanding environments, these features can support both serviceability and long-term reliability.

Cord selection is another important factor. Standard cable may be sufficient in some installations, but many applications require more durability, flexibility, or compatibility with specific operating conditions.

Canfield Connector’s 5F and 5J Series are available with Hard Usage cord options in custom lengths, along with bi-directional indicator lights and load suppression. Special wire options are also available upon request, including high flex, media compatible, special use, and high temperature wire.

This level of configurability allows engineers to match the connector assembly to the application rather than relying on a one-size-fits-all approach.

Supporting OEMs and system designers

For OEMs, machine builders, and system integrators, connector decisions affect more than the electrical connection itself.

They influence installation time, field service consistency, environmental protection, cable routing, troubleshooting, and long-term equipment reliability.

Canfield Connector’s 5F and 5J Series are designed to support these needs by combining moulded construction, integrated gasket design, multiple connector sizes, straight-line and 90° cable configurations, optional lighting, optional suppression, and application-specific wire choices.

Available in Mini, ISO, and Sub-Micro configurations, these connector assemblies give engineers flexibility across a wide range of solenoid valve applications.

Connector selection as a system-level decision

The larger point is that connector selection should not be treated as an afterthought.

A solenoid valve connector affects installation, serviceability, environmental protection, wiring reliability, troubleshooting, and long-term uptime. In applications where machines are expected to run consistently under demanding conditions, these factors matter.

For design engineers and OEMs, the right connector assembly can reduce installation variability, simplify routing in tight spaces, improve environmental integrity, and support a more reliable electrical connection at the valve.

That makes the connector less of a commodity component and more of a system-level design decision.

As industrial systems continue to evolve, reliability will increasingly depend on attention to the details that are easy to overlook. Solenoid valve connectors are one of those details. Choosing a moulded connector assembly with the right configuration, protection, cord option, and diagnostic features can help prevent small connection issues from becoming larger system problems.

For engineers designing equipment for demanding environments, that is a decision worth making early.
