What is a current transducer?

3rd July 2024
Paige West

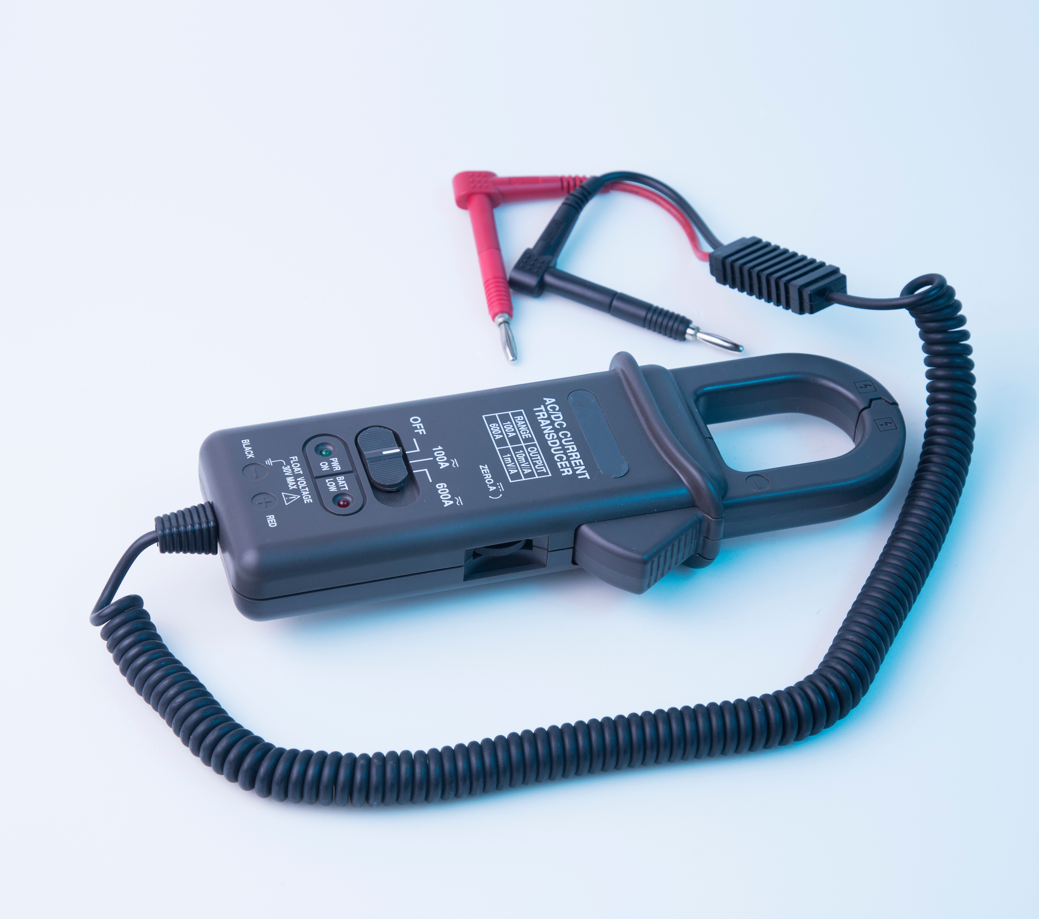

What is a current transducer? A current transducer is a device that converts an electrical current into a proportional output signal, typically a voltage or a current that can be easily measured and analysed.

These devices are crucial in a wide range of applications, from industrial automation and energy management to consumer electronics and automotive systems. Understanding the function, types, and applications of current transducers is essential for engineers and technicians working in fields that require precise current monitoring and control.

Function and operation

At its core, a current transducer functions by sensing the magnetic field generated by the current flowing through a conductor. It then converts this magnetic field into a measurable electrical signal. The transducer typically consists of a sensor element, a signal processing circuit, and an output stage. The sensor element detects the magnetic field and produces a corresponding electrical signal. This signal is then processed and conditioned to generate a stable and accurate output that represents the magnitude of the input current.

Types of current transducers

Hall effect transducers

Hall effect transducers use the Hall effect principle, where a magnetic field perpendicular to the flow of current generates a voltage across a conductor. These transducers are widely used due to their ability to measure both AC and DC currents accurately. They are also known for their robustness and ability to function in harsh environments.

Rogowski coil transducers

Rogowski coil transducers consist of a coil wound on a non-magnetic core. When placed around a current-carrying conductor, the changing magnetic field induces a voltage in the coil proportional to the rate of change of current. These transducers are primarily used for measuring AC currents and are known for their flexibility and ease of installation.

Current transformers (CTs)

Current transformers operate on the principle of electromagnetic induction. They have a primary winding through which the current to be measured flows and a secondary winding that produces an output proportional to the input current. CTs are commonly used for high current measurements and are widely utilised in power distribution systems.

Shunt resistor transducers

Shunt resistor transducers measure current by passing it through a precision resistor (shunt) and measuring the voltage drop across it. The voltage drop is directly proportional to the current flow, allowing for accurate current measurement. These transducers are typically used for low to medium current measurements.

Applications of current transducers

Current transducers find applications across various industries due to their versatility and precision. Some common applications include:

Industrial automation

In industrial settings, current transducers are used to monitor and control the current in motors, drives, and other electrical equipment. They help in ensuring efficient operation, preventing overloads, and enabling predictive maintenance.

Energy management

Current transducers are essential for monitoring electrical energy consumption in buildings and industrial facilities. They provide real-time data on current flow, which can be used to optimise energy usage and reduce costs.

Renewable energy

In renewable energy systems, such as solar and wind power installations, current transducers monitor the output current from generators and inverters. This information is critical for efficient energy conversion and grid integration.

Automotive systems

In the automotive industry, current transducers are used in electric and hybrid vehicles to monitor battery currents, motor currents, and charging systems. They ensure safe and efficient operation of the vehicle’s electrical systems.

Consumer electronics

Current transducers are used in a variety of consumer electronic devices to monitor and control the current flow, ensuring proper functioning and safety.


Current transducers are indispensable tools in modern electrical and electronic systems. They provide accurate and reliable current measurements, enabling efficient operation, safety, and optimisation of various applications. As technology advances, the role of current transducers in ensuring the seamless functioning of complex electrical systems continues to grow, making them a cornerstone of modern engineering and technology.
