EA Elektro-Automatik announces triple output battery testing

23rd May 2023
Sheryl Miles

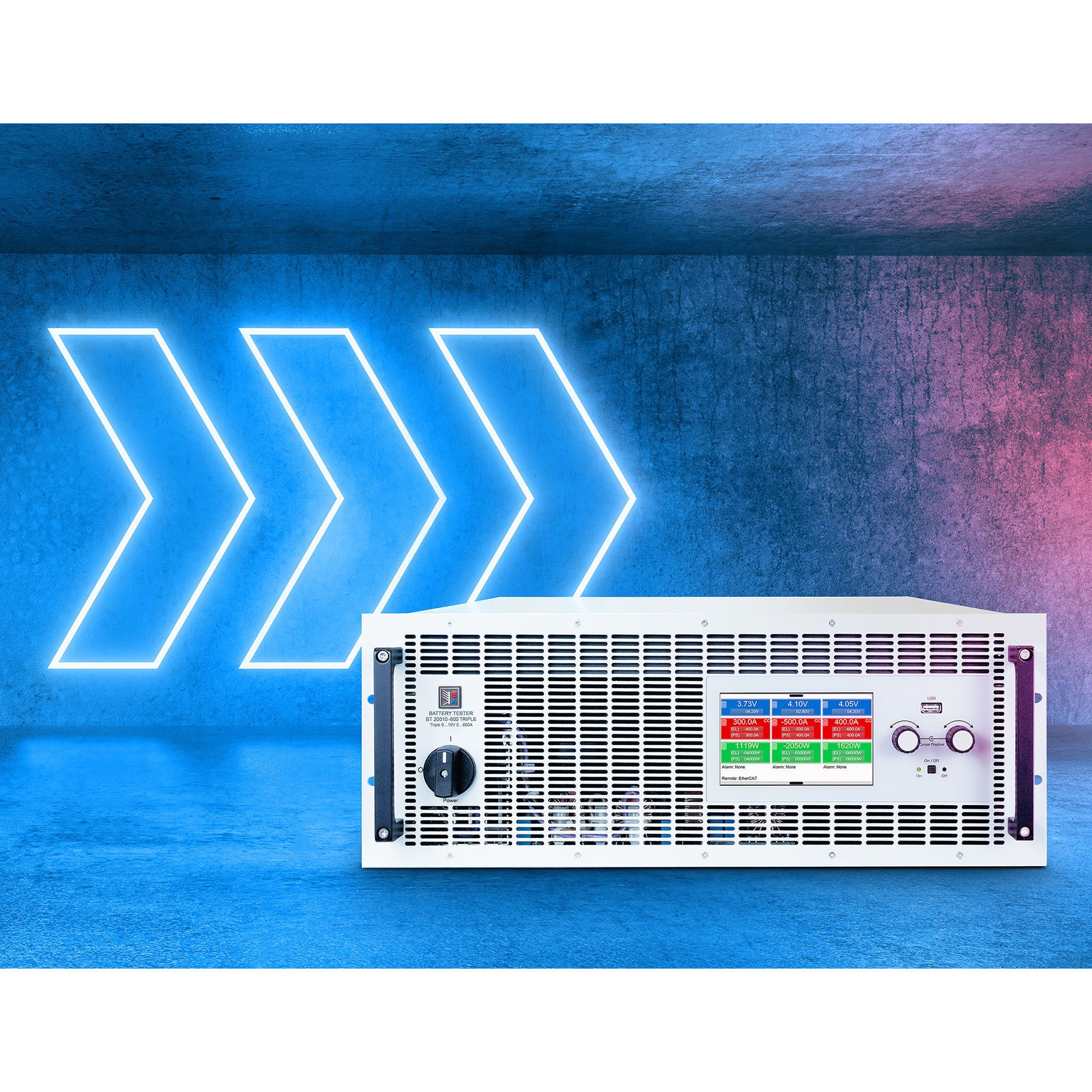

EA Elektro-Automatik, a worldwide manufacturer of DC power supplies for R&D and manufacturing, a specialist manufacturer of DC programmable power supplies, bidirectional power supplies, and regenerative loads, introduces the EA-BT 20000 Triple Battery Tester, the battery tester instrument with three channels and high voltage and current outputs.

Power battery testing instrument

The new instruments can test up to three battery cells, modules, or packs simultaneously with the power capacity of 4, 6 and 10kW/channel. Furthermore, to test higher capacity batteries, the channels can be paralleled to test 12, 18, and 30kW battery packs. The EA-BT 20000 Triple series consists of eight models with voltage outputs from 10 to 920V and current outputs/channels of 40 to 600A. Unlike other battery testing instruments on the market, one EA-BT 20000 can continuously deliver three channels of 600A or a single channel supplying 1800A.

Extensive applicability

The EA-BT 20000 Triple Output Battery Testers address the full range of the battery life cycle from materials research to battery development, manufacturing, incoming inspection, and second-life battery recycling. The EA-BT 20000 can test individual cells, battery modules, and large battery packs for basic research and industries, including the automotive industry, the aerospace/defence industry, and consumer renewable energy systems.

A flexible integrated solution for easy system integration

The EA-BT 20000 battery testers include all the functionality, in one instrument, to charge and discharge high power battery packs for battery testing, battery simulation, and battery recycling. The testers measure parameters such as battery State-of-Health (SOH) and End-of-Life (EOL). The testers also include controls for external circuit breakers and other safety features to monitor and protect the battery-under-test.

The EA-Power Control and EA-Battery Simulator software packages enable automated tester control and allow test configuration and sequencing without requiring the use of a programming language.

To enable software development in custom systems, EA offers driver support that includes IVI drivers and NI LabView drivers. In addition, the EA-BT 20000 can interface to either a PC with SCPI commands or a programmable logic controller (PLC) with ModBus commands. All models in the family have an identical programming interface to save development time when a system requires multiple models. Standard interfaces include USB, Gb/s Ethernet, EtherCAT, and CAN FD. With CAN FD, the battery tester conveniently interfaces with automotive test stands.

For system integrators, EA provides 3D models as step files to facilitate the design of complete battery testing systems. Furthermore, the compact 4U enclosure helps to minimise test rack size. Along with expert applications support, the system integrator can cost-effectively build EA-BT 20000s into battery testing systems with any capacity.

Triple turbo performance for the highest throughput

With three channels, the EA-BT 20000 battery testers can simultaneously test three batteries. Thus, these instruments can maximise throughput compared with single-output instruments, allowing manufacturers to reduce test costs and save on capital costs for instrumentation.

In addition, the EA-BT 20000 processes commands and performs readings at the fastest control speed of 1ms. Combined with the latest versions of the interfaces, EtherCAT, CAN FD, and Gb/s Ethernet, the EA-BT 20000 further optimises throughput.

Capacity to 1.92 MW for large systems

For large battery systems, up to 64 battery testers with 30kW capacity can test a system with as high an output as 1.92MW. A Master-Auxiliary bus creates a multi-instrument system that operates like a single instrument. The single master instrument controls all other instruments and displays total power, total current, and individual instrument warnings and alarms. A second bus, the Share-Bus, ensures that each instrument safely carries an equal portion of the total load.

Other configurations of testers can create a system that can test high-voltage battery packs with voltages up to 2,000V. EA-BT 20000 systems offer a wide range of performance with high voltage and current.

High efficiency for energy savings

When acting as a load to test the battery or to discharge the battery, EA battery testers can return approximately 96% of the absorbed energy back to the power grid, one of the highest efficiency available.

As a result, the EA-BT 20000 can save significant kilowatt-hour consumption and enable the instruments to pay for themselves. In addition, when supplying power, the battery testers have active power factor correction, typically 0.99, and high-efficiency switch-mode supply circuitry to optimise power delivery efficiency.

Wide-ranging voltage and current capacity

EA Elektro-Automatik employs true autoranging in its battery testers to provide wide output and input ranges for both voltage and current. True autoranging allows sourcing and sinking at full power over the full voltage output range. One battery tester can test a wide range of battery pack voltage and current combinations with one instrument compared with other manufacturers needing either two instruments or a higher power instrument to address the full range of a battery pack’s output.

Complete solution for battery test and recycling

The EA-BT 20000 Triple is a fully integrated battery tester. It has the highest power capacity to test a wide range of cells, modules, and battery packs. The EA-BT 20000 is the complete solution to enable the development, testing, and recycling of current and future battery technologies and battery capacities.

A single-channel version of the EA-BT 20000 is also available for applications requiring less capacity. The single-channel version has all the safety and high-speed communication advantages of the triple output instrument but with up to 2000V and 1000A output.
