Optimising pressure sensors for HVAC systems
Building operations account for 30% of global final energy consumption, with almost half of this energy demand used for space and water heating according to statistics from the International Energy Agency.
Businesses are increasingly looking to cut down energy consumption, driven by cost, sustainability initiatives, or a combination of the two. Here, Richard Mount, Director of Sales at custom IC company Swindon Silicon Systems, explains how building smarter ASIC-optimised HVAC systems can help.
Industrial, business, and residential sectors all have one thing in common; the need for heating and cooling. Whether it’s a chemical storage area requiring consistent temperature and complex filters or an office block with hundreds of employees working throughout the day, maintaining temperature control is essential within any operation.

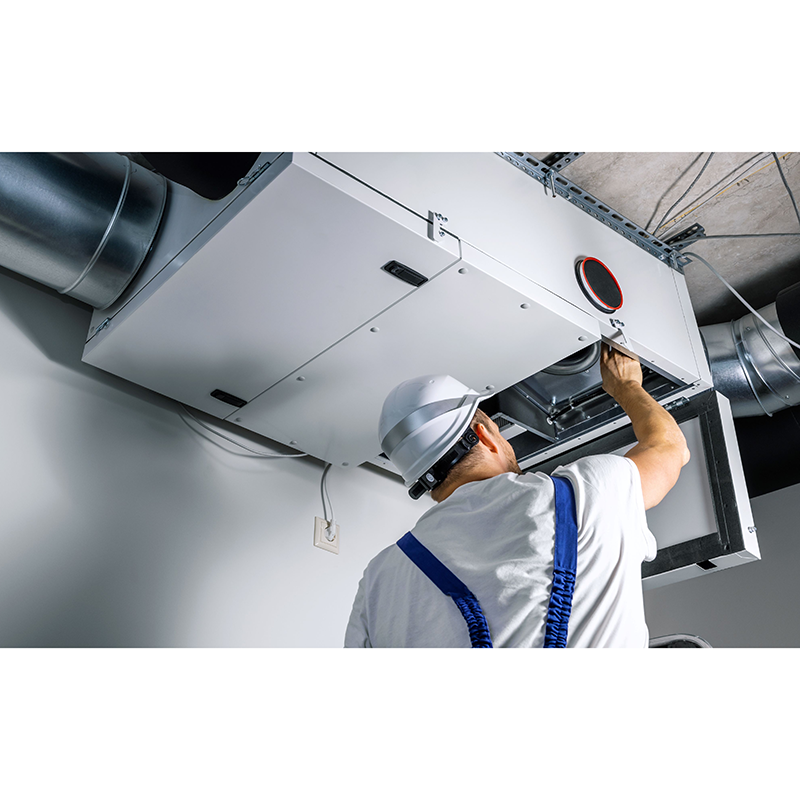

To achieve this, a HVAC system can be used. These play host to a variety of sensors, depending on individual system requirements and complexity. Take pressure sensors, for example. These are responsible for monitoring air pressure levels across filters and other devices to ensure the HVAC system is functioning correctly, and to alert technicians in case of filter blockages or more serious issues.
Compressors for cooling functionality
The air conditioning unit within a HVAC system will typically rely on the use of refrigerants for space cooling. Warm air is drawn in over a set of coils containing the refrigerant, which absorbs this heat. The refrigerant is then compressed into a hot, high-pressure gas, and passed onto the condenser unit where this heat energy can be released.
Pressure sensors can start or stop the compressor based on the internal pressure values measured to ensure the system runs smoothly and efficiently. But they also fulfil a crucial safety check.
Tiny holes or cracks in the coil can result in refrigerant leaks. Depending on the severity of the leak and the nature of the refrigerant, these can be hard to detect by sight or by smell, and the system may overwork itself to compensate. Ample supply of the refrigerant is crucial to keeping the AC system running, but any leaks could also represent a potential safety hazard. Common refrigerants such as Freon can be harmful, particularly in high concentrations or in small, confined spaces. As a result, pressure sensors may be utilised here to monitor the condition of the compressor, and to flag up potential drops in pressure that could signify a hazardous leak.
Fine-tuned temperature control
Another example that makes use of pressure sensor technology is the variable air volume (VAV) system, which supplies a changing airflow volume rather than a constant air volume (CAV). VAV systems use additional sensors at the inlet to open or close internal dampers and therefore adjust the airflow. These adjustments can be made based on a variety of control parameters, in comparison to a CAV system that can only operate in constant, maximum, or an “off” state. The result of this is a more fine-tuned approach to temperature control with VAV. Furthermore, the varying airflow also makes use of lower fan speeds, resulting in quieter operation as well as reduced energy consumption.
Because the VAV system offers more sophisticated control, it’s possible to integrate the HVAC system with additional devices to unlock extra benefits. For example, combination with occupancy sensors could allow the HVAC system to adjust between ideal temperature levels depending on the real-time usage of the space.
At its core, a pressure sensor is comprised of the sensing element, processing unit and a communication module. The signal measured by the sensor will normally be in an analogue form and must be conditioned and digitised before processing or being communicated to other devices.
It is possible to obtain standard off-the-shelf ICs with the basic functionalities to perform this task of signal conversion. But for an optimised system that sets itself apart from the competition, it’s often preferable to use an Application Specific IC, or ASIC.
An ASIC is a bespoke chip designed specifically for its application – in this case, its specific role within elements of the HVAC system. Offering sensor-specific integration, ASICs offer improved performance over their commercially available alternatives as well as reduced power consumption due to performance optimisation.
ASIC integration also offers the benefit of system calibration. Calibrated data can be stored in onboard OTP/flash memory, allowing for the calibration of individual sensors and correction of raw pressure data. This ensures precise measurements even over extended operating periods and helps to maintain the efficiency and reliability of the HVAC system overall.
When it comes to off-the-shelf ICs, obsolescence can be an area for concern. Standard chip manufacturers may cease production at any time, whether it’s the result of a particular silicon process becoming obsolete or a significant drop in IC sales volume. In contrast, ASICs are designed with non-obsolescence in mind.
Choice of silicon process is made with careful consideration to the supply and longevity required by the product. And in the case that the process does become obsolete sooner, solutions will be presented to the customer in ample time to ensure a continuous supply. This could include the purchase of LTB wafers or porting the design onto a new process altogether. Working with an experienced ASIC supplier such as Swindon means that customers are involved and guided through the decision-making process, resulting in the creation of a complete non-obsolescence plan.
HVAC systems can be found in a variety of environments, be it industrial, commercial, or residential. Regardless of its final installation point, it’s crucial that the HVAC system offers the same high level of performance to whoever it serves. By optimising the design right from chip level, unit manufacturers can guarantee their system offers a performance a cut above its competition.
