In the world of connected devices, one truth stands firm: even the smartest technology fails if it can’t survive the environment it’s built for. Rain, dust, vibration, UV, these forces don’t care how elegant your circuitry is.

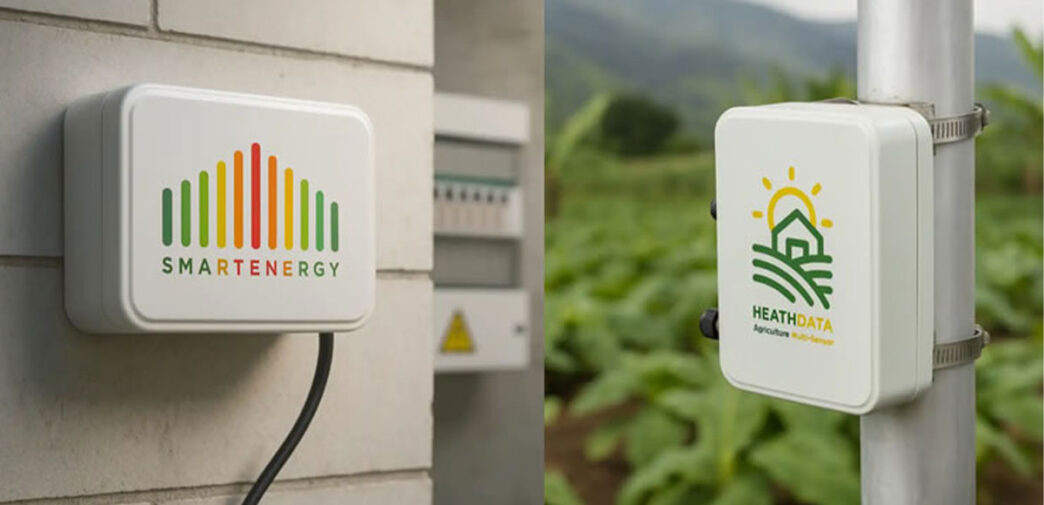

To meet these demands CamdenBoss has created Node & Hub, a new family of enclosures engineered not just to protect electronics, but to make every installation faster, cleaner, and smarter.
They are available from authorised distributor Anglia Components.
Built from tough, fire-rated and UV resistant polycarbonate, the Node & Hub series are sealed to IP66/IP67 standards in accordance with IEC 60529. They are rated for complete dust protection and waterproof against powerful jets and immersion up to 1 meter depth and tested to IK08 impact resistance in accordance with EN60068, ensuring resistance against up to 2 joules of mechanical impact and shock.
In other words, they’re designed to thrive where your electronics need them most, whether that’s outdoors
The Node enclosure is purpose built for today’s compact smart devices, sleek, low profile, and beautifully clean faced. Its minimalist front surface stays completely uninterrupted thanks to cleverly hidden rear-mounted screws, giving designers a pristine canvas for branding, displays, or user interfaces.
Engineered for versatility, these enclosures come in four optimised sizes, 105×105×40mm, 135×95×40mm, 155×115×40mm, and 180×140×45mm, ensuring there’s a perfect fit for sensors, control modules, and IoT innovations of every kind.
Each enclosure is moulded in a refined grey RAL 7035 and built to perform in demanding environments, with an impressive operating temperature range from –40 °C to +110 °C.
The Hub is the Node’s larger, more capable sibling, built for projects that demand extra space, extra power, and extra versatility.
With its deeper, more spacious profile, the Hub is purpose designed to house gateways, power electronics, or full DIN rail assemblies without compromise. Inside, users will find thoughtfully placed fixing points that make mounting hardware effortless, while the removable screw covers keep the exterior clean, neat, and installation friendly. It’s engineered not just for capacity, but for organisation and professionalism.
Available in two generously sized formats, 105×105×80mm and 162×162×80mm, the Hub’s 80mm depth gives designers the freedom to integrate more complex circuitry, stacked boards, or bulkier components with confidence.
Each enclosure is moulded in RAL 7035 grey and built to endure challenging conditions with an operating temperature range of –40 °C to +110 °C.
Robust, refined, and ready for demanding applications, the Hub brings strength and space together in one smart enclosure.
Both Node and Hub enclosures are built on a shared philosophy: maximum usability with zero unnecessary fuss. Every detail is engineered to make installation smooth, intuitive, and frustration free. Mounting brackets snap neatly into place with a reassuring click.
Brass inserts offer rock solid fastening that lasts the entire lifetime of the product, no wear, no wobble, no compromises. Inside, the layout is intelligently structured to make every millimetre count, giving your electronics the space and clarity they deserve.
Dedicated pole mount kits, tailored to each enclosure size, ensure a reliable, professional fit. Both families also feature a clever concealed bracket fixing system, allowing them to be mounted without ever having to drive a screw through the enclosure body. That means the IP seal remains uncompromised, and the installation stays clean and secure.
Once the brackets are fixed in place, the enclosure simply slides over them, hiding all fixings from view and delivering a smooth, uninterrupted finish.
