New UWB tracking antenna arrays from Aaronia

16th May 2024
Harry Fowle
0

The demands on measurement equipment are constantly increasing. To meet the growing demand for broadband signal-tracking antennas, Aaronia has added four new models to its IsoLOG series, which now consists of six antennas.

The IsoLOG 3D DF 160-8 and the IsoLOG 3D DF 80-8 have already been in the range for some time. New additions are the IsoLOG DF 16-10180 and the IsoLOG DF 16-20400, both of which are available as directional 2D or 3D UWB tracking antenna arrays.

The 3D RF tracking antennas track RF positioning in three dimensions via a high-density, customizable antenna array with up to 32 antennas for azimuth and elevation information. Compared to the two known types with a frequency range of 400 MHz - 8 GHz, this has been drastically extended in the new models. The two IsoLOG DF 16-10180 models have a frequency range of 1 GHz - 18 GHz, while the IsoLOG DF 16-20400 can target signals between 2 GHz - 40 GHz.

In combination with the new real-time direction finding, the IsoLOG DF/3D DF antenna arrays are predestined for the detection and localization of almost all signals within the respective frequency range. Even the shortest signal pulses in the microsecond range are reliably detected and can therefore be located. This enables extremely reliable interference suppression of signals, especially from ultra-wideband systems (UWB) or radar systems. These are generally invisible to most direction-finding systems, which operate significantly slower.

This is caused by the high bandwidth of UWB transmission signals combined with extremely short pulse times. The bandwidth of a UWB signal is at least 25% of the centre frequency of the transmitter. A centre frequency of 2 GHz has a bandwidth of 500 MHz. The minimum bandwidth of a UWB signal with a centre frequency of 4 GHz is therefore 1 GHz.

Thanks to its extremely high direction-finding accuracy of up to 1° when using the SPECTRAN real-time spectrum analyzers, the IsoLOG 3D DF series is also the ideal solution for frequency monitoring or drone detection systems. The 360-degree coverage is achieved without mechanical rotation of the antennas, resulting in extremely short tracking speeds of up to 8 μs. The wide frequency range of the IsoLOG 3D DF 16-20400 in particular eliminates the need for multiple antenna setups and saves space and system costs.

Powerful triangulation solutions can be set up by interconnecting several antenna sites and cascading the downstream hardware and software accordingly. Various RF-over-fibre transmission links are also available, which are required to bridge larger distances between the individual system locations. This allows large-area protection zones to be created, which are essential for protecting critical infrastructure, for example.

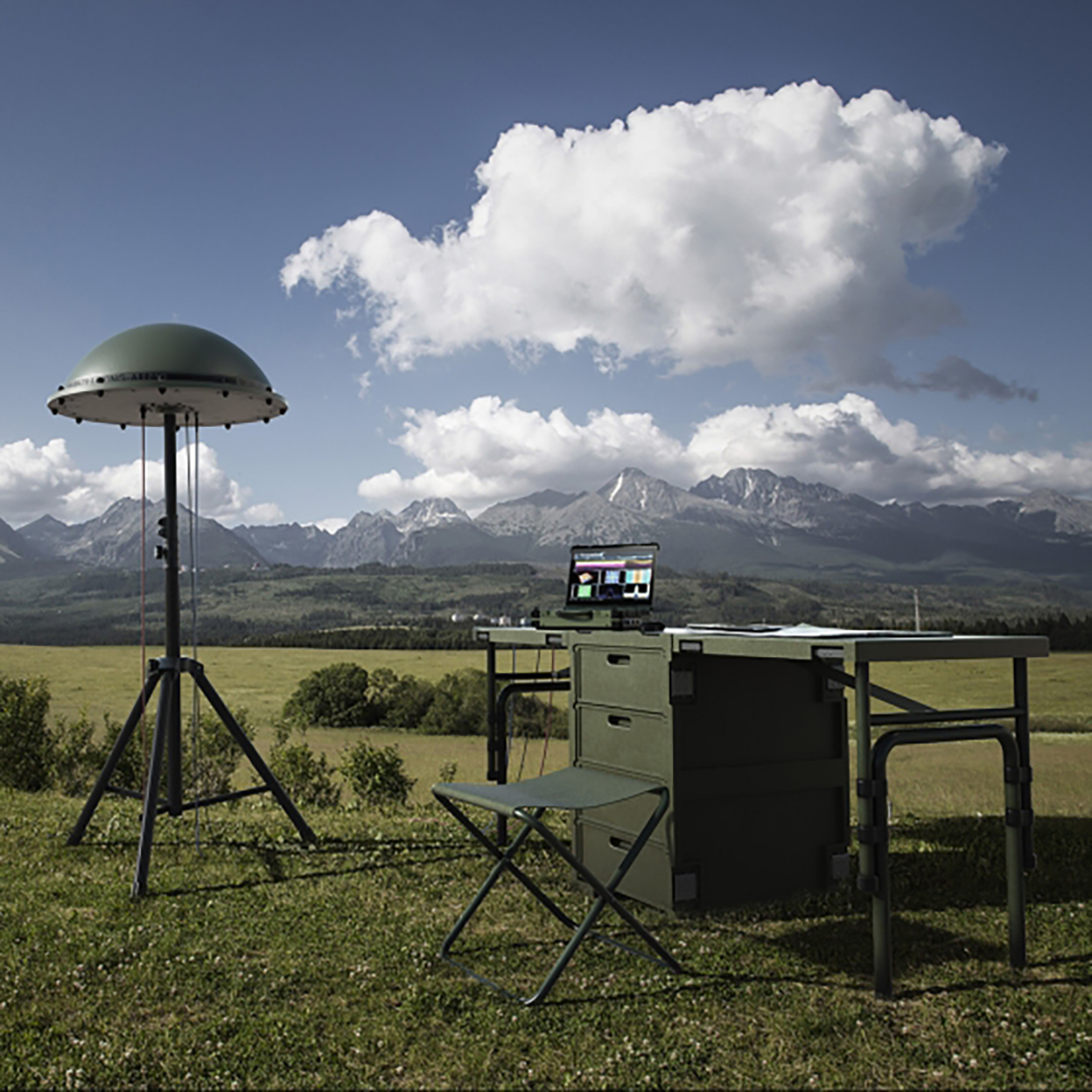

Each IsoLOG 3D DF is supplied with a robust radome. It is IP65 certified, shockproof, heat-resistant and designed to withstand the most adverse conditions.

The IsoLOG 3D DF80-8 and 3D DF160-8 are available immediately. The IsoLOG 3D DF16-10180, IsoLOG 3D DF16-20400 and the IsoLOG DF16-10180 and IsoLOG DF16-20400 models are expected to be available from Q3 2024.
