New SPI absolute encoder supports 9mm to 15.875mm motor shafts

The AMT25 series, based on Same Sky’s proprietary capacitive ASIC technology, brings the same high levels of durability, accuracy, and immunity to environmental particulates as current AMT encoder models. Outputting 12 bits or 14 bits of absolute position information with single-turn or multi-turn output options, the AMT25 utilises full duplex serial peripheral interface (SPI) communication for high accuracy position data.

Offering radial or axial cable connections, this absolute encoder series is housed in a compact modular package with a locking hub for ease of installation. It boasts low power consumption of 16mA at 5V, a wide operating temperature range from -40 to 105°C, and high accuracy of ±0.2 mechanical degrees. The digital nature of the AMT25 series also allows users to set the zero position via Same Sky’s AMT Viewpoint GUI or the encoder’s SPI protocol (single-turn versions only).

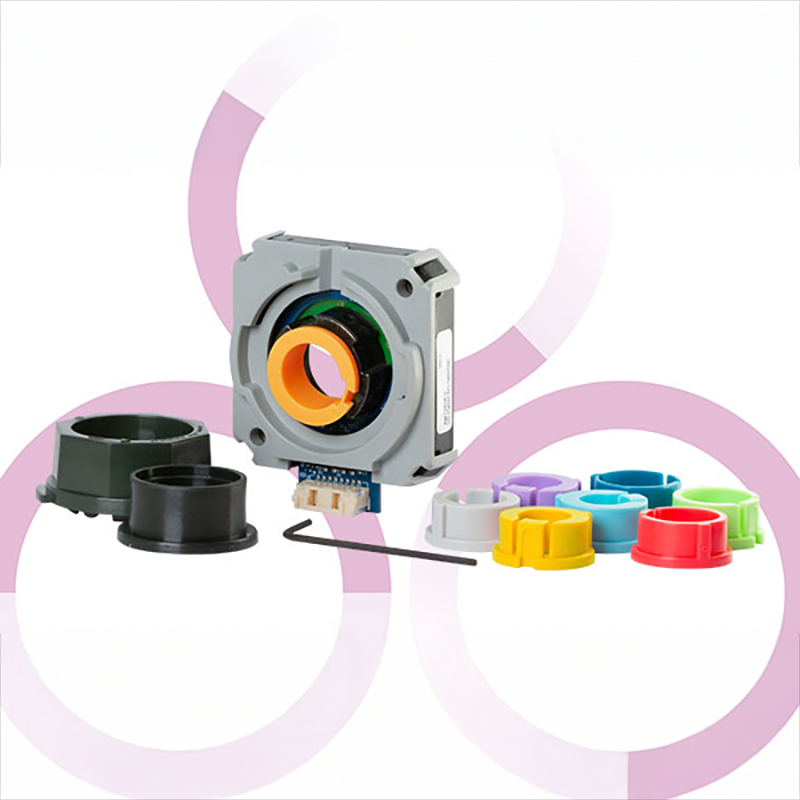

The AMT25-V kit affords users further flexibility in their design with the support of nine different sleeve bore sizes from 9mm to 15.875mm and simple mounting tools under a single SKU.

The AMT25 encoder models are available immediately with prices starting at $50.31 per unit at 50 pieces through distribution.

Summary

• Product name: AMT25 Series, AMT25-V Kit
• Availability: stock to eight weeks
• Possible users: industrial, robotics, battery-powered, automation applications
• Primary features: supports shaft sizes from 9mm to 5/8”, SPI communication
• Cost: $50.31 per unit at 50 pieces through distribution
