Encapsulated versions are available with constant voltage or constant current limiting characteristics as well as a constant voltage open frame type with 12 or 24VDC output.
The RAC20NE-K/277 series is highly efficient, allowing reliable operation at full load to 60°C ambient, and to 85°C with derating. The parts are Class II insulated, OVC III rated to 3,000m altitude (OVC II/5,000m), and meet EN 55032 ‘Class B’ EMC requirements with a floating or grounded output. Standby and no-load power dissipation meet Eco-design requirements.

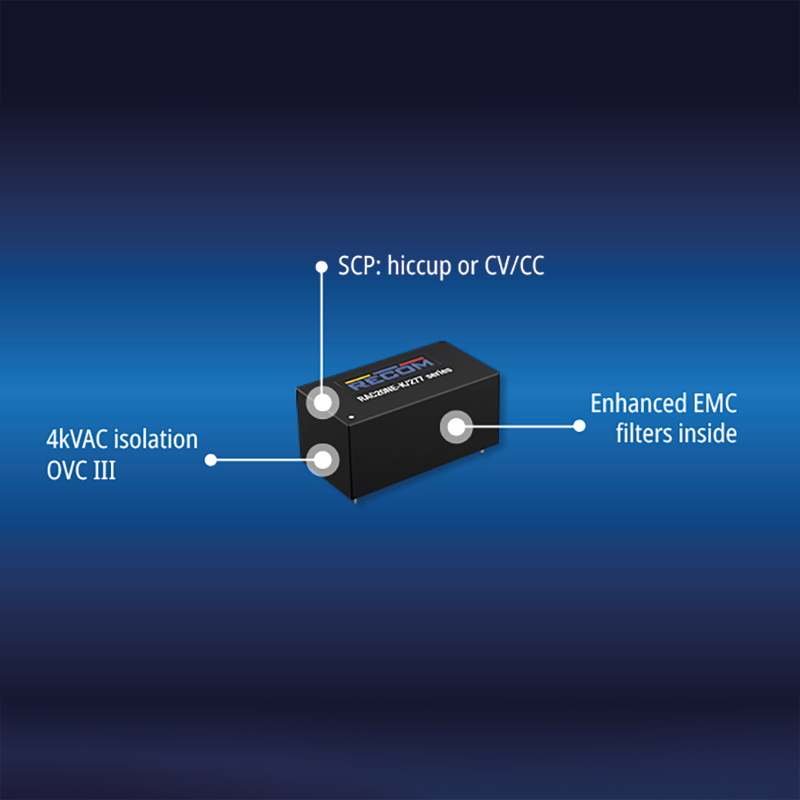

The RAC20NE-K/277 board-mount, encapsulated parts are sized 52.5 x 27.6 x 23.0mm while the open frame parts with Molex connections are just 80.0 x 23.8 x 22.5mm.
“These parts are an ideal solution for the expanding new energy market where low cost, wide input range, and high transient immunity are requirements” comments Michael Schrutka, MSc. AC/DC Product Manager of RECOM. “They will typically find use in energy management, monitoring, and powering actuators, as well as in general purpose applications.”
Parts include a three-year warranty. Samples and OEM pricing are available from all authorised distributors or directly from RECOM.
