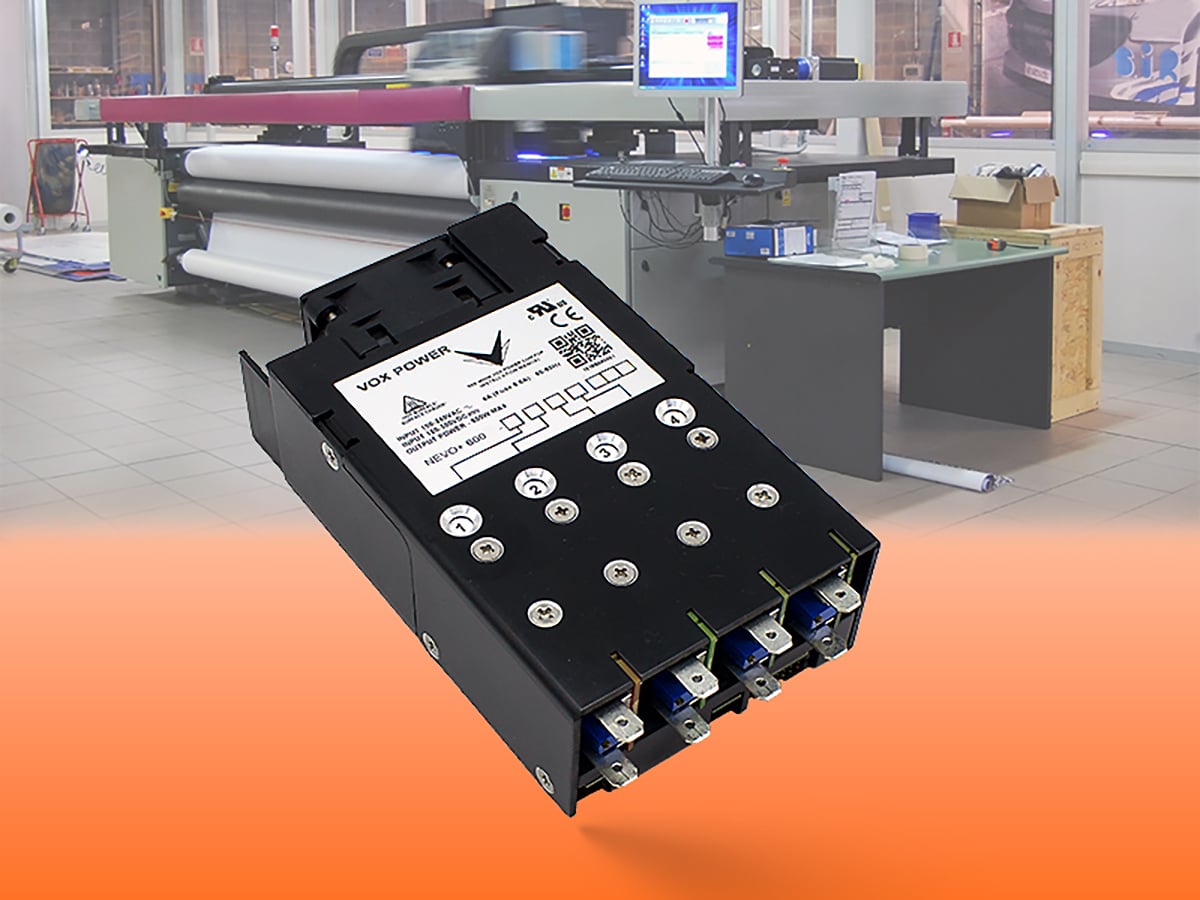

NEVO+600S industrial modular power supply

23rd November 2023
Harry Fowle
0

Relec Electronics has announced the availability of the NEVO+600S industrial modular power supply.

Relec Electronics’ delves into the features and benefits of the NEVO+600S modular power supplies, demonstrating why they are an essential component for demanding modular industrial applications.

Compact design, maximum efficiency

With a footprint of just 5” x 3” x 1.61”, it is one of the smallest in its class, yet it delivers a formidable 600 Watts of power spread across up to 8 isolated outputs. This equates to a power density of 25 Watts per cubic inch, a testament to Vox Power's commitment to high-density power solutions. The compact size does not come at the expense of performance, making the NEVO+600S an ideal solution for applications where space is at a premium.

Modularity and flexibility

Flexibility is at the heart of the NEVO+600S design. The input module can accommodate up to four isolated output modules, allowing for configurations as a high-power single output power supply or a multiple output supply with up to 8 isolated outputs. This modularity ensures that the NEVO+600S can adapt to a variety of power requirements, making it a versatile choice for a wide range of industrial applications.

Intelligent features for enhanced performance

The NEVO+600S series is equipped with intelligent fan control, which optimises airflow based on load and temperature conditions, ensuring efficient cooling and enhanced reliability. The wide output voltage adjust range, along with options for constant current or voltage operation, parallel and series connection of modules, and series tracker and I2C options, underscore the power supply's adaptability.

Quiet operation

Understanding the need for quiet operation in certain environments, Vox Power offers a low noise fan option for the NEVO+600S series. This feature allows the power supply to be used in noise-sensitive areas without compromising on performance.

Safety and standards compliance

Safety is paramount in industrial settings, and the NEVO+600S series is approved to the latest safety and industrial standards, including EN/UL62368-1 2nd & 3rd Edition. This compliance ensures that the power supply is not only powerful and efficient but also meets rigorous safety criteria.

Specifications at a glance

  • AC input voltage: 85 – 264 VRMS
  • Size: 3 x 5 x 1.61 Inches
  • Power rating: 600 Watts
  • Efficiency: Up to 90%
  • Power factor: 0.99
  • Holdup: 20mS
  • Ambient operating temperature: -20°C To 70°C (Derating above 50°C)
  • Input leakage current: < 1500uA

Output options for every need

The NEVO+600S series offers a range of output options to cater to various power needs:

  • OP1: 1.5V-7.5V, 25A, 125W
  • OP2: 4.5V-15V, 15A, 150W
  • OP3: 9V-30V, 7.5A, 150W
  • OP4: 18V-58V, 3.75A, 150W
  • OP5: Dual 3.3V-15V, 5A, 2 x 75W
  • OPA2: 4.5V-15V, 25A, 300W
  • OPA3: 9V-30V, 15A, 300W
