Compact half-rack mil grade UPS system offers a lightweight solution

3rd February 2023
Harry Fowle

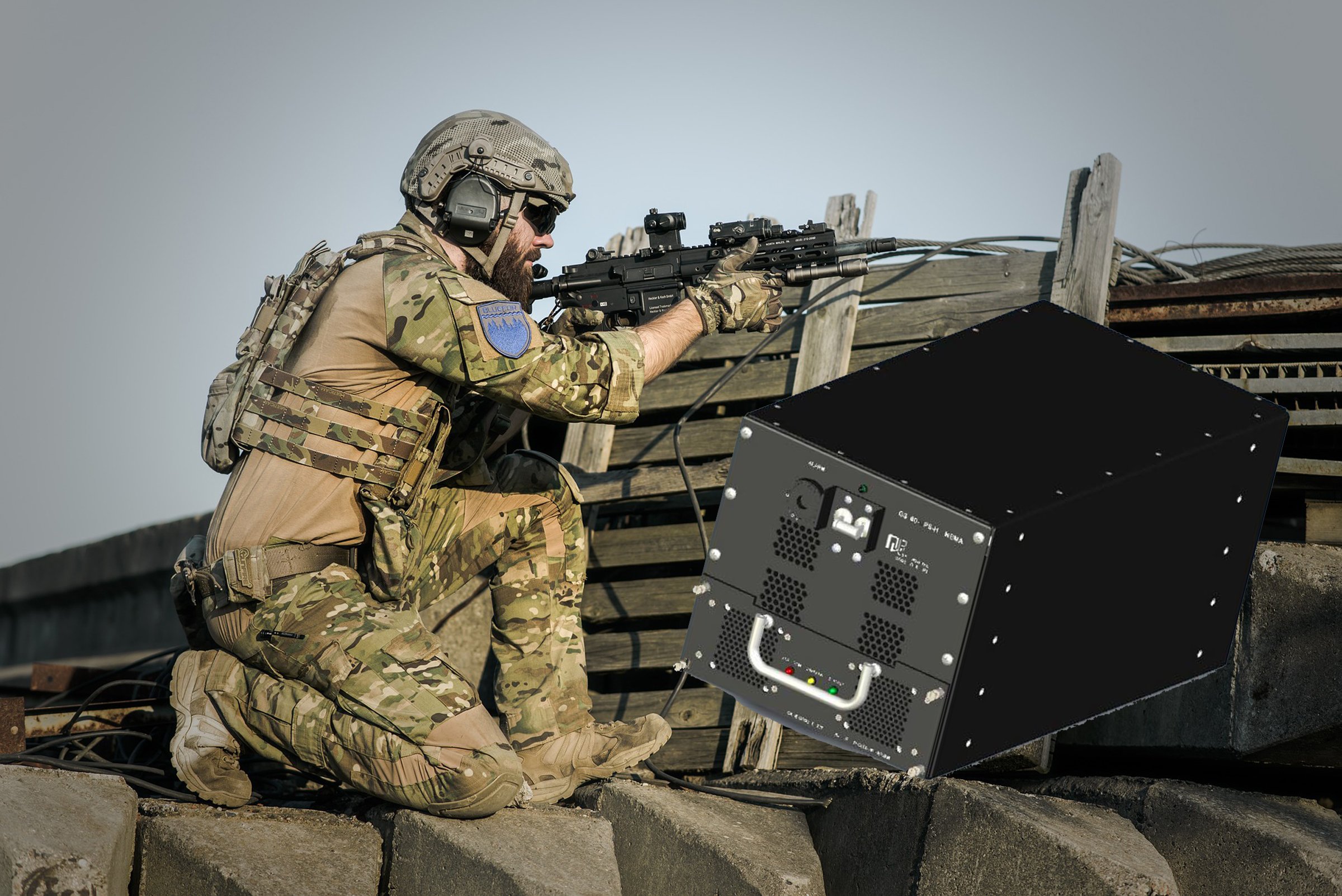

The PG-3000-UPS -HR adds to the Powergrid range of Mil grade UPS products from AJ’s Power Source available via Luso Electronics.

This unit offers a run time of approx. 14 minutes at 2.4kW with a significant size reduction over a standard 19” rack system, the unit is 9.37” wide, 8.68” tall, and 18” long. Mounting brackets are an optional extra. The unit is designed to meet MIL-STD-461F and MIL-STD-810G and comes as standard with IEC NEMA connectors, Mil std circular connectors are also an option.

Mike Henderson of AJ’s Power Source advises that they have been “getting a lot of interest from Army communication customers for smaller, more powerful systems mounted in mobile transit cases. To my knowledge, this is the most powerful half-rack military UPS in existence, it’s also just been selected for a major US-based program.”

Key features:

  • Voltage input range: 90-264V/AC
  • Frequency range: 47-63Hz
  • Inrush current: 50A
  • Battery output: 48V/DC
  • Battery capacity: 15Ah
  • Weight: ~27Kg
  • Power factor: 0.98 (based on full load)
  • Efficiency: >80%
  • Operating temperature: -20 to +50°C
  • Storage temperature: -40 to 65°C
  • Standards met: MIL-STD-810G and MIL-STD-461F

As usual with products from AJ’s Power source, they can offer custom units to meet your specific preferred requirements.

Our product specialists are on hand to assist with product selection and guide you through the design cycle. We offer technical and commercial support.

Please contact us to arrange a quote, discuss your application or request more information.
