The innovative design provides high efficiencies up to 89% and thus enable an operating temperature range from –40 up to +75°C without derating. The approvals according to standards EN 50155 and EN 61373 qualify them for railway and transportation systems. Additional qualification for the fire behaviour of components according to EN 45545-2 and the safety approval according IEC/- EN62368-1, UL62368-1 support a potential compliance test of the application. Built-in features like input under-voltage-lockout, short circuit protection, and remote on/off make this series suitable for almost any application demands and thus facilitate the design-in process.

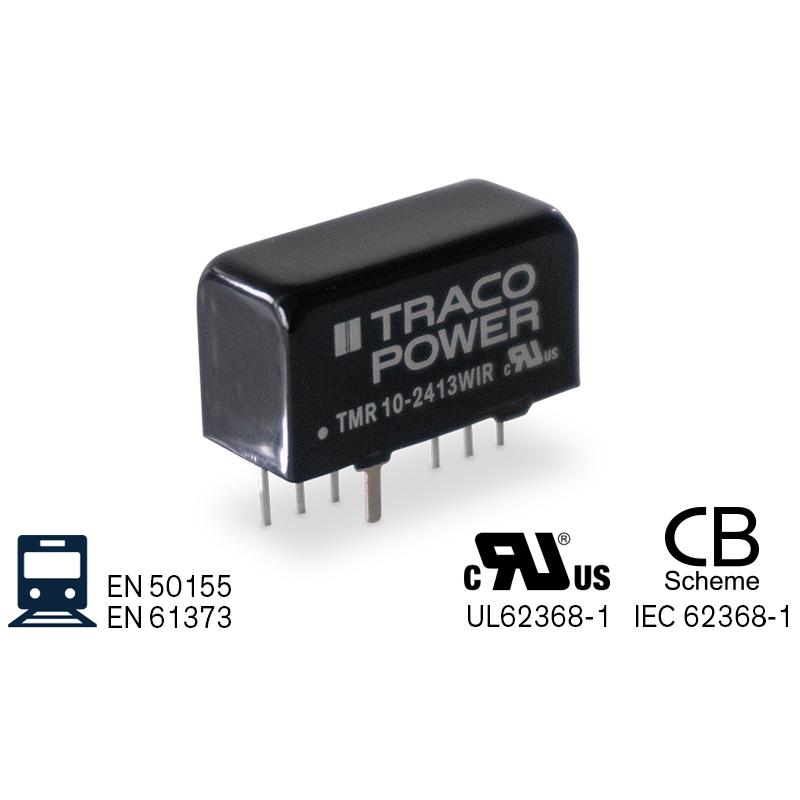

- Compact SIP-8 metal case
- EN 50155 and EN 61373 approval for railway applications
- Qualification for fire behaviour according to EN 45545-2
- Wide 4:1 input voltage: 9-36, 18-75, 36-160VDC
- Operating temperature range –40°C to +75°C without derating
- I/O-isolation 3‘000 VDC
- High efficiency up to 89%
- Protection against overload, and short circuit
- Remote on/off function
- 3 year product warranty
