240W UPS module

13th January 2023
Sheryl Miles
0

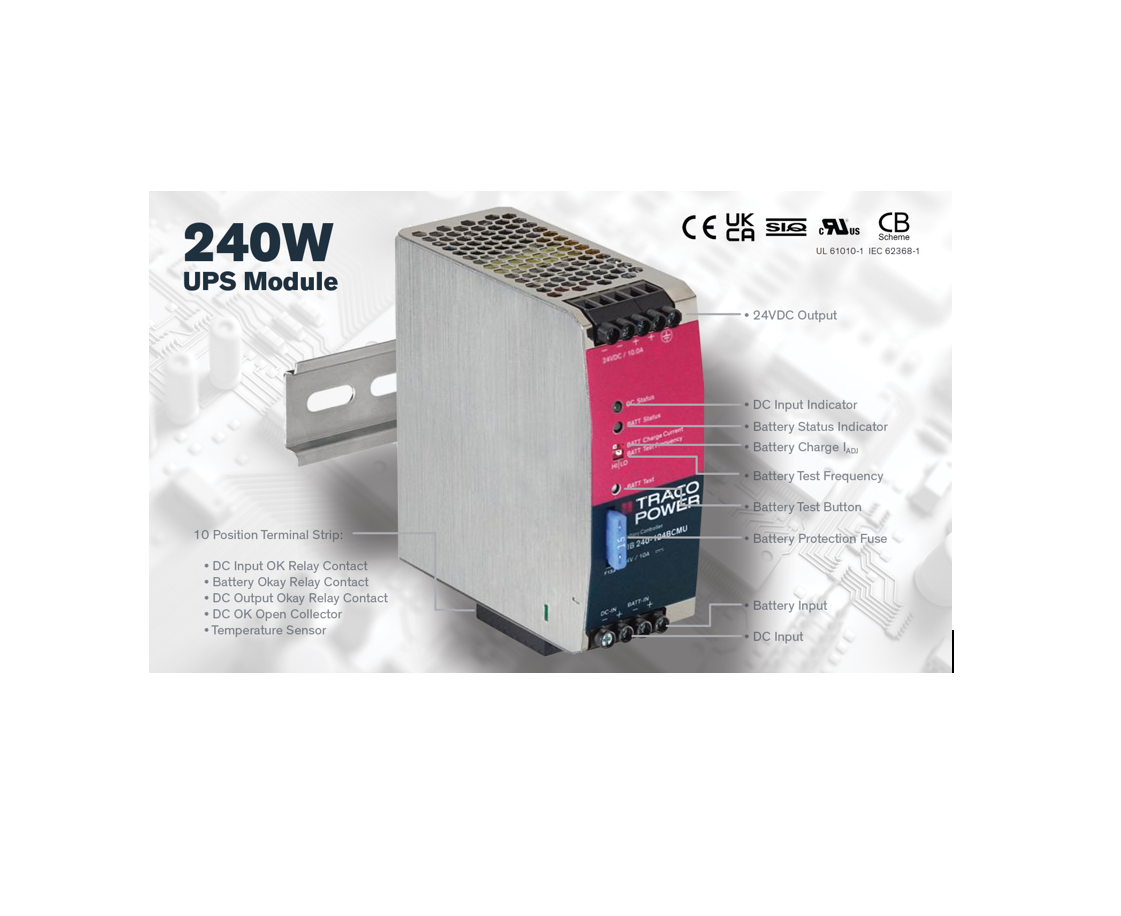

TRACO POWER announces its new TIB 240-124BCMU module that turns any existing AC/DC 24VDC power source into full-fledged uninterruptible power supply (UPS) system supporting up to 240W of power, optimally charging and protecting connected lead acid batteries.

An integrated microprocessor ensures that the connected lead-acid battery is optimally charged with periodic impedance measurements performed to alert the user in case of a rare battery failure or disconnection. During battery backup operation, the internal DC/DC power conversion stage keeps the output voltage constant while the battery terminals are protected with a user-serviceable 15A blade type fuse.

The TIB 240-124BCMU has been qualified to UL/EN/IEC 61010-1 standards for measurement, laboratory, and control equipment as well as EN 62040-1 for uninterruptible power supplies and comes with an internal Class B EMI filter for EN55011 & EN55032 compliance.

Additional features include:

  • Constant output voltage
  • Greater than 96% efficiency during battery operation
  • Greater than 98% efficiency during pass-through operation
  • Battery OK, input OK, output OK relay contacts
  • Protection against: short circuit, reverse polarity, overload, deep-discharge protection
  • LED Indicators and manual battery test functions
  • Three-year product warranty

The TIB-240-124BCMU is compatible with the TRACO Power TIB series of 80,120 and 240W DIN-rail power supplies.

The new UPS module is in stock and available through TRACO POWER’s global distribution network.
