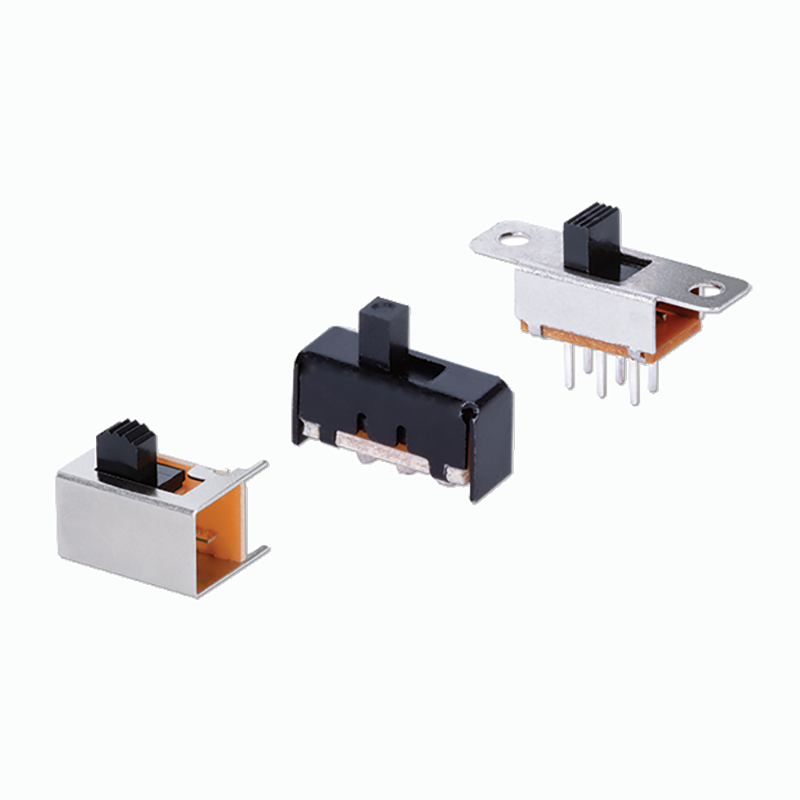

The SLW family features a range of new circuit types, including SPDT, SP3T, SP4T, DPDT, DP3T, and DP4T as well as switch functions that include on-on, on-on-on, on-off-on, and off-on-on-on. Housed in packages as small as 8.3 x 5.6 x 3.6mm, these new slide switches are ideal for space-constrained designs in consumer electronics, industrial controls, and more.
Available in through hole packages with PC pin terminations, the new models offer pitches from 2 to 6.9mm, raised actuators, and horizontal or vertical orientations. These slides switches carry rated voltages of 30 or 50Vdc, rated currents from 200 to 500mA, and operating temperature ranges from –20 to 70°C. They also feature shorting or non-shorting contact timing.
The SLW models are available immediately with prices starting at $0.24 per unit at 500 pieces through distribution.
Summary
- Product name: slide Switches
- Availability: stock to seven weeks
- Possible users: consumer electronics, industrial controls, and test equipment
- Primary features: variety of switch functions and circuit types
- Cost: $0.24 per unit at 500 pieces through distribution
