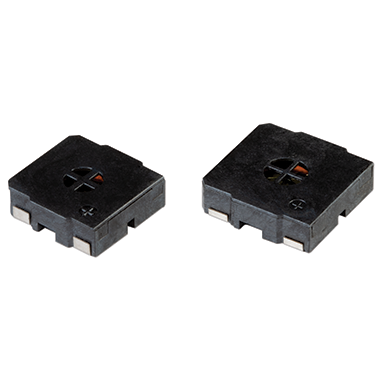

The CMS-131304-SMT-TR and CMS-151504-SMT-TR are surface mount miniature speakers, housed in compact 13 x 13 x 4mm and 15 x 15 x 4mm square frame packages, respectively. Both models are reflow solder compatible, while featuring polyurethane cones and samarium cobalt magnets.
The CMS-131304-SMT-TR offers a sound pressure level of 87dB measured at 10cm and 0.7W. It carries a resonant frequency of 900Hz, max input of 1W, impedance of 8 ohms, and operating temperature range of -40 to 85°C.
The CMS-151504-SMT-TR offers a sound pressure level of 88dB measured at 10 cm and 0.5W. It carries a resonant frequency of 850Hz, max input of 0.8W, impedance of 8 ohms, and operating temperature range of -20 to 70°C.
