ProTek Devices unveils new TVS hybrid array

13th November 2023
Kristian McCann

ProTek Devices has launched a new transient voltage suppressor (TVS) hybrid array, the PTA03-3.3ULC, designed to offer robust circuit protection in high-speed data line applications. This includes Ethernet, set-top boxes, xDSL, T1/E1 line cards, and ISDN.

The PTA03-3.3ULC provides defence against the damaging effects of electrostatic discharge (ESD), electrical fast transients (EFT), and secondary electrical transient threats.

The PTA03-3.3ULC TVS hybrid array features a low capacitance of max 2.4pF (I/O to I/O), even at higher temperatures, and provides 100A (2/10 microseconds) protection per Bellcore GR1089 (intra-building). It also offers ESD protection greater than 30kV, contact per IEC 61000-4-2, and supports a telecom/diode bridge configuration. Additionally, it boasts a peak pulse power of 2000 Watts per Line (typical = 8/20 microseconds).

Compatible with several IEC standards, the PTA03-3.3ULC meets criteria for ESD (IEC 61000-4-2): air ±15kV, contact ±8kV; EFT (IEC 61000-4-4): 40A - 5/50ns; and surge (IEC 61000-4-5): 70A, 8/20 microseconds. The product is RoHS and REACH compliant.

Mechanical details and availability

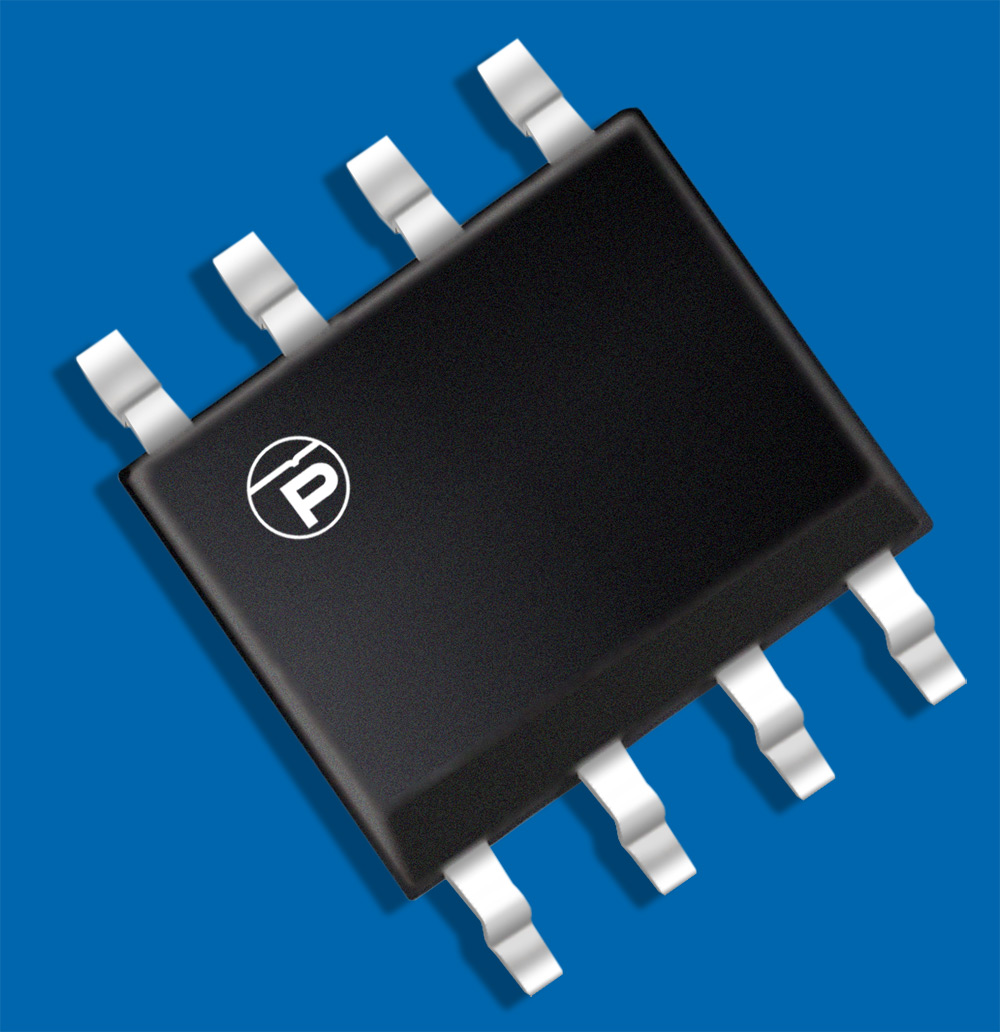

Now available, the PTA03-3.3ULC is housed in a moulded JEDEC SO-8 package, weighing approximately 70 milligrams. It features lead-free plating (annealed) and a solder reflow temperature of 260-270 degrees Celsius. The device has a UL 94V-0 flammability rating and an operating/storage temperature range of -55 to 150 degrees Celsius. It is offered on 12 mm tape and reel, per EIA standard 481, in quantities starting from 1,000. Further details are available in the product data sheet.

Pricing and purchase information

For pricing and purchasing details, customers can contact any authorised worldwide distributor, representative, or ProTek Devices directly. These sales resources are available across Europe, North America, Asia, South America, and other regions. Complete distributor contact information is available on the company's website.

ProTek Devices offers a wide range of circuit protection components, including TVS arrays, EMI filter/TVS arrays, TVS diode arrays, steering diodes and hybrid arrays, thyristor surge suppressors, and high-powered components and modules. These components are globally used in a variety of applications to protect against electric transient surges and high voltage spikes, safeguarding electronics in aerospace, automotive, computing, consumer electronics, industrial, medical, military, and networking and communications equipment.
