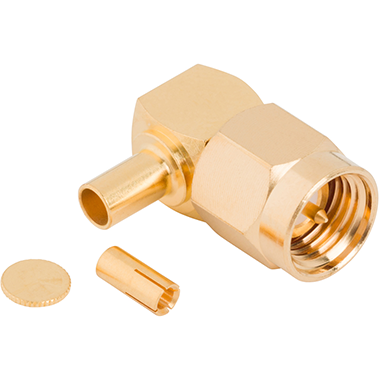

SMA connectors engineered for 0.81mm and 1.32mm cables

These SMA plugs feature a threaded coupling mechanism ensuring a secure connection even in rigorous applications. The connectors are tested for up to 500 mating cycles, guaranteeing durability and reliability. The 165°C maximum temperature range ensures unrelenting performance in harsh conditions where temperature resistance is crucial. Supporting up to 9GHz, the maximum frequency for many micro-coaxial cable types, these connectors support frequencies required for Wi-Fi 7 applications. Preconfigured cable lengths and custom cable assemblies are available upon request.

With a durable gold-plated brass body and contact, SMA connectors are engineered to endure corrosion resistance and provide longevity for any usage. A stainless steel retaining ring holds the PTFE insulator and contact in place, while a silicone gasket ensures a sealed and secure connection. When assembling the connector, the centre contact must be soldered and the ferrule crimped with a 0.105” hex crimp. Stripping dimensions for each connector is provided on the product drawings. With high-frequency capabilities, reliability, and quality materials, SMA connectors are ideal for demanding applications such as antennas, telecommunications, and military & aerospace.

These SMA plugs join a wide portfolio of SMA connectors designed as off-the-shelf solutions for all RF design projects.
