IBASE first 2.5” single board computer

14th June 2024
Sheryl Miles

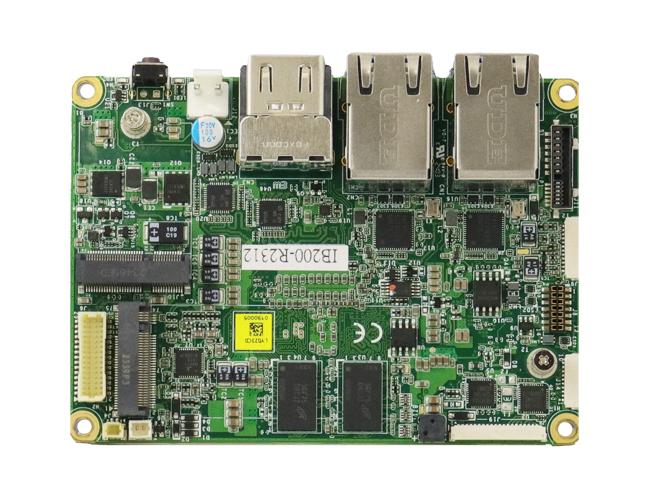

IBASE Technology, a global pioneer in embedded computing solutions, proudly unveils its first ultra-compact 2.5” single board computer (SBC) designed for edge computing applications.

The advanced IB200 SBC offers exceptional graphics processing performance with the AMD Ryzen Embedded R2000 Series. Featuring four cores and eight threads integrated with the AMD Radeon Vega graphics controller, it delivers twice the CPU core count compared to the R1000 Series.

The industrial-grade IB200 SBC ensures a seamless multimedia experience with two HDMI 2.0b ports supporting 4K display and a dual-channel LVDS with a resolution of 1920 x 1200 @60Hz. It offers a comprehensive set of connectivity options, including dual Intel I226IT Gigabit LAN ports, four COM, two USB 3.2 Gen2 (10Gbps) ports with PDPC support, three USB 2.0 headers, and one M.2 2280 M-key, and one M.2 2230 E-key slot, ensuring flexibility in storage selection and speed. Additionally, the board is equipped with TPM 2.0 and a SATA II interface, making it a versatile solution for various industrial IoT applications.

The IB200 comes with an energy-efficient 12–25W thermal design and delivers robust operation with an operating temperature range from 0°C to 60°C. The mini SBC, with dimensions of 100 x 72mm, is designed for industries requiring powerful computing in a compact form factor. Its advanced features and connectivity options make it an ideal choice for modern edge computing applications such as manufacturing, industrial automation, and smart retail, ensuring long-term reliability and superior graphics performance.

IB200 features:

  • AMD Ryzen Embedded R2000 series APU on board, up to four cores/eight threads
  • Onboard DDR4 memory, Max. 8GB
  • 2x HDMI 2.0b & LVDS: 5V/3.3V, 24 bit, dual channel (LVDS: 1920x1200 @60 Hz)
  • 2x GbE LAN, 4x COM, 2x USB 3.2 Gen2 (10Gbps) [with PDPC support], 3x USB 2.0 via pin headers
  • Supports 1x M.2 (M-Key, type 2280) & 1x M.2 (E-Key, type 2230)
  • Supports 4x COM - COM1/COM2: RS-232/422/485, COM3/COM4: RS232 (Default: RS-232, adjustable in BIOS)
  • Energy-efficient 12-25W thermal design
