Avalue announces ECM-ASL rugged SBC

18th April 2024
Harry Fowle
0

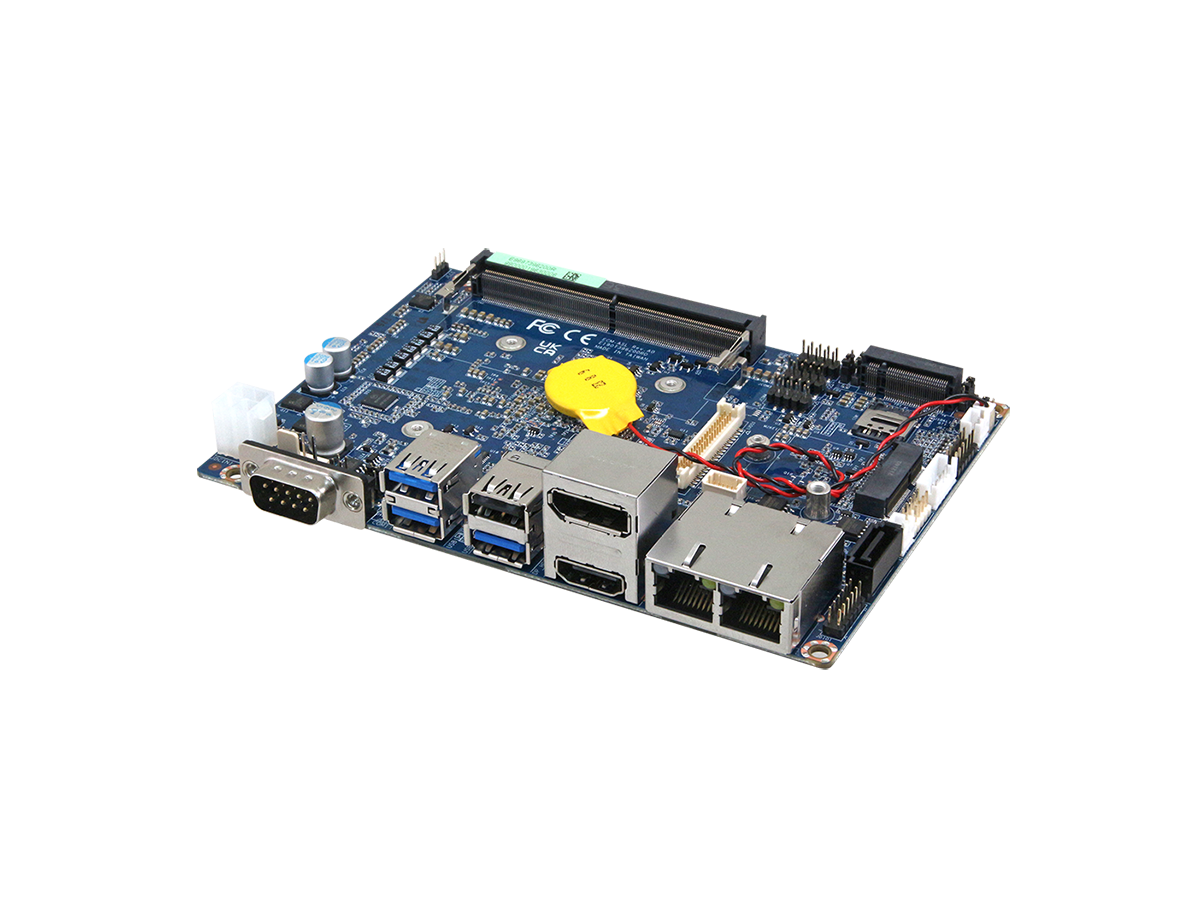

Avalue has announced the ECM-ASL rugged SBC with Intel CPU bottom mounted, as the successor of ECM-EHL.

It delivers enhanced CPU and GPU performance, introducing up to 8 Gracemont cores, and a scalable range from 2 to 8 cores to address a variety of industrial demands. ECM-ASL provides significant enhancements in processing power and AI capabilities tailored for industrial and communication sectors, featuring a rugged design to conquer even the most challenging environments.

ECM-ASL succeeds where others fail. This micro module motherboard not only integrates 16~32 GPU EU architecture, substantially amplifying CPU and GPU capabilities, but also supports a staggering 0°C to 60°C operating temperature range, or an even more extreme -40°C to 85°C range depending on the selected CPU configuration, making it ideal for use in scorching deserts, freezing industrial freezers, or anywhere in between. In addition, ECM-ASL accepts a wide input voltage range of 9VDC to 36VDC, ensuring uninterrupted operation in areas with unstable or unreliable power sources. This feature makes it perfect for applications that suffer from power fluctuations or rely on generators.

ECM-ASL offers unmatched connectivity and expandability, including triple display support via DP 1.4a, HDMI 2.0b, and LVDS/eDP for versatile display configuration and flexible I/O with 3 USB 3.2 Gen 2, 3 USB 2.0, 1 RS-232/422/485, 3 RS232. Moreover, the dual Intel 2.5GbE Gigabit Ethernet ports provide high-speed networking, while dual M.2 expansion slots offer additional storage and functionality. ECM-ASL shares a similar I/O placement with former Intel Atom 3.5” SBC ECM-EHL, making it easy for customers to upgrade their system with less structural changes. For superior performance in demanding applications, ECM-ASL is equipped with a single DDR5 SODIMM socket that supports up to 16GB of DDR5 4800MHz memory, providing high performance required for industrial automation, machine vision, and other resource-intensive tasks.

With its exceptional temperature tolerance, wide voltage range, robust security features, and exceptional connectivity, ECM-ASL excels in a wide range of environments and applications, providing reliability, flexibility, and performance where it matters most.

Key features:

  • Onboard Intel Processor N97, and Intel Core i3-N305 Processor, Intel Atom x7000RE series processors
  • 1 x 262-pin DDR5 4800MHz SO-DIMM socket, supports up to 16GB Max
  • Triple display (HDMI, DP, LVDS/eDP)
  • Storage: 1 x M.2 Key B, 1 x SATA III.
  • Expansion: 1 x M.2 Key B, 1 x M.2 Key E.
  • Ethernet: 2 x Intel I226V for standard temperature or 2 x Intel I226IT for extended temperature
  • I/O: 3 x USB 3.2 Gen 2, 3 x USB 2.0, 1 x RS-232/422/485, 3 x RS232, 1 x SATA III, 1 x 8 bit GPIO
  • TPM 2.0
  • 0~60°C/-40~85°C working temperature support by CPU SKUs
