Process enables 3D printing of nanoscale metal structures
For the first time, it is possible to create complex nanoscale metal structures using 3D printing, thanks to a new technique developed at Caltech. The process, once scaled up, could be used in a wide variety of applications, from building tiny medical implants to creating 3D logic circuits on computer chips to engineering ultralightweight aircraft components. It also opens the door to the creation of a new class of materials with unusual properties that are based on their internal structure.
The technique is described in a study that will be published in Nature Communications. In 3D printing—also known as additive manufacturing—an object is built layer by layer, allowing for the creation of structures that would be impossible to manufacture by conventional subtractive methods such as etching or milling.
Caltech materials scientist Julia Greer is a pioneer in the creation of ultratiny 3D architectures built via additive manufacturing. For instance, she and her team have built 3D lattices whose beams are just nanometers across—far too small to be seen with the naked eye.
These materials exhibit unusual, often surprising properties; Greer's team has created exceptionally lightweight ceramics that spring back to their original shape, spongelike, after being compressed.
Greer's group 3D prints structures out of a variety of materials, from ceramics to organic compounds. Metals, however, have been difficult to print, especially when trying to create structures with dimensions smaller than around 50 microns, or about half the width of a human hair.
Two-photon lithography is used to 3D print structures out of a liquid material, creating chemical bonds that harden into a solid material.
The way 3D printing works at the nanoscale is that a high-precision laser zaps the liquid in specific locations of the material with just two photons, or particles of light. This provides enough energy to harden liquid polymers into solids, but not enough to fuse metal.
"Metals don't respond to light in the same way as the polymer resins that we use to manufacture structures at the nanoscale," says Greer, professor of materials science, mechanics, and medical engineering in Caltech's Division of Engineering and Applied Science.
"There's a chemical reaction that gets triggered when light interacts with a polymer that enables it to harden and then form into a particular shape. In a metal, this process is fundamentally impossible."

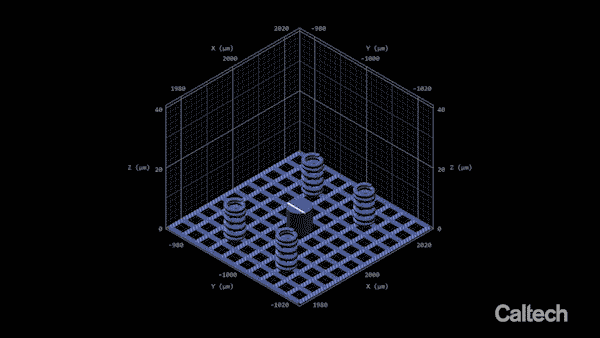

Computer modelling shows how a tiny lattice is 3D printed in 150-nanometer layers. When the structure is heated, it can shrink by 80%. Greer's graduate student Andrey Vyatskikh came up with a solution. He used organic ligands—molecules that bond to metal—to create a resin containing mostly polymer, but which carries along with it metal that can be printed, like a scaffold.
In the experiment described in the Nature Communications paper, Vyatskikh bonded together nickel and organic molecules to create a liquid that looks a lot like cough syrup. They designed a structure using computer software, and then built it by zapping the liquid with a two-photon laser.
The laser creates stronger chemical bonds between the organic molecules, hardening them into building blocks for the structure. Since those molecules are also bonded to the nickel atoms, the nickel becomes incorporated into the structure. In this way, the team was able to print a 3D structure that was initially a blend of metal ions and nonmetal, organic molecules.
Vyatskikh then put the structure into an oven that slowly heated it up to 1,000ºC (around 1,800ºF) in a vacuum chamber. That temperature is well below the melting point of nickel (1,455ºC, or about 2,650ºF) but is hot enough to vaporise the organic materials in the structure, leaving only the metal. The heating process, known as pyrolysis, also fused the metal particles together.
In addition, because the process vaporised a significant amount of the structure's material, its dimensions shrank by 80%, but it maintained its shape and proportions.
"That final shrinkage is a big part of why we're able to get structures to be so small," says Vyatskikh, lead author on the Nature Communications paper. "In the structure we built for the paper, the diameter of the metal beams in the printed part is roughly 1/1000th the size of the tip of a sewing needle."
Greer and Vyatskikh are still refining their technique; right now, the structure reported on in their paper includes some voids left behind by the vaporised organic materials as well as some minor impurities. Also, if the technique is to be of use to industry, it will need to be scaled up to produce much more material, says Greer.
Although they started with nickel, they are interested in expanding to other metals that are commonly used in industry but are challenging or impossible to fabricate in small 3D shapes, such as tungsten and titanium.
Greer and Vyatskikh are also looking to use this process to 3D print other materials, both common and exotic, such as ceramics, semiconductors, and piezoelectric materials (materials with electrical effects that result from mechanical stresses).
Discover more here.
