3D Systems help bring the Great Pagoda back to life

23rd July 2018
Anna Flockett

If a building has been around for 256 years, there is a chance it isn’t going to look as good as it originally did. This is certainly the case with the Great Pagoda in the middle of Kew Gardens, which was originally built for Princess Augusta back in 1762. But last year the Historic Royal Palaces (HRP) implemented a restoration project for the 72 dragons that originally adorned the roofs.

At the time rumour was circulating that the dragons which were partly made of real gold were sold as payment for royal gambling debts, but experts believe the dragons which were primarily made of wood had rotted.

It was important that the building be restored back to its original beauty as much as possible, as in the years following the first unveiling it drew crowds who came to admire its eye-catching and exotic structure. As HRP required a solution that would authentically replicate the dragons, the solution would also this time need to be able to withstand weather conditions.

It was not just the aesthetics of the dragons that were part of the design stages, as HRP began to explore different methods one task that became more of a challenge was the weight. The pagoda had not supported the weight of the dragons for two centuries. “One of the most challenging aspects of this project was to minimise the impact imposed by so many dragons on this grade one listed building,” said Craig Hatto, project director, Historic RoyalPalaces.  The age of the structure was definitely a concern in this respect, as it could have responded poorly to the sudden reintroduction of 80 full-weight, large scale ornaments, so HRP started to look at lighter alternatives.

Basically a perfect restoration solution needed to address the quality, weight, time and cost concerns inherent to the project. On the basis of having the abilty to provide the expertise, technology, quality and scalability required to fulfil the project, 3D Systems won the bid for the project.

“We turned to 3D Systems to provide the rapid throughput, accurate details, and excellent finishing that was needed for this project,” said Hatto. “The engineering skill of 3D Systems’ team, the opportunity to light-weight the dragon statues, and the material longevity of SLS 3D printing were key considerations for this project.”

The 3D Systems’ On Demand Manufacturing team came up with a lightweight, durable dragon that was made a scan-to-CAD workflow featuring Geomagic software, Selective Laser Sintering (SLS) 3D printing and high quality finishing. It is safe to say the project was far from a hands-off process, and took the team many hours of frontend engineering and backend finishing, which eventually led to them providing a high quality full-service design.

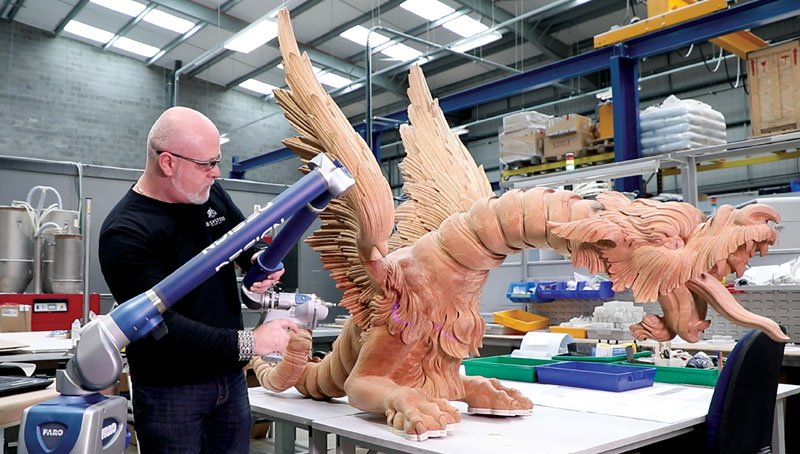

With a reverse engineering workflow and a FARO Design ScanArm, the carved wooden dragons were scanned into a 3D design environment which enabled 3D Systems from here to address the concerns of HRP regarding the weight and sustainability. By scanning the data into CAD and hollowing the scan to a controlled thickness, 3D Systems were able to preserve both exterior details but more importantly the structural integrity.

However, the complex exteriors of the hand cut masters became a little too complex for the hollowing geometry to be manufactured traditionally and needed additive manufacturing for production.  So 3D Systems used a digital manufacturing workflow to seamlessly scale the dragons and eventually achieve a marginal size difference for levels two to ten of the pagoda. That resulted in a total of 18 designs of the dragons were prepared and were made up of nine different sizes from 1150-1850mm in length, and to perfect things there was a right-hand and a left-hand version of each.

“In 3D printing, we are not limited by the need or time required to wait for tooling,” said Nick Lewis, general manager, 3D Systems On Demand Manufacturing. “The existence of digital 3D data gives us freedom to produce parts rapidly, and with custom sizes.”

3D Systems were completely in charge of the project until the end, so thinking ahead the engineers planned another simple but almost essential feature in the dragons. They added a built-in mounting feature directly into the CAD files, which actually constituted part of the dragons’ construction designs. 3D Systems worked on this part closely with Hockley & Dawson.

“The final dragons are essentially a perfect copy of the original, but have been improved upon in a way that is invisible to the observer,” said Lewis. “We engineered internal elements for a secure mounting process, but designed them in such a way as to be completely concealed so no nuts, bolts or traces of construction will be visible.”

The dragons were printed on 3D Systems’ SLS machines in DuraFormPA, a durable polyamide 12 nylon material capable of producing a look and feel comparable to the original dragons. For all the complex parts with thin walls and snap fit requirements, the resolution and properties of the DuraForm PA made it the best option.

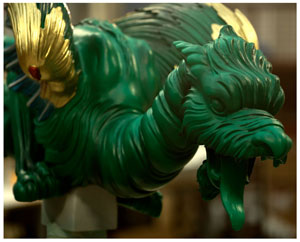

In the terms of the Kew dragons, these features suited both the functionality requirement of installation as well as the cosmetic requirements of the historic restoration. Finally to finish off the dragons, 3D Systems’ skilled artisans actually hand-painted each 3D dragon individually, they started with the base layer as green all over.

Senior vice president and general manager, plastics and on demand manufacturing at 3D Systems, Phil Schultz commented: “We so often see 3D printing technology applied to new innovations that when we get the chance to literally make history, it is quite exciting.”

He then added that in the collaboration with HRP, 3D Systems were able to bring new technology to bear on a historical landmark, and restore it to its former beauty and helping to ensure its future for generations to come. He concluded: “It’s a testament to the capabilities and expertise of our On Demand Manufacturing team. Our full suite of durable materials, 3D printing technologies, reverse engineering software and practical expertise allow us to create a custom solution no matter how unique the customer’s needs.”
