Tiny but mighty- ASRock Industrial releases new products

4th January 2023
Beth Floyd

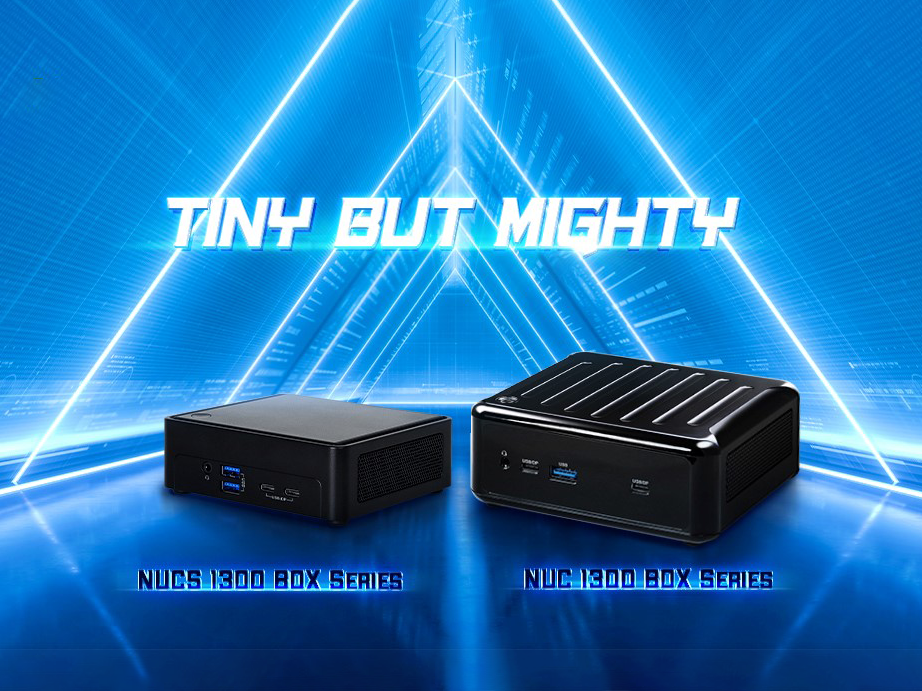

ASRock Industrial launches the mighty trio- NUC 1300/D5 BOX, NUC 1300/D4 BOX, and NUCS 1300/D4 BOX Series enabled by 13th Gen Intel Core Processors (Raptor Lake-P).

Featuring performance hybrid architecture supporting up to 12 cores (4P+8E) with Intel Iris Xe Graphics, the NUC 1300/D5 BOX Series leverage the first DDR5-4800 MHz memory up to 64GB while bringing mighty capabilities with one USB4 support, four USB 3.2 Gen2, up to 4K quad displays, 2.5G dual LAN, Wi-Fi 6E, and dual storages. Meanwhile, the new slim-type NUCS 1300/D4 BOX Series come with 4K quad displays, one USB4, five USB 3.2 Gen2, and one 2.5G LAN along with WiFi 6E. The tailored features ensure a wide range of upgraded applications in gaming, content creation, productivity, business, AI BOX, smart retail, and more.

Brand-new NUCS 1300/D4 BOX Series for Slim Type Mini PC

The NUCS 1300/D4 BOX Series- NUCS BOX-1360P/D4 and NUCS BOX-1340P/D4 are one mighty package powered by 13th Gen Intel Core i7/i5 Processors (Raptor Lake-P), particularly for slim type systems. The series feature two SO-DIMM DDR4-3200 MHz up to 64GB, with up to 4K quad-display through two HDMI 2.0b, two DP1.4a (from Type C) for lifelike visual experience, plus one 2.5G LAN and WiFi 6E for reliable connections. For rich IOs and expansions, there are one USB4, five USB 3.2 Gen2 (Type C and A), and one M.2 Key M (2242/2280) for storage. Moreover, a 12~19V DC-in jack design with TPM 2.0 onboard is also equipped. The NUCS 1300/D4 BOX Series follow suit in its mighty capabilities, with an even tinier size of 110.0 x 117.5 x 38mm fanned barebone, bringing next-level potentials in retail solutions such as digital signage, kiosk, POS, as well as enhanced gaming experience and office boost on PCs.

Tiny but mighty- NUC 1300/D5 BOX Series and NUC 1300/D4 BOX Series

The NUC 1300/D5 BOX Series- NUC BOX-1360P/D5, NUC BOX-1340P/D5 powered by 13th Gen Intel Core i7/i5 Processors (Raptor Lake-P) integrate performance hybrid architecture of 4 P-cores and 8 E-cores. The NUC 1300/D5 BOX Series feature the first dual channel DDR5-4800 MHz SO-DIMM memory up to 64GB for mighty multitasking abilities. You can also enjoy up to 4K quad displays through one HDMI 2.0b, one DP 2.1 (from USB4), and two DP 1.4a (one from Type C) with Intel Iris Xe Graphics, providing clear and vivid visions. Moreover, rich IOs connectivity supports 2.5G dual-LAN and WiFi-6E along with one USB4 and four USB 3.2 Gen2 ports. There are also dual storages of one M.2 Key M (2242/2260/2280) and one SATA 3.0 to optimize overall capacity. Optimal power and performance are carried in a compact shell of 110.0 x 117.5 x 47.85mm (W x D x H) with fanned barebone, giving its tiny but mighty reputation. Moreover, there is a 19V/90W power adapter and a 12-19V DC-in jack designed for flexibility under inconsistent power input plus TPM 2.0 onboard for hardware-based security.

The NUC 1300/D4 BOX Series- NUC BOX-1360P/D4, NUC BOX-1340P/D4, also powered by 13th Gen Intel Core i7/i5 Processors (Raptor Lake-P) feature dual-channel DDR4 3200 MHz SO-DIMM memory up to 64GB, and quad-display through one HDMI 2.0b, and three DP 1.4a over two type C for maximum resolution up to 4K. For rich IOs and expansions, the series provide one USB4, four USB 3.2 Gen 2, two Intel 2.5G LAN, one M.2 Key E (Wifi-6E) for high-speed connectivity plus dual storages support with one M.2 Key M (2242/2260/2280) and SATA 3.0 that allows mighty performance in the compact fanned barebone that is the same size as NUC 1300/D5 BOX Series. The NUC 1300/D4 BOX Series have a 12-19V DC-in jack design with a 19V/90W power adaptor and TPM 2.0 onboard for enhanced security.

The NUC 1300/D5 BOX, NUC 1300/D4 BOX, and NUCS 1300/D4 BOX Series activated by 13th Gen Intel Core Processors (Raptor Lake-P) are the mighty choices for you. “With the industry-leading features of 13th Gen Intel Core Processors (Raptor Lake-P), particularly the first DDR5 support that ensures faster performance, higher memory bandwidth, and better power efficiency covered in a smaller dimension,” said James Lee, President of ASRock Industrial. “ASRock Industrial’s NUC 1300 BOX/ NUCS 1300 BOX Series are expected to effectively integrate these features to reach new heights in ranged applications while leading in time-to-market as one of the first 13th Gen Intel CPU Powered Mini PCs.”
