Sayaka SAM-CT34XZ router boosts throughput

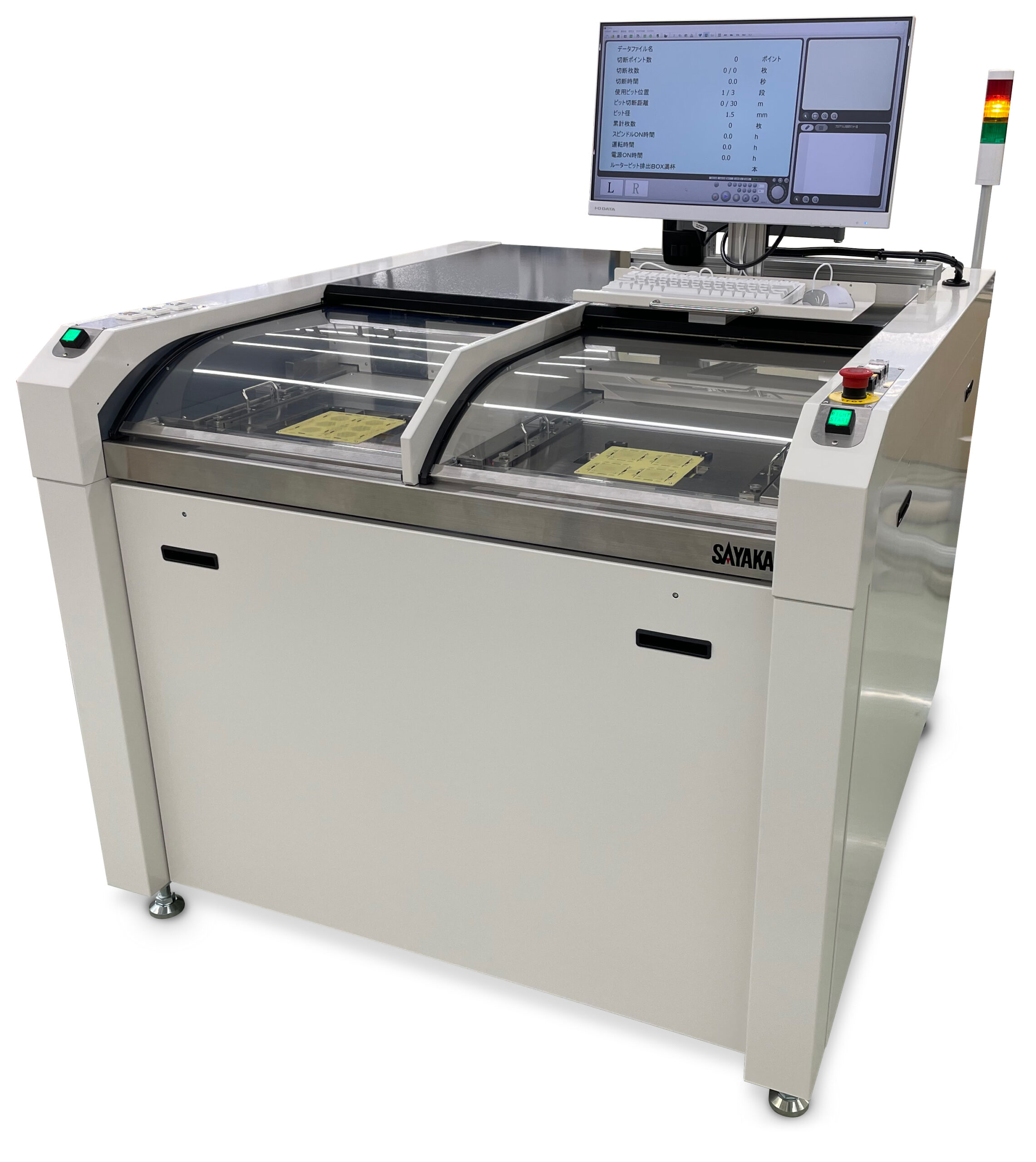

Engineered by Sayaka, the SAM-CT34XZ is designed to improve production flexibility, precision, and efficiency. Unlike traditional top-side routing systems, this model allows manufacturers to safely depanel boards with tall connectors or components on the top side – cutting from the bottom to preserve clearance and component integrity. This capability is particularly valuable in high-reliability sectors such as automotive, industrial, and power electronics manufacturing.

The system also features a dual-table configuration, allowing for continuous operation by loading and unloading boards on alternating tables. Combined with automatic router-bit changes, blade diameter measurement, jig sensors, and image-processing camera teaching, the SAM-CT34XZ delivers advanced automation and high-precision results while reducing downtime.

Additional highlights include:

• Maximum cutting area of 330mm x 400mm
• Cutting thickness from 0.4mm to 3.0mm
• Repeatability accuracy within ±0.01mm
• Router bit diameter support from φ0.8 to 3.0mm
• Spindle speeds from 5,000 to 50,000 rpm
• Optimised dust collection system under the bottom-cutting table

The system is also compatible with DXF-based teaching, QR code reading for jig recognition, and traceability options, making it ideal for fully automated lines.

“The SAM-CT34XZ brings a new level of flexibility and capability to PCB separation,” said Michelle Ogihara, Executive VP at Seika Machinery. “Its bottom-cutting feature opens up applications that previously required manual routing or special fixturing, and its dual-table design means it can keep up with modern high-mix, high-volume environments.”
