WavePro HD oscilloscopes capture every detail up to 8GHz
Teledyne LeCroy has announced the WavePro HD high-definition oscilloscopes, which combine for the first time HD4096 12-bit technology and 8GHz bandwidth for low noise and pristine signal fidelity. With a maximum of 5 Gpoints of fast, responsive, and easily navigable acquisition memory, also an industry first, WavePro HD oscilloscopes also acquire extremely fine waveform details over long periods of time. A deep, powerful toolset quickly exposes underlying system behaviours.
WavePro HD 12-bit oscilloscopes support engineers in developing smaller, faster, and lower-power mobile and handheld devices; high-speed, deeply-embedded computing systems; and datacenter technologies. All of these are characterised by analogue sensor inputs, sensitive power-distribution networks (PDNs) with very low-voltage power rails, and high-speed CPUs and serial-data interfaces. This requires an oscilloscope with a combination of high resolution, low noise, high bandwidth, and very long capture times at high sample rates to facilitate comprehensive system debugging.
All WavePro HD oscilloscopes feature a large 15.6”, 1900x1080-pixel capacitive touch screen and Teledyne LeCroy’s powerful MAUI with OneTouch user interface for intuitive, efficient operation. The instruments come in four models with bandwidths from 2.5-8GHz, all featuring sample rates up to 20 GS/s.20 GS/s.
HD4096 technology meets 8GHz bandwidth

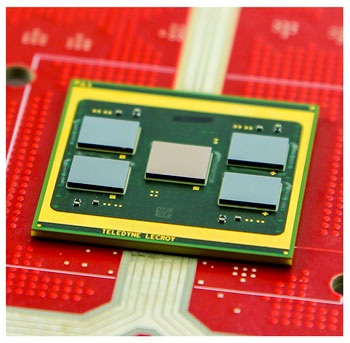

At the heart of WavePro HD is a new 8GHz chipset comprising a low-noise front-end amplifier and a 12-bit ADC. That chipset, tightly integrated with a new low-noise, high-bandwidth system architecture, unlocks the full potential of HD4096 High Definition Technology in an industry-first 8GHz, 12-bit oscilloscope. Competitive instruments either simply place a 10- or 12-bit ADC into a conventional 8-bit signal path, or use software techniques to sacrifice bandwidth for higher resolution. WavePro HD’s HD4096 technology provides the highest resolution and lowest noise at full bandwidth without compromise.
Next-generation long-memory architecture
With WavePro HD’s next-generation signal-acquisition and memory-management architecture, 5-Gpoint acquisitions are fast and responsive. Meanwhile, WavePro HD's MAUI advanced user interface makes it easy to find, navigate to, and thoroughly analyse waveform features of interest. The instruments can acquire 250ms at the full 20-GS/s sample rate, and always with 12-bit resolution.
Best-in-Class deeply embedded computing systems debug
In WavePro HD, high-resolution analogue inputs may be combined with optional mixed-signal oscilloscope (MSO) inputs for capture of a wide range of analogue-sensor, digital logic, power-rail, serial-data, and other signals. A full complement of standard analysis tools is augmented by serial-data Trigger, Decode, Measure/Graph, and Eye-Diagram (TDME) options. Thus, WavePro HD performs the industry’s best long-capture causal analysis between any high- and low-speed signals, including power-distribution network (PDN) signals, analogue sensor inputs, digital activities, and serial data messages. When combined with Teledyne LeCroy’s powerful, deep toolbox and toolsets for high-speed serial-data jitter analysis and protocol compliance, users have at their fingertips a dream debug and analysis solution for deeply embedded computing systems.
Unmatched power-integrity investigations
WavePro HD’s high bandwidth and high vertical resolution are suited for measurement and analysis of on-die and system PDN behaviour. High bandwidth means accurate characterisation of high-speed, on-die effects such as ground bounce, while WavePro HD’s high dynamic range and 0.5% gain accuracy ensure complete confidence in sensitive measurements such as rail-collapse characterisation. The exceptionally low noise floor, combined with spectrum analyser software tools, helps extract and identify the most subtle PDN aggressors. The RP4030 4-GHz power-rail probe completes the WavePro HD’s unmatched power-integrity capabilities by combining flexible connectivity options with a pristine signal path.
Characterise pulses; pin down emissions
In the EMC lab, WavePro HD deftly melds 2.5 or 4GHz of bandwidth with very high sample rates and resolution for extremely accurate pulse characterisation. Meanwhile, on the test bench, system designers must discern EMI sources from within a dense electromagnetic landscape. WavePro HD’s exceptionally low noise and intuitive spectral-analysis capability combine to yield a powerful interference-hunting tool.
Analyse serial-data jitter and noise
For serial-data analysis, 12-bit resolution, a low noise floor, and exceptionally low timebase jitter (60fs) give the WavePro HD huge advantages in jitter and noise measurements. The optional SDAIII CompleteLinQ package comprises the industry’s most complete set of serial-data jitter and vertical noise analysis tools, while optional QualiPHY serial-data compliance packages make easy work of physical layer validation.
ProBus2 interface supports 8GHz
WavePro HD has a new 8 GHz, BNC-compatible ProBus2 probe interface. New 8 and 6GHz ProBus2 probes connect directly to the WavePro HD, as well as to the 4 GHz ProBus interface on other Teledyne LeCroy oscilloscopes. Additionally, ProBus-compatible probes also work with the new ProBus2 interface without adapters, ensuring compatibility with Teledyne LeCroy’s extensive range of existing probes.
