Saelig debuts economical 12-bit Rigol DHO800/900

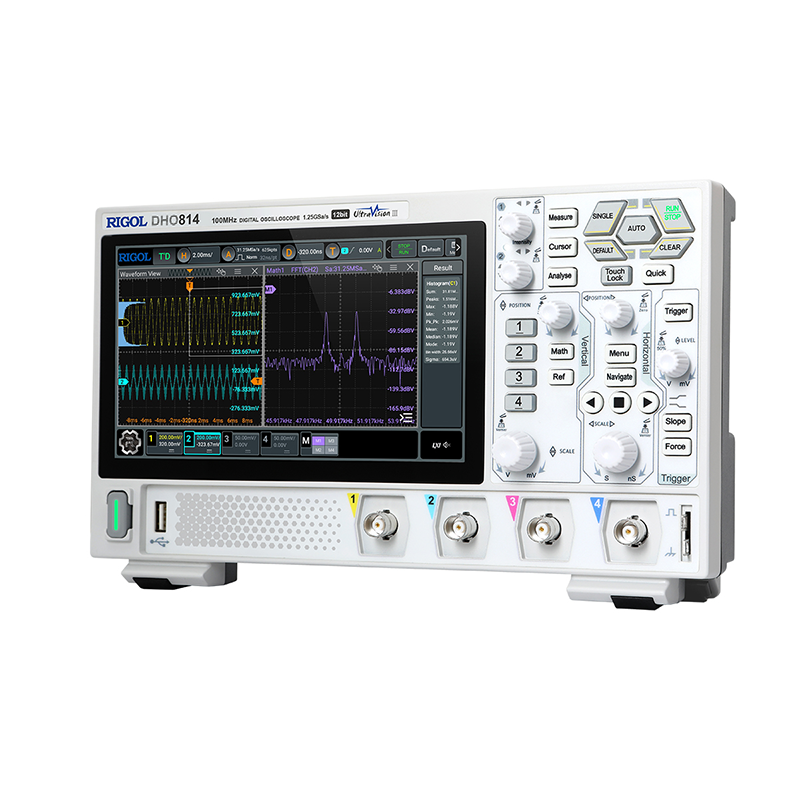

Saelig Company has introduced the Rigol DHO800/900 Oscilloscope Series, Rigol's newest high-performance 12-bit economical digital oscilloscopes.
Not only are they very portable, but they offer high-resolution based on Rigol's ‘Centaurus’ technology platform. With a capture rate up to 1,000,000 wfms/s (in UltraAcquire Mode), and 25/50Mpts memory depth, the low noise floor of these scopes allows the detection of even small signal details.
Additionally, the DHO900 series supports 16 digital channel capture, allowing analysis on both analogue and digital signals simultaneously to meet complex embedded design and test tasks. Affordably priced, these scopes provide auto serial and parallel bus analysis, Bode plot analysis, and many other functions needed for today’s test demands in R&D, education, and scientific research.
DHO800 series highlights
- Ultra-low noise floor, pure signal depiction, captures small signals
- Up to 12-bit resolution for all the models
- Analogue bandwidth of 70MHz & 100MHz, two & four analogue channels
- Max. real-time sample rate 1.25GSa/s
- Max. memory depth 25Mpts
- Vertical sensitivity range: 500uV/div to 10V/div
- Max. capture rate of 1,000,000 wfms/s (in UltraAcquire mode)
- Digital phosphor display with real-time 256-level intensity grading
- Waveform search and navigation function
- 7" (1024 x 600) capacitive multi-touch screen
- New user-friendly Flex Knob control
- USB Device & Host, LAN, and HDMI interfaces (std.) allows remote control
Additional DHO900 Series Highlights
- 16 digital channels (std. but logic probe purchase is required)
- Max. real-time sample rate of 1.25GSa/s
- Max. memory depth 50Mpts
- Vertical sensitivity range: 200uV/div to 10 V/div
Rigol DHO800/900 Oscilloscopes are available now from Saelig Company, Rigol’s USA technical distributor.
