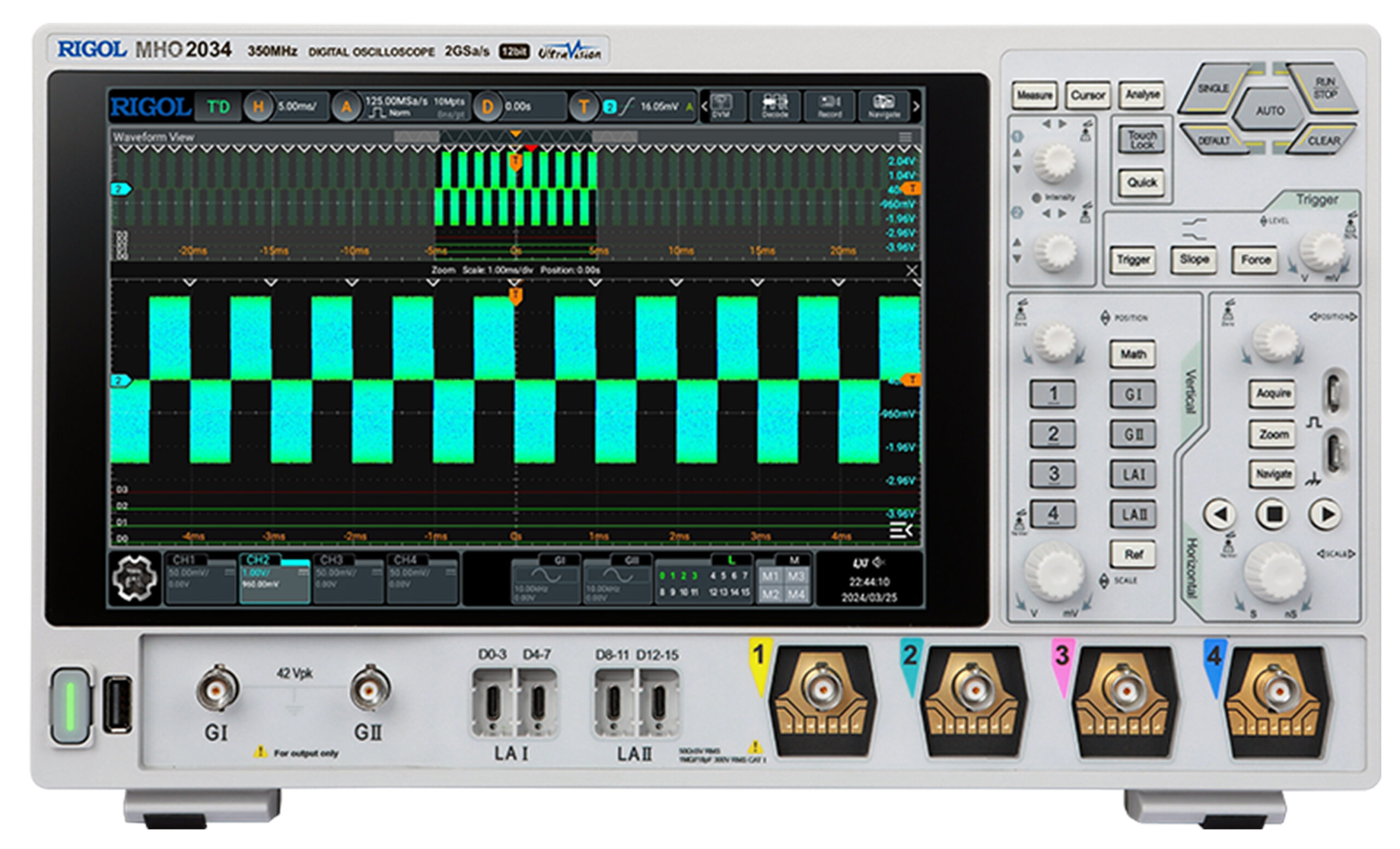

Rigol MHO2000 4-channel 12-bit 350MHz digital oscilloscope series

It offers 12-bit resolution (up to 16-bit in high-res mode), bandwidths up to 350MHz, 4 analog channels, and 16 digital channels for debugging with an optional probe.

The 200MHz MHO2024 and the 350MHz MHO2034 oscilloscopes are designed with 2GSa/s sampling rate all channels at 12-bit vertical resolution, with a waveform capture rate of up to 1,000,000 wfms/s. Internal memory of up to 500Mpts allows for drilling down to fine details in waveform captures. An integrated 2-channel 50MHz AWG is also optionally available.

Automatic measurements for up to 41 parameters, statistics, XY cursors, Pass/Fail function with hardware mask, plus a 6-digit frequency counter and an integrated DVM are all features of the MHO2000 series. Advanced software options include: power analysis, Automotive bus trigger/decoding (CAN-FD, LIN), Avionics bus trigger/decoding (MIL-STD-1553), FlexRay trigger/decoding, and Audio bus trigger/decoding (I2S).

Features

• 12-bit vertical resolution (up to 16-bit in high-res mode)
• Bandwidth: 200 MHz (MHO2024), 350 MHz (MHO2034)
• 4 analog channels + 1 EXT, 16 digital channels (with optional probe)
• Sampling rate: up to 2 GSa/s
• Arbitrary waveform generators (2x 50 MHz, optional)
• Power analysis (optional), histogram, Bode plot, protocol decoding
• 10.1” touch screen 1280x800 pixel
• 256-level digital intensity display, digital fluorescence technology
• Up to 1,000,000 wfms/s in fast recording mode
• Connectivity: USB Host/Device, LAN, HDMI

The MHO2000 digital oscilloscope series is designed to meet advanced design, debugging, and test demands at an attractive price.
