MS5547: digital gel-protected gauge pressure sensor
Gel-protected pressure sensors in SMD housings are very popular due to their wide range of applications, whether in pneumatics, wearables, or medical technology.
This inexpensive yet robust design is now also available in a version for relative pressure up to two bar.
Media resistant gauge pressure sensors like the MS5547 are used in very different areas, such as in medical technology, but also in e-cigarettes. Both a biocompatible silicone gel and a particularly robust Flour gel are available.
The new MS5547 offers maximum accuracy in the range of –200 ... +2,200 mbar. The pressure and temperature data can be read out in 24-bit format via I²C or SPI. The 11 correction coefficients stored in the sensor enable external compensation down to an accuracy (TEB) of less than five mbar.

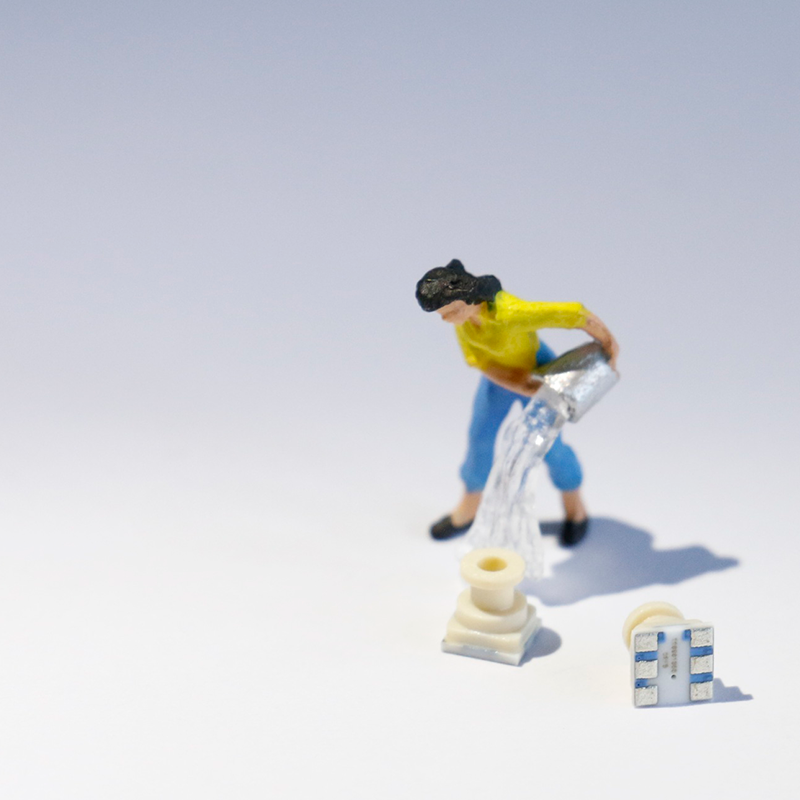

The biocompatible plastic housing is sealed with a 2 x 1mm² O-ring and the overall size of the sensor is only 4 x 4 x 4.4mm³. The sensor is exposed to atmospheric pressure through a little hole in the ceramic under the sensor.
The sensors are suitable for reflow soldering and are of course RoHS and REACH compliant.
Visit AMSYS at the Sensor + Test trade fair in Nuremberg from 11–13 June 2024 at booth 340 hall 1.
