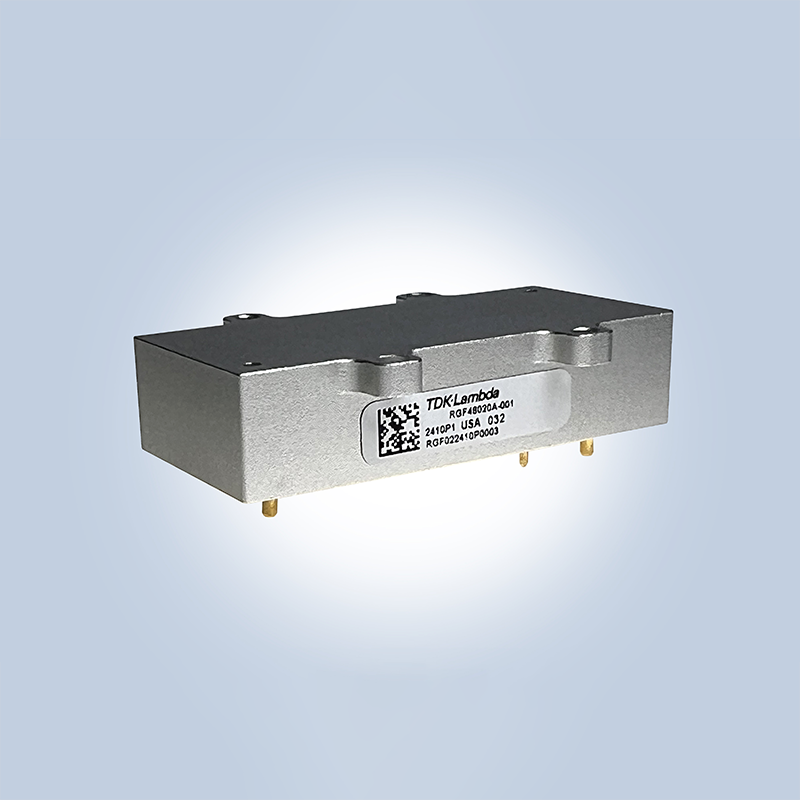

The RGF filters are encapsulated for protection in harsh environments, measure 52.8 x 35.2 x 12.7mm in size, and feature a robust five-sided metal case. The design includes two threaded and two non-threaded mounting holes, ensuring easy installation and enhanced cooling in both conduction and convection-cooled systems. Applications include harsh industrial, commercial-off-the-shelf (COTS), test and measurement, communications, broadcast, and robotics.
When used in conjunction with non-isolated DC/DC converter modules, the filters provide a significant amount of differential mode attenuation over a broad frequency range. This reduces overall system noise and simplifies compliance to typical EMI standards. The input voltage ranges from 0 to 80V and withstands input transients of up to 100V for 100ms durations.
The operating case temperature is between -40 to +120oC, with a qualified thermal cycling test (TCT) of 700 cycles, or -40 to +125oC with a 60oC/minute ramp, and a 30 minute dwell time. The RGF filters are compliant to MIL-STD-810G 516.6 Procedure I and IV for shock and MIL-STD-810G 514.6 Procedure I, Cat 10 for vibration.
Main applications
- Harsh industrial, COTS, test and measurement, communications, broadcast, and robotics
Main features and benefits
- Exceptional differential mode filtering
- Encapsulated in five-sided metal case
- Compact 2 x 1” package
- Low power loss
