The power supplies deliver up to 20W output power without airflow and have increased surge strength. They are fully certified according to the safety standards UL/IEC/EN62368, IEC61347, IEC61558, and EN60335 and are ideally suited for applications in the infrastructure, energy, or industry 4.0 sectors. They are available in different versions at Rutronik. The power supplies are certified according to overvoltage category OVC III and deliver a full 20W output power without airflow up to +55°C (85°C with derating). With efficiencies of up to 88%, the power supply ensures cool operation and a high MTBF of over one million hours. They provide fully regulated DC outputs of 5, 12, 24, or 36 VDC, with an additional 24VDC version featuring active current limitations. The components come with a clip for tool-free mounting by simply snapping it onto a solid DIN rail and are cost-effective and robust. Thanks to the small form factor of 83 x 26.4 x 29.5mm, they can also be used in flush-mounted boxes, for example. Due to their slim design, they also remain hidden behind the front panel.

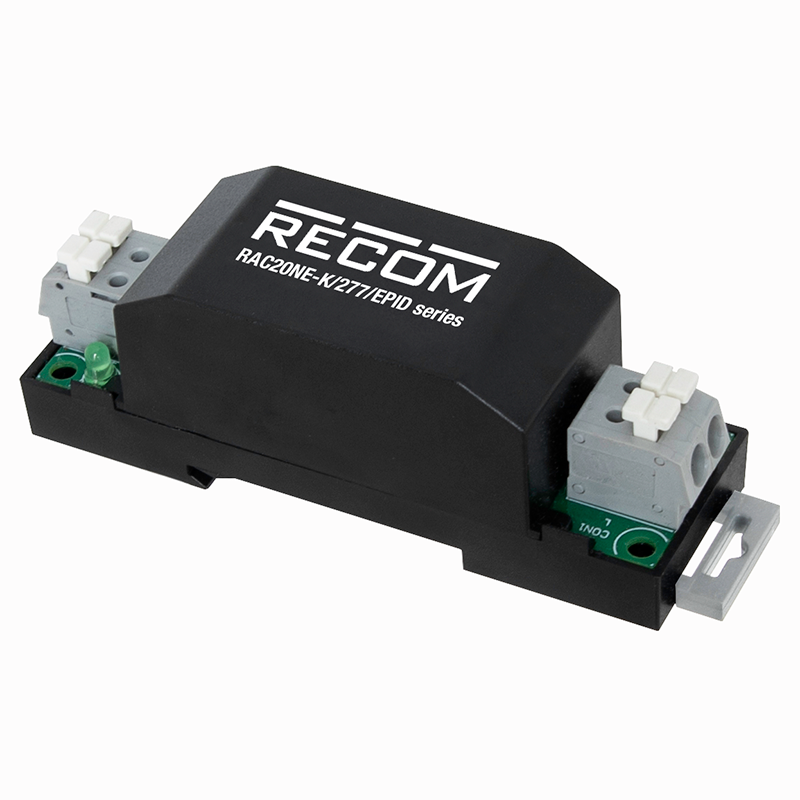

The RAC20NE-K/277/EPID power supply series consists of the following variants:
- RAC20NE-05SK//EPID
- RAC20NE-12SK/277/EPID
- RAC20NE-24SK/277/EPID
- RAC20NE-36SK/277/EPID
- RAC20NE-24SK/277/CC/EPID
Main features at a glance:
- Input Voltage range from 85VAC up to 305VAC
- 23W boost power
- Overvoltage resistance 2 kVAC: L – N, as well as 4 kV: L, N – ground
- OVC III overvoltage category up to 3,000m
- EN55032 “B”: O/P either floating or earth referenced
- Tool-free mounting with a clip to “snap” onto a solid DIN rail
- DIN rail or screw mounting
- Fully IP40 encapsulated
- Available in five variants
