Power divider/combiner handles up to 20W

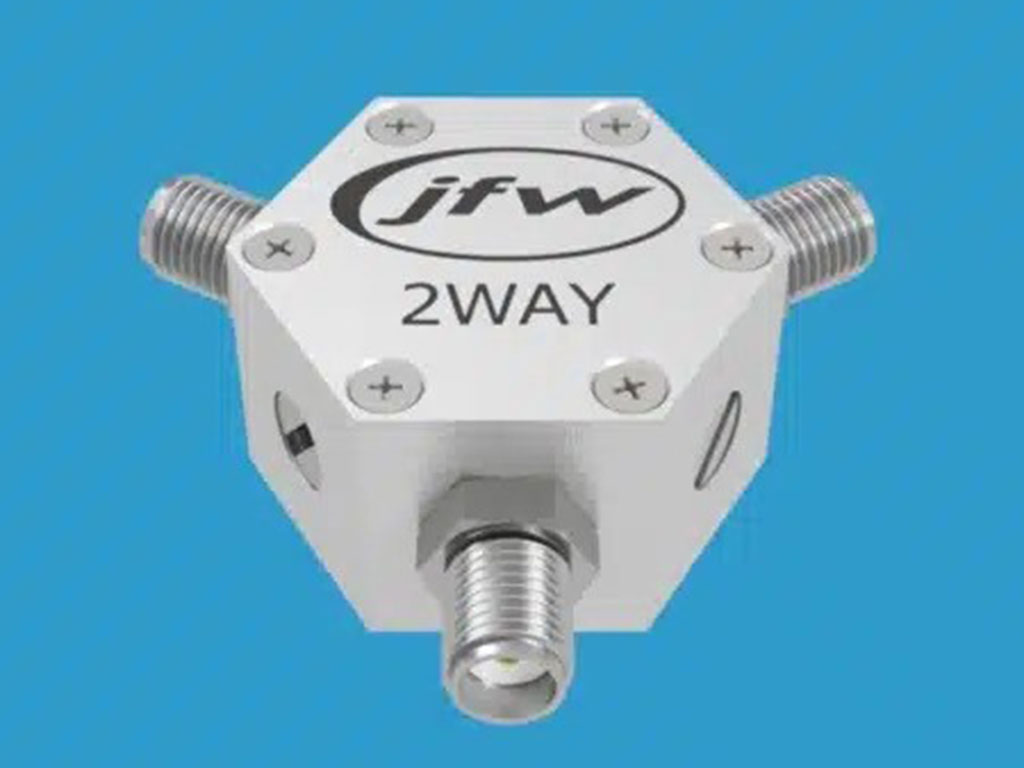

JFW model 50PD-874 SMA is a resistive type 2-Way power divider/combiner with 50 Ohm impedance.

It operated DC-6 GHz and can handle up to 20 Watts average input power as a splitter.

As a combiner it is rated for two 10 Watt signals.  It has a resistive star configuration.

The star configuration results in equal loss through all paths.  It functions like a 3 port RF hub.

All three devices connected to this 3 port hub will Tx/Rx each other at equal signal levels.
