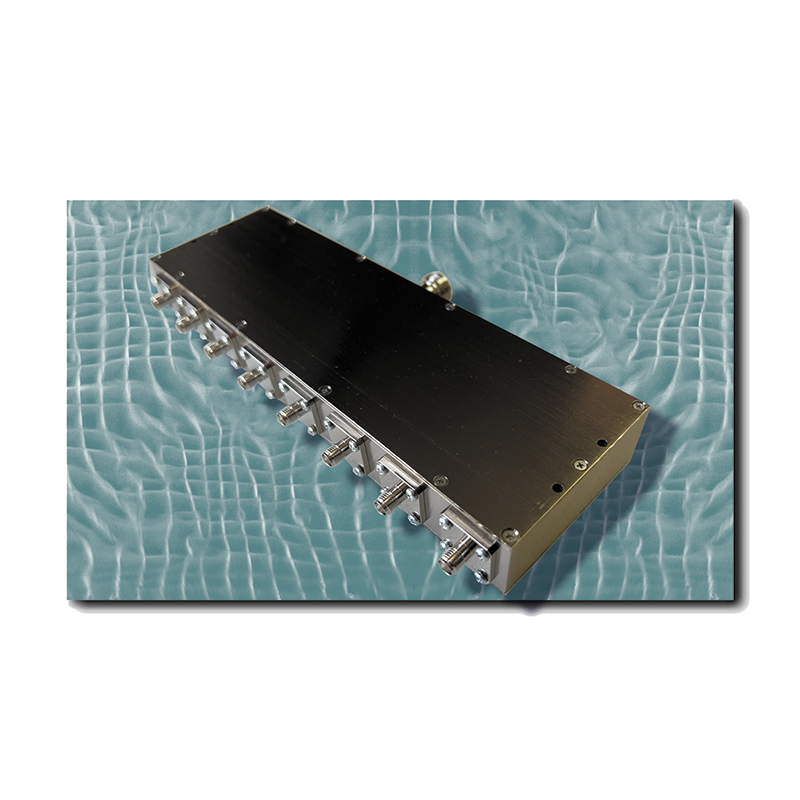

Model 159-309-008 is a 50Ω, eight-way power divider with a DC – 3GHz frequency range. This unit exhibits 1.40:1 maximum VSWR and +/- 1.0dB maximum insertion loss above theoretical loss.
The operating temperature range is 0°C to +70°C and the RF connectors are N female input / SMA female output. BroadWave manufactures a wide variety of resistive power dividers in 2, 3, 4, 5, 6, and 8-way configurations. Available connector types are BNC, N, SMA, and TNC or mixed connector types for unique applications.
Resistive power dividers are ideal for commercial distributed antenna systems, military antenna sharing, and test applications.
