High voltage FRED from PANJIT at Rutronik

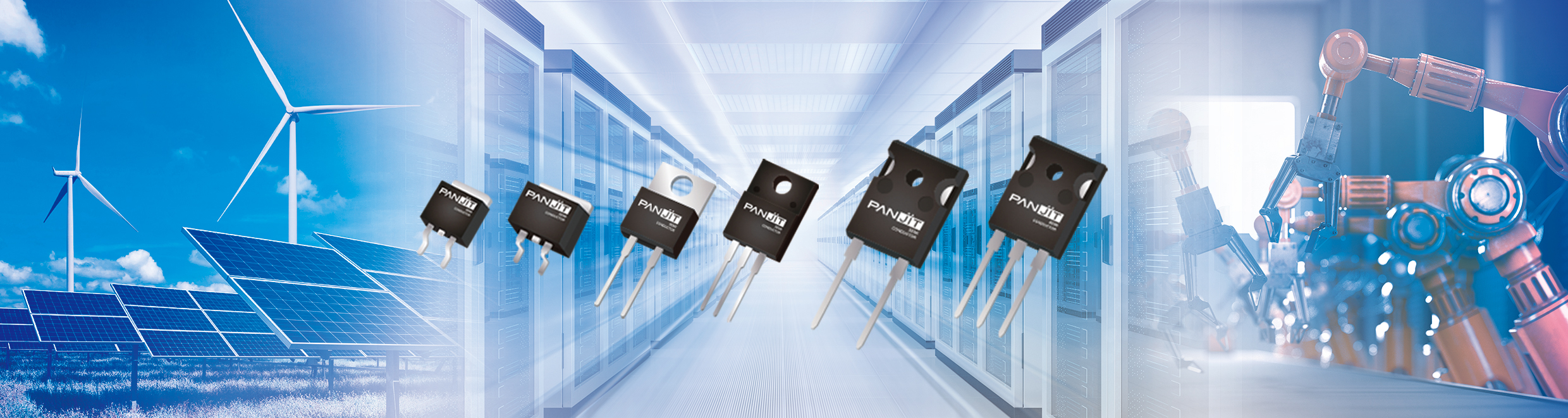

Rutronik is adding the Optima and Speedy high-voltage FRED types with 600 V and 1200 V, respectively, from PANJIT to its product range.
The power diodes improve the system efficiency of an application and are used for low-frequency (Optima) or high-frequency (Speedy) applications. They feature low leakage current and improved EMI characteristics. PANJIT FREDs are ideal for rectifier or freewheeling circuits in a wide range of power applications, such as UPS systems or data centres, but also household appliances.
The stability of power supply systems depends, among other things, on the electrical properties of the power diodes used. It is therefore important to use the exact FRED suitable for each application, keeping in mind the target switching frequency of the planned application. Optima-type FREDs are suitable for rectifier circuits such as high-power bridge diodes and bypass diodes, optimised for lower power losses at low VF, and predestined for low switching frequency applications. Speedy-FREDs, on the other hand, are more suitable for high-frequency freewheeling switching in CCM boost PFC and Vienna PFC to achieve maximum system efficiency. They convince with low reverse recovery time (trr) and optimised Vf, as well as better trade-off performance between Vf and the reverse recovery charge (Qrr).
More Features at a glance:
- Low leakage current
- Soft recovery characteristic for better EMI
- Best efficiency achievable
- Best combination with power switches
Possible applications:
- Power supply for servers, data centres, PCs, networks
- Energy storage systems
- Battery management systems
- Industrial motors
- Welding equipment
- Digital TV
- Inverters for photovoltaic systems
- Household appliances
