High power, low capacitance TVS array protects high speed data from ESD
ProTek Devices distributor Inelco Hunter has announced the availability of the new PTA03-3.3ULC device which is a high power, low capacitance TVS hybrid array gigabit ethernet protector.
It is designed to protect high speed data line applications from the damaging effects of ESD, EFT, and secondary transient threats.
The PTA03-3.3ULC is a differential-mode port, fast transient protection array that features low capacitance using a hybrid TVS and Thyristor structure. It offers even lower capacitance than its predecessor at 1.5pF (differential mode) @ TJ=75°C.
The protection device can withstand 2kW peak pulse power per 1.2/50us – 8/20us Surge Pulse.
The PTA03-3.3ULC allows for additional peak current handling capability and features a very low clamping voltage.

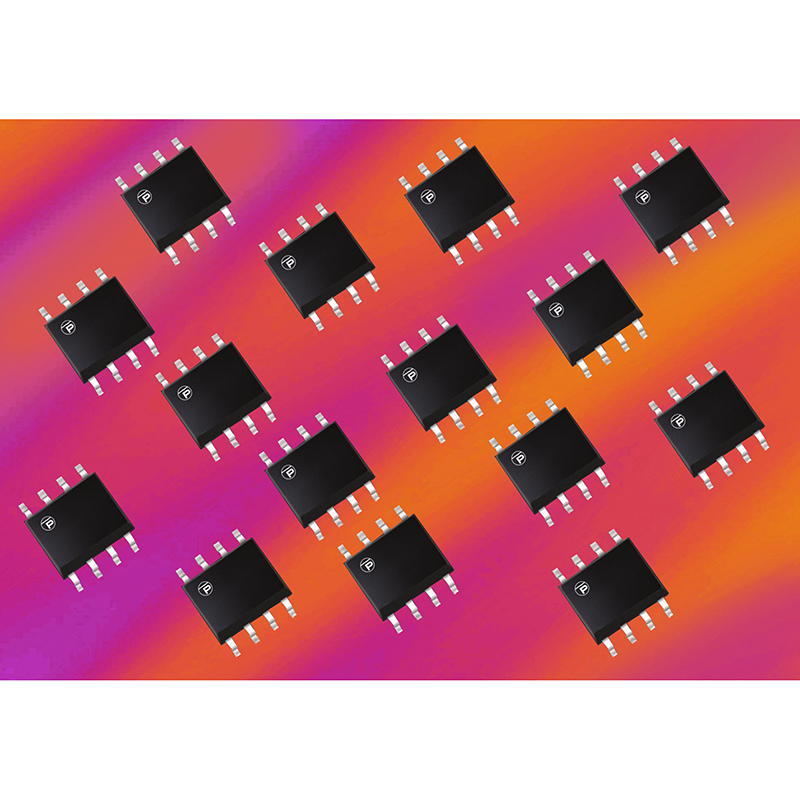

It is available in an SOIC-8 package configuration and the PTA03-3.3ULC will be used for gigabit ethernet applications in telecom equipment. The PTA03-3.3ULC protects a single data-line pair and can meet Bellcore GR1089 Surge requirements, also meeting IEC 61000-4-2, IEC 61000-4-4, and IEC 61000-4-5 circuit protection requirements.
Other applications will include: T1/E1 Line Cards, ISDN U-interfaces, ISDN S/T interfaces, YUSL interfaces, ethernet 10/100/1,000 Base T and set top box interfaces. Samples are available on request.
