Flex-ATX power supply with EN/UL 62368-1 supplies industrial mainboards

8th June 2023
Paige West
0

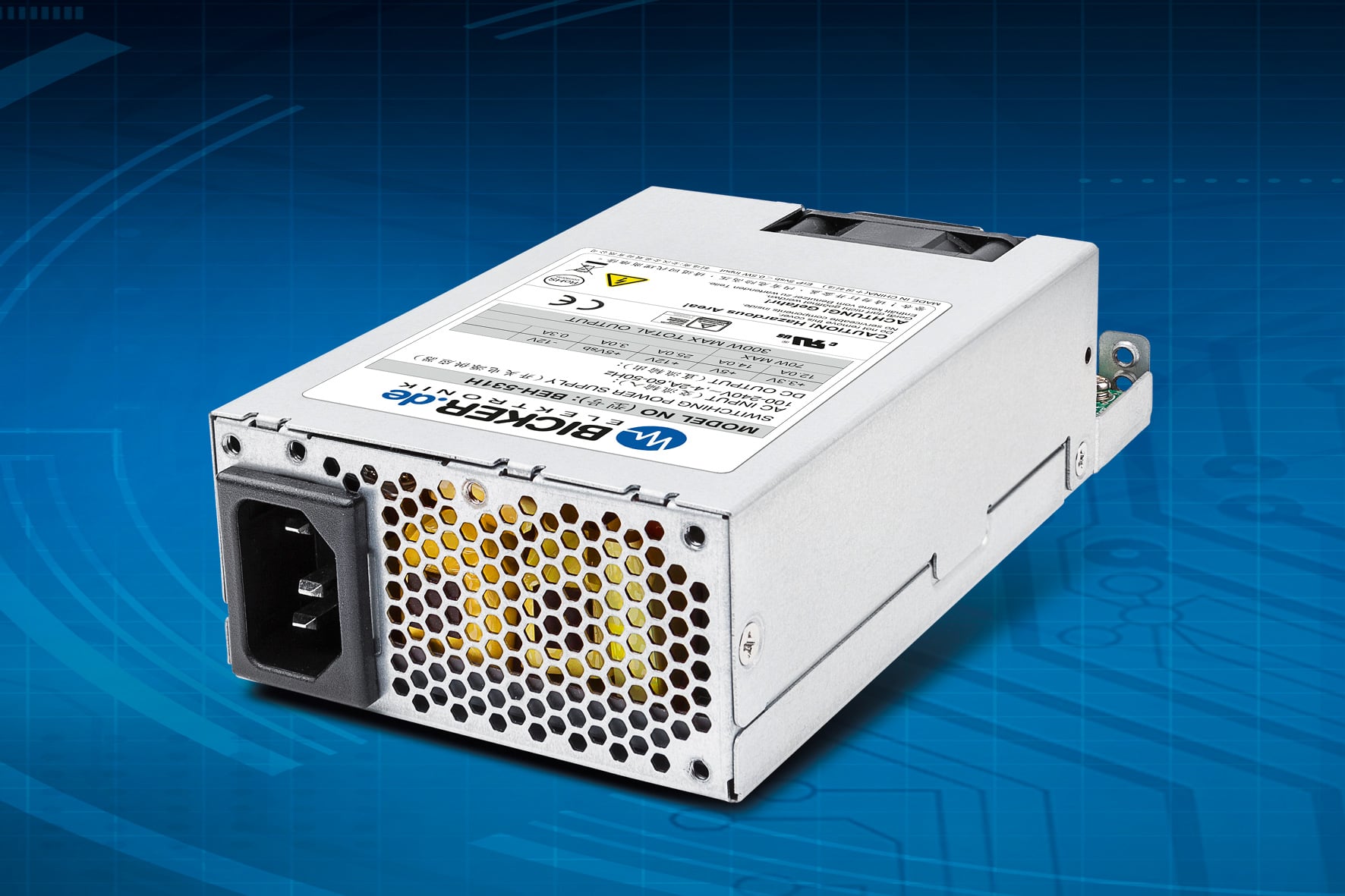

With the BEH-531H industrial PC power supply unit, Bicker Elektronik presents a compact and reliable Flex-ATX PSU for current industrial mainboards.

With an output of 300W and an extended operating temperature range of -10...+60°C, this IPC power supply convinces with high quality and a long service life. The exclusive use of high-quality components, such as +105°C brand capacitors, ensures maximum availability.

Industrial PC power supply for worldwide use

The BEH-531H does not require a base load at the precisely regulated ATX outputs (+3.3V, +5V, +12V, -12V, +5Vsb) and thus enables flexible use without restrictions. The power supply unit complies with the current safety approval EN/UL 62368-1 and is therefore ideally suited for international use. The wide range input of 90 to 264VAC with active power factor correction (PFC) ensures a reliable power supply in various environments. In addition, the BEH-531H meets the more stringent class B requirements of EN55032 thanks to its EMC characteristics.

Flexible load distribution enables a wide range of applications

The BEH-531H offers flexible load distribution to +3.3V, +5V and +12V. This makes it possible, for example, to use the full load of 300W completely at the +12V output. This opens up numerous areas of application and use with the BEH-531H that cannot be realised with other IPC power supplies. For maximum operational safety, the robustly constructed Flex-ATX power supply also has numerous safety functions such as overvoltage protection and short-circuit protection.

Particularly quiet operation

For particularly quiet operation, the highly efficient BEH-531H switched-mode power supply has temperature-controlled fan regulation for the brand-name fan with a diameter of 4cm, so that the speed and thus the noise development of the industrial PC power supply is always reduced to a minimum.

Flat 1U PSU design for demanding applications

The flat BEH-531H with 1U height (40.5mm) is the ideal power supply solution for compact industrial PCs or flat IPC server racks in 24/7 continuous operation. Customers can rely on the high quality, flexibility, and long-term availability of the particularly powerful industrial PC power supply unit. In addition to a long-term availability of at least five years, Bicker Elektronik grants a device warranty of three years on the BEH-531H.

All product advantages at a glance

  • Robust 300W industrial PC power supply
  • Compact Flex-ATX design
  • High efficiency up to 91%
  • No minimum load required
  • Operating temperature range -10...+60°C
  • Certified according to EN/UL 62368-1
  • Designed for 24/7 continuous operation
  • Low noise – temperature-controlled 4cm fan
  • Flexible load distribution to +3.3V, +5V and +12V enables a wide range of applications
  • Overvoltage and short circuit protection
  • Long-term availability at least five years
  • Three years warranty

Direct link to BEH-531H: https://www.bicker.de/en/beh-531h
