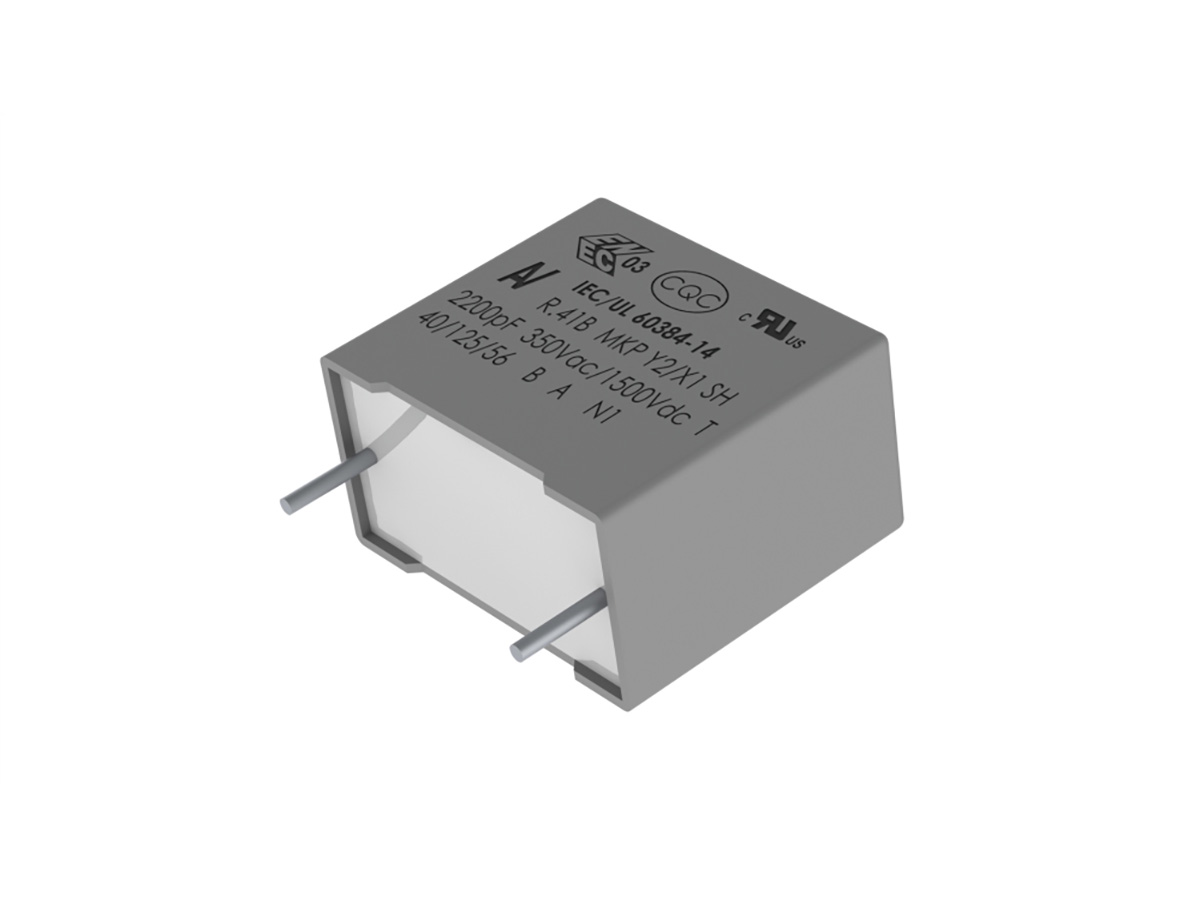

EMI suppression capacitors with KEMET’s R41B series
KEMET’s R41B EMI suppression film capacitor series complements Rutronik's product portfolio.
The capacitors have voltage ratings of 350 VAC (rated voltage) and up to 1500 VDC (rated DC voltage) and passed 1,000 hours of operation at rated voltage applied in the accelerated THB test at temperatures of 85°C and humidity of 85%. They offer the ideal solution for use in harsh environments and are also available in a halogen-free version on request at www.rutronik24.com.
The film capacitor range with protection class Y2/X1 is currently the first on the market to combine THB class IIIB with high operating temperature and high capacitance value while offering the smallest lead space of a minimum of 10 mm. The capacitors are made of metalized polypropylene film coated with self-extinguishing resin and are UL/ENEC/CQC certified. They are for use in a capacitance range of 2.2 nF to 1.2 µF and deliver a high-temperature capability of up to +125°C. In addition, they are AEC-Q200 compliant and intended for use in filters to suppress electromagnetic interference in "line-to-ground" (Y-capacitor) and ‘cross-the-line’ (X-capacitor) applications.
Features at a glance:
- Capacitance range from 0.0022 μF - 1.2 µF
- Smallest lead spacing with class IIIB
- Class IIIB according to IEC
- Suitable for harsh environments
- Automotive Grade (AEC-Q200)
- High-temperature capability from 125°C up to 2000h
Target Application:
- HVDC filter
- 5G SMPS
- Automotive Industry
- DC/DC and DC/AC converters
- Solar inverters and energy storage
