The three new DC-UPS modules for the CliQ M Series offer various output currents of 10A (DRU-24V10AMN), 20A (DRU-24V20AMN) and 40A (DRU-24V40AMN), and an input voltage range from 18 – 30VDC. They can support a battery charge at 18Vdc and a 150% power boost function in 24V systems. In addition, the charging current (optional) and the buffering time are selectable according to user needs.
The CliQ M battery module (DRN-24V7AAEN) is designed to support 2 x 12 V 7.2AH lead-acid batteries for 24V system as backup power. The battery module has a built-in battery voltage indicator to easily monitor the battery status during operation.
Over temperature protection is available when using the CliQ M battery module together with the DC-UPS modules. The combination also helps to extend battery life and makes a better power solution for uninterruptible systems in a range of applications, such as industrial automation, factory automation, and machine automation.

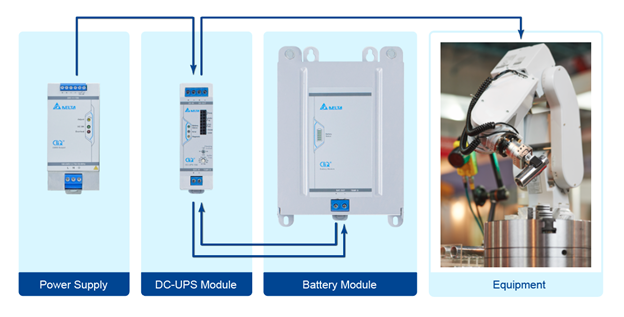

The CliQ M Series set for uninterruptible systems:
