Vishay introduces two new IHDM automotive grade edge-wound, through-hole inductors in the 1107 case size with soft saturation current to 422A.
Featuring a powdered iron alloy core technology, the Vishay Inductors Division’s IHDM-1107BBEV-2A and IHDM-1107BBEV-3A provide stable inductance and saturation over a demanding operating temperature range from -40°C to +180°C with low power losses and excellent heat dissipation.
The edge-wound coil of the devices released today provides low DCR down to 0.22mΩ, which minimises losses and improves rated current performance for increased efficiency. Compared to competing ferrite-based solutions, the IHDM-1107BBEV-2A and IHDM-1107BBEV-3A offer 30% higher rated current and 30% higher saturation current levels at +125°C. The inductors’ soft saturation provides a predictable inductance decrease with increasing current, independent of temperature.
With a high isolation voltage rating up to 350V, the AEC-Q200 qualified devices are ideal for high current, high temperature power applications, including DC/DC converters, inverters, on-board chargers (OBC), domain control units (DCU), and filters for motor and switching noise suppression in internal combustion (ICE), hybrid (HEV), and full-electric (EV) vehicles. The inductors are available with a selection of two core materials for optimised performance depending on the application.
Standard terminals for the IHDM-1107BBEV-2A and IHDM-1107BBEV-3A are stripped and tinned for through-hole mounting. Vishay can customise the devices’ performance – including inductance, DCR, rated current, and voltage rating – upon request. Customisable mounting options include bare copper, surface-mount, and press fit. To reduce the risk of whisker growth, the inductors feature a hot-dipped tin plating. The devices are RoHS-compliant, halogen-free, and Vishay Green.

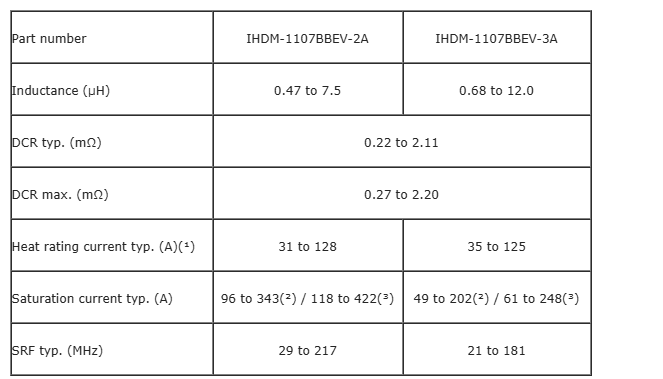

Device specification table:
(¹) DC current (A) that will cause an approximate ΔT of 40°C
(²) DC current (A) that will cause L0 to drop approximately 20%
(³) DC current (A) that will cause L0 to drop approximately 30%
Samples and production quantities of the IHDM-1107BBEV-2A and IHDM-1107BBEV-3A are available now, with lead times of 14 weeks.
