Understanding the advantages, limitations, and use cases of each technology helps engineers create reliable, space-efficient, and standards-compliant consumer products.
Consumer electronics continue to evolve toward higher power density, smaller form factors, and increased functional integration. From USB-C powered peripherals and battery-driven tools to smart home hubs and connected appliances, today’s designs must safely manage fault conditions without compromising usability, compliance, or cost targets.
Overcurrent protection plays a central role in meeting these demands. However, no single solution fits every application. Traditional fuses, resettable polymer PTCs (PPTCs), and electronic fuses (eFuses) each offer distinct advantages – and limitations – depending on operating voltage, current profile, environmental conditions, and system architecture.
This article provides a comparative, application-focused overview of these three protection technologies. By examining how each device behaves under real-world fault conditions, designers can make informed decisions that improve safety, reliability, and serviceability across a wide range of consumer electronic products.
Overview of overcurrent protection devices
Traditional fuses
Traditional fuses are single-use protection components that permanently open the circuit when exposed to current beyond their rated threshold. They operate by melting a conductive element when the heat generated from overcurrent exceeds a critical value.
Advantages:
• Simple, low-cost, and reliable
• Available in a wide range of voltage and current ratings
• Well-characterised trip curves
Limitations:
• Non-resettable: must be manually replaced
• Not ideal for hard-to-service or portable devices
• Larger fuses may consume valuable PCB space
Surface-mount fuses are available for compact, automated assembly in small devices such as Bluetooth speakers, handheld remote controls, or personal grooming products.
PPTC resettable fuses
Polymer Positive Temperature Coefficient (PPTC) devices offer self-resetting protection. They are made from conductive polymer material that dramatically increases in resistance when heated by excessive current.
Advantages:
• Automatic reset after fault clears and cool-down occurs
• Compact surface-mount formats
• Cost-effective for low-voltage applications
Limitations:
• Slower response time than fuses or eFuses
• Performance varies with ambient temperature and lacks repeatability after resets
• Limited to low-voltage, low-current circuits
PPTC devices are widely used in rechargeable battery packs, USB peripheral circuits, and in products with small DC motors, such as grooming tools and robotic vacuums.
eFuses (electronic fuses)
An eFuse is an integrated circuit that combines a power MOSFET with control and protection logic. An eFuse is designed for fast and precise overcurrent protection, and many models also include overvoltage protection, thermal shutdown, reverse current blocking, soft start, and fault reporting.
Advantages:
• Very fast response time
• Programmable current limits and fault thresholds
• Integrates multiple protection features in one device
• Remote reset and diagnostics
Limitations:
• More expensive than fuses or PPTCs
• Requires bias power and sometimes MCU integration
• Not suitable for high-voltage AC line applications
They are ideal for USB-C power delivery ports, embedded control modules, SSDs, and IoT hubs where compact, intelligent protection is necessary.

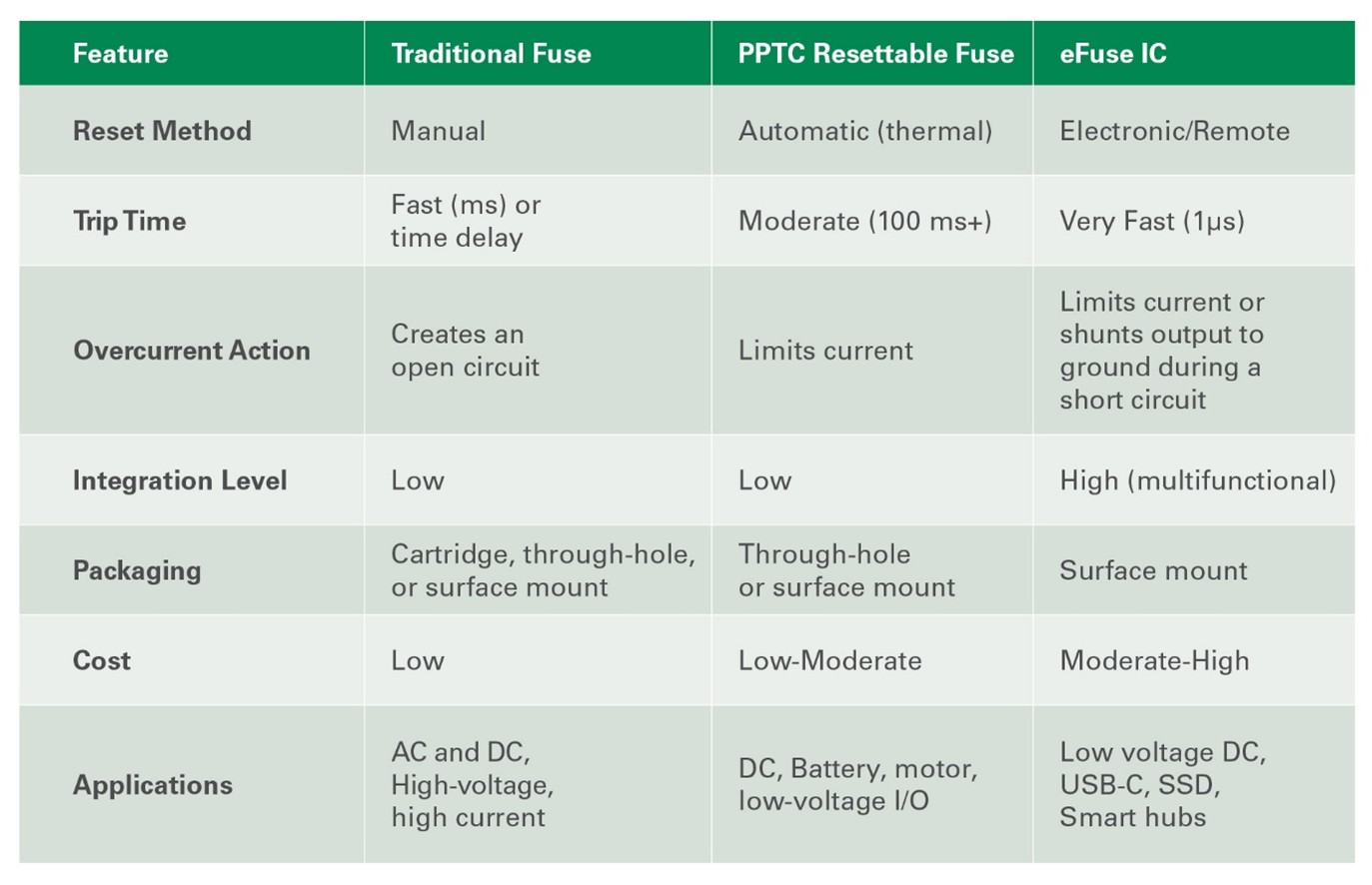

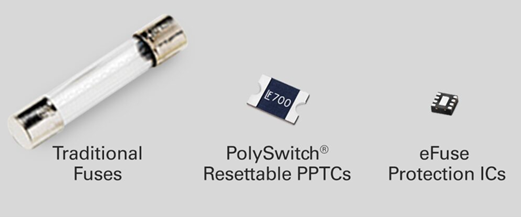

Figure 1 shows the three types of overcurrent component technology and their relative sizes. Table 1 summarises characteristics of each component type.
Technical comparison table
Application-specific design examples
1. Line-powered appliances

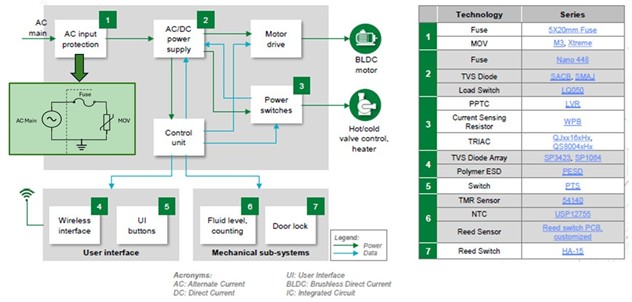

Line-powered devices require traditional fuses that are rated for AC line voltage operation. Typical line-powered devices include small and large appliances such as blenders, air fryers, washing machines, and dryers. Figure 2 illustrates a block diagram of a washing machine that requires various protection, control, and sensing components. The insert in the diagram shows the circuit representing the AC input block. The fuse provides the overcurrent protection with a voltage rating for the single-phase AC line voltage, and the MOV protects against AC line voltage transients. A time delay fuse can prevent nuisance fuse openings caused by startup inrush current.
Design tip: select a fuse with a room temperature current rating that is 133% of the maximum load current and that has been certified to UL 248-1.
2. Portable battery-powered devices
Devices such as consumer electric drills, portable fans, and grooming tools often include rechargeable lithium-ion batteries, small motors, and limited board space. PPTC resettable fuses are ideal for these applications due to their low-voltage ratings, resettable operation, and low cost. A PPTC can be used between the battery input and the motor controller (see Figure 3) to limit fault current in the event of a motor stall or wiring short. The PPTC device provides resettable overcurrent protection, while the MCU controls switching and monitors motor current.
Design tip: derate hold current based on ambient temperature and consider inrush current during charging or startup when selecting a PPTC device.
3. USB-C powered electronics
Products powered by a USB-C port – such as smart speakers, portable projectors, and high-end grooming tools – require compliance with USB-Type C power delivery (PD) negotiation standards and must handle wide input voltages (5 to 20V).
An eFuse is the best choice for these devices. An eFuse has multiple protection functions in a single integrated circuit with reverse current blocking to prevent a reverse current from damaging the circuitry. Models also can provide programmable current limits, short-circuit protection, overtemperature protection, undervoltage lockout, and seamless integration with power delivery (PD) controllers. Figure 4 details an eFuse protecting a USB-C port. The eFuse handles overcurrent and reverse current protection, while the PD controller negotiates power delivery with the host.
Design tip: select an eFuse with adjustable slew rate control to manage inrush current due to capacitive loads.
4. Smart home hubs and consumer IoT
These devices often use microcontrollers, Wi-Fi/Bluetooth modules, and external flash memory. Cable shorts, component failures, or ESD events can cause faults in these systems. For low-voltage digital circuits (3.3 or 5V), traditional fuses may not respond fast enough, and PPTCs may not trip reliably at currents just above hold current ratings. An eFuse with a 0.5 to 3A current rating combines fast overcurrent protection for sensitive ICs, overvoltage protection, overtemperature protection, inrush control, and undervoltage lockout control all in one component. An eFuse provides complete protection from electrical hazards while reducing component count and saving PC board space. Figure 5 shows the diagram of a basic eFuse and its application in monitoring a voltage rail.
5. Display panels and touchscreen electronics
Overcurrent protection in backlight circuits, capacitive touch controllers, or I/O ports must be responsive but not intrusive. PPTCs are commonly used in LED driver outputs, I2C/SPI data lines, and in circuits powering peripheral boards.
PPTCs offer the benefit of automatic reset without requiring user intervention. For circuits with user-accessible ports such as USB and HDMI data ports, pairing PPTCs with TVS diodes ensures comprehensive overcurrent and transient protection.
Discrete vs. integrated protection strategies
Designers have the option of ensuring complete protection for their circuits using discrete components or an integrated component approach. They may find that multiple options are beneficial in a product. The trade-offs are:
Discrete solutions
Combining a traditional fuse or PPTC with MOSFETs, diodes, and logic offers modular flexibility but increases component count and complexity. Use this approach to provide individual protection for different subsystems within a product.
Integrated eFuse solutions
An eFuse consolidates these functions, reducing layout complexity and improving MTBF (mean time between failure) by minimising the number of protection circuit components.

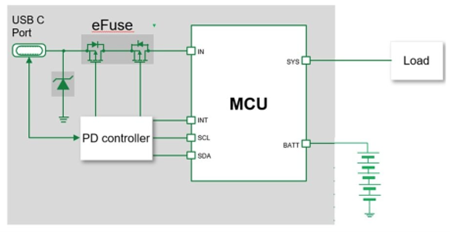

Figure 6 illustrates the two types of solutions. The PPTC-based discrete circuit offers configuration flexibility at the expense of PCB space, while the integrated eFuse circuit provides more fault protection features in a compact space.
An example where the different technologies are applicable in a single device is a smart appliance with multiple voltage rails. Designers may use:
• A traditional fuse on the primary AC or DC input
• PPTCs for low-power voltage rails
• An eFuse for the USB-C port or external I/O path
Thermal and environmental considerations
Designers should consider the environment in which their consumer product must operate. A challenging environment may dictate the type of overcurrent protection technology required. The characteristics of all electronics vary with temperature. An eFuse’s protection settings are less susceptible than PPTCs or traditional fuses to wide temperature swings. Products used in bathrooms, kitchens, or outdoors must be robust to moisture and vibration, which will influence package choice (e.g., conformal coating, sealed fuses).
Regulatory and compliance requirements
Designers need to be aware of the various standards, regulations, and communication protocol interoperability standards. Consumer electronics must meet:
• UL/IEC standards for safety and flammability
• EMC/EMI regulations for emissions and immunity
• USB-IF specifications for power negotiation
Mandated fail-safe open conditions require UL-certified traditional fuses. PPTCs, which are frequently UL-recognised, are suitable for IEC 60950/62368-compliant designs. An eFuse can help meet safety requirements via fault detection with programmable protection logic.
Selecting the right device: process framework
The following steps define a framework for selecting the most appropriate overcurrent protection technology for a design:
1. Define voltage and current envelope
• What is the normal operating voltage?
• What is the max load current? Inrush?
2. Identify the fault conditions to protect against
• Short circuits
• Overload
• Reverse current
• Transients
3. Determine the required reset behaviour
• Manual (fuse)
• Auto (PPTC)
• Software (eFuse)
4. Evaluate space, cost, and integration tradeoffs
• BOM cost
• PCB real estate
• Diagnostic capability
5. Review compliance and testing standards
• UL
• IEC
• USB-IF
• ISO
Conclusion
Selecting the appropriate overcurrent protection device is ultimately a system-level decision driven by application requirements rather than component preference. Factors such as operating voltage, fault response time, reset behavior, environmental exposure, and regulatory compliance all influence which solution delivers the best balance of protection and practicality.
Traditional fuses remain essential for primary power inputs and applications requiring a certified fail-safe open condition. PPTC devices provide a simple, resettable option for low-voltage circuits where convenience and cost are priorities. eFuses address the growing need for fast, programmable, and space-efficient protection in digitally controlled, power-dense designs.
By aligning protection technology with system architecture and usage conditions, engineers can design consumer electronics that are not only compliant and reliable, but also resilient to the increasingly complex electrical environments they operate in.
