They are cost-effective function/arbitrary waveform generators that combine multiple functions including Function Generator, Arbitrary Waveform Generator, White Noise Generator, Pulse Generator, Harmonic Generator, Analog/Digital Modulator, and Counter. The seven-digit counter has a maximum frequency input of 500MHz/1GHz, while the signal generator output, with its peak output of 20Vpp, features a wealth of internal and external modulation types, including Sweep, AM, FM, PM, ASK, FSK, PSK, and PWM. 148 built-in waveforms are available for engineering, medical, automobile, math, and other fields, and sequences of up to 64 waveforms can be created.
With their compact size (10.5” x 6.5” x 3.2”) and convenient 7” capacitive colour touchscreen, these instruments are very portable, making them useful for a wide range of working environments. These test instruments feature rear-panel VESA mount capability for saving valuable desk space, while for field use, they can be powered externally from a USB-C interface.

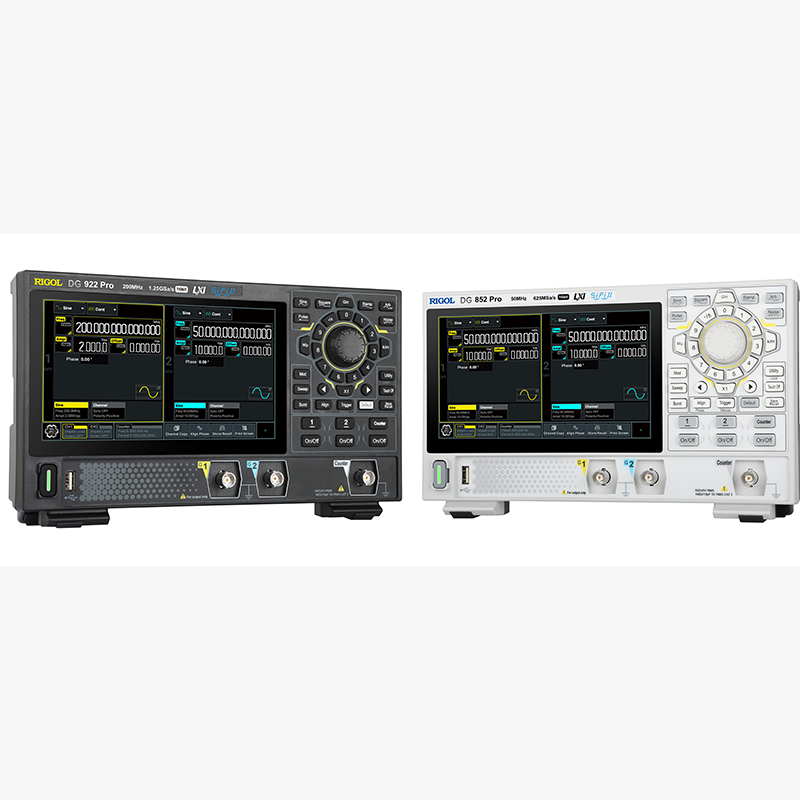

DG800 Pro / DG900 Pro product features:
- 6-bit vertical resolution
- Arb waveform editing max. length: DG800 Pro – 2Mpts/ch (opt. 8Mpts); DG900 Pro –16Mpts/ch (opt. 32Mpts)
- Built-in high-order harmonic generator (maximum 20th order)
- Independent signal frequency measurement channel with a max. freq. 500MHz/1GHz
- USB and LAN interfaces for remote connection
- Type-C power interface for mobile use
- Standard Web Control functionality for easy remote operation
- Models:
- DG821 Pro (1-ch 25MHz) DG822 Pro (2-ch 25MHz) DG852 Pro (2-ch 50MHz)
- DG902 Pro (2-ch 70MHz) DG912 Pro (2-ch 150MHz) DG922 Pro (2-ch 200MHz)
- Rigol DG800 Pro/DG900 Pro Function/Arbitrary Waveform Generators are available now from Saelig Company, Rigol’s USA technical distributor.
