Memory

Industrial M.2 NVMe SSDs

11th April 2024
Sheryl Miles
0

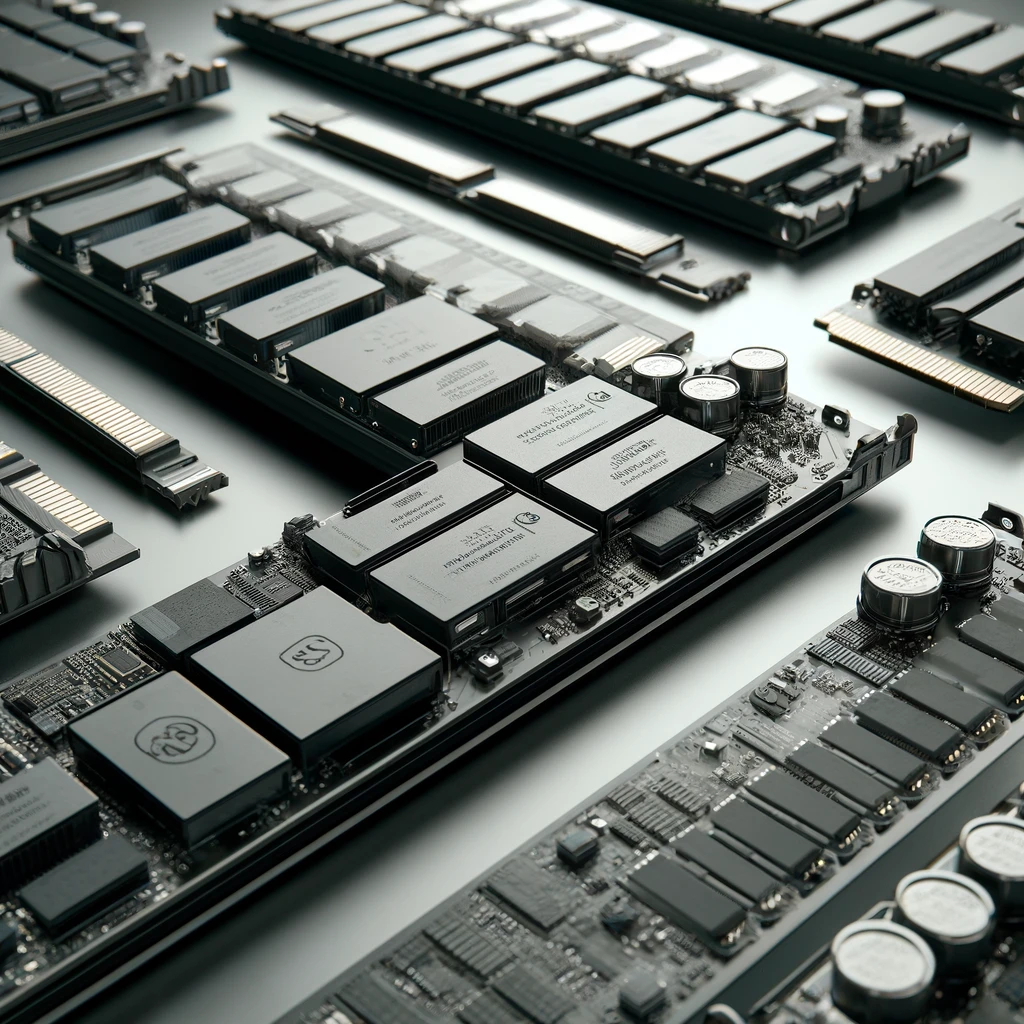

Cervoz Industrial M.2 NVMe SSDs are engineered to surpass standard SSDs in performance and reliability.

Designed specifically for industrial demands, they combine the compact M.2 form factor with the PCIe interface and NVMe technology. This fusion results in faster data transfer, lower latency, and improved scalability, perfect for challenging industrial applications.

Key features of Cervoz Industrial M.2 NVMe SSDs

High-speed data access: NVMe outperforms SATA with PCIe Gen3 and Gen4, offering up to 26 times faster transmission. It provides low latency and efficient processing by connecting directly to non-volatile memory via PCIe.

Versatile storage: compatible with mainstream form factors, including M.2 2230, 2242, 2280, NVMe supports diverse applications, especially in limited spaces like fanless pc or embedded systems, with storage options up to several terabytes.

Thermal management: integrated hardware-software solutions effectively manage heat to maintain high-speed performance and reliability. Offering specialised heatsinks and graphene padding for hardware cooling. The firmware includes Dynamic Thermal Throttling technology that adjusts performance based on temperature thresholds. Additionally, in-house software, FlashMonitor, monitors SSD temperature, and sends alerts when necessary.

Rugged design: optimised for industrial applications, these SSDs endure extreme temperatures (–40°C to +85°C) and feature conformal coating and anti-vibration filling, ensuring reliable performance in environments with vibrations, heat, humidity, and shock.

Optimal durability: Cervoz's M.2 NVMe SSDs utilise Static and Dynamic Wear Levelling and a DRAM Cache Buffer to enhance product longevity and ensure reliable performance.

Data integrity and reliability: the product line featured with advanced Powerguard technology, providing additional power during sudden power failure, AES-256-bit encryption and end-to-end data protection to secure data integrity and security.

Tailored recommendations: NVMe is ideal for high-speed tasks in servers and Cloud computing. Cervoz's overheating prevention technologies maintain performance while ensuring reliability.

Applications of industrial M.2 NVMe SSDs

Industrial M.2 and NVMe SSDs are crucial in real-time process monitoring, high-frequency data logging in autonomous systems, and Edge computing for AIoT deployment. Their rapid data processing capabilities are essential in time-sensitive and data-heavy applications. The compact M.2 form factor makes these SSDs ideal for space-limited settings in embedded systems and industrial PCs.

Cervoz's range of industrial M.2 NVMe SSD products cater to embedded application needs. These SSDs are distinguished by their fast data transfer rates, reduced latency, and enhanced efficiency, especially in reliability-critical industrial contexts.

Industrial M.2 NVMe SSDs form factors and interfaces

Cervoz's Industrial M.2 NVMe SSDs are tailored for embedded and compact storage applications, offering a variety of solutions, designed in accordance with the most closely aligned market demands.

PCIe Gen3x2

T425 family

  • Form Factor: M.2  2230, 2242
  • Connector: M.2 2230 (A+E), M.2 2230  (B+M), M.2 2242 (B+M).
  • NAND flash type: 3D TLC
  • Capacity options: 64GB to 1TB
  • Sequential speeds: up to 1,555MB/s Read, 1,425MB/s write
  • Note: the M.2 2230 (A+E key) connector utilises a non-standard slot, enabling storage expansion in compact PCs without impacting other functionalities.

T421 family

  • Form factor: M.2 2242
  • Connector: M.2 (B+M)
  • NAND flash type: 3D TLC
  • Capacity range: 120GB to 1920GB
  • Sequential seeds: up to 1,780MB/s Read, 1,640MB/s write

PCIe Gen3x4

T405 family

  • Form factor: M.2 2242, 2280
  • Connector: M.2 (M)
  • NAND flash type: 3D TLC
  • Capacity range: 64GB to 1TB
  • Sequential speeds: up to 2,065MB/s Read, 1,660MB/s write

T435 family

  • Form factor: M.2 2242, 2280
  • Connector: M.2 (M)
  • NAND flash type: 3D TLC
  • Capacity range: 128GB to 1TB
  • Sequential speeds: up to 2,085MB/s Read, 1,840MB/s write
  • Special feature:
  • DRAM Buffer technology: employs specially-designed DRAM chips functioning as a cache in a hard disk, optimising storage efficiency, prolonging lifespan, and reducing operating costs.
  • Powerguard: A key feature in Cervoz’s comprehensive PLP (Power Loss Protection) technology suite. It provides additional power during sudden power outages to sustain write operations, thus protecting data integrity and firmware.

PCIe Gen4x4

T441 Family

  • Form factor: M.2 2280
  • Connector: M.2 (M)
  • NAND flash type: 3D TLC
  • Capacity range: 240GB to 1920GB (standard temp.); 240GB to 960GB (wide temp.)
  • Sequential speeds: up to 3,445MB/s Read, 1,000MB/s write
  • Special feature:
  • DRAM Buffer technology: employs specially-designed DRAM chips functioning as a cache in a hard disk, optimising storage efficiency, prolonging lifespan, and reducing operating costs.

PCIe Gen4x4

T441 family

  • Form factor: M.2 2280
  • Connector: M.2 (M)
  • NAND flash type: 3D TLC
  • Capacity range: 480GB to 3840GB
  • Sequential speeds: up to 7,100MB/s Read, 6,190MB/s Write
  • Special feature:
  • DRAM Buffer technology: employs specially-designed DRAM chips functioning as a cache in a hard disk, optimising storage efficiency, prolonging lifespan, and reducing operating costs.
