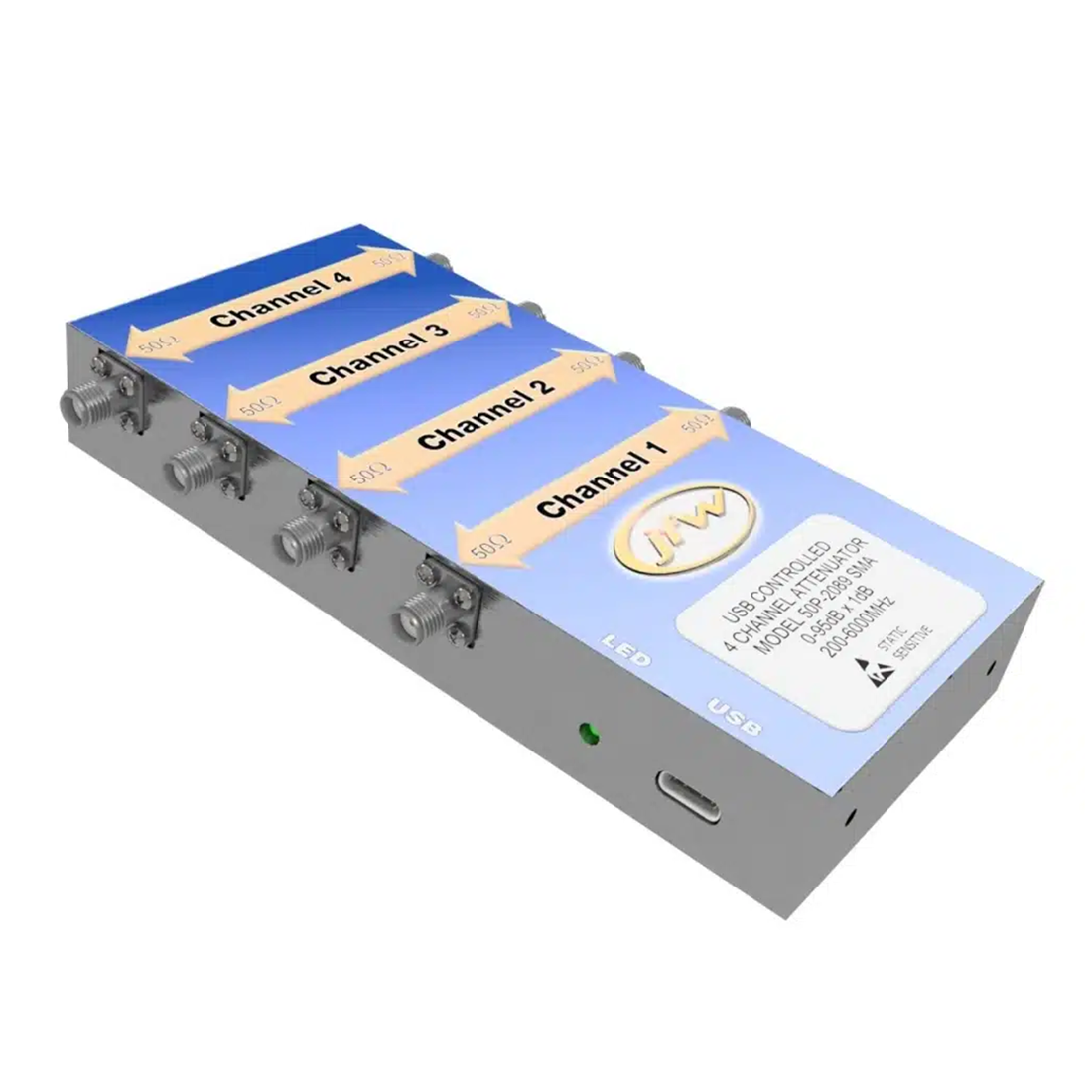

JFW model 50P-2089 SMA operates from 200-6000Mhz with attenuation range 0 to 95dB by 1dB steps. All four attenuators are individually controlled. Test software is provided with the USB attenuator.
USB test software features:
- Test software manual available for download
- Auto-discovery of any JFW USB attenuators connected to the computer
- Control attenuator(s) using a slider bar, increment buttons, or manually entering the attenuation value
- Set persistent device names for better organisation of complex test scenarios
- Create test scripts that can control many attenuators
- Fade and Handover commands can be executed in Sequential or Synchronous mode
- Saving and Loading of scripts in JSON format
- Requires Microsoft Windows Vista or greater
- Requires Dot Net Framework 4.0 or greater
