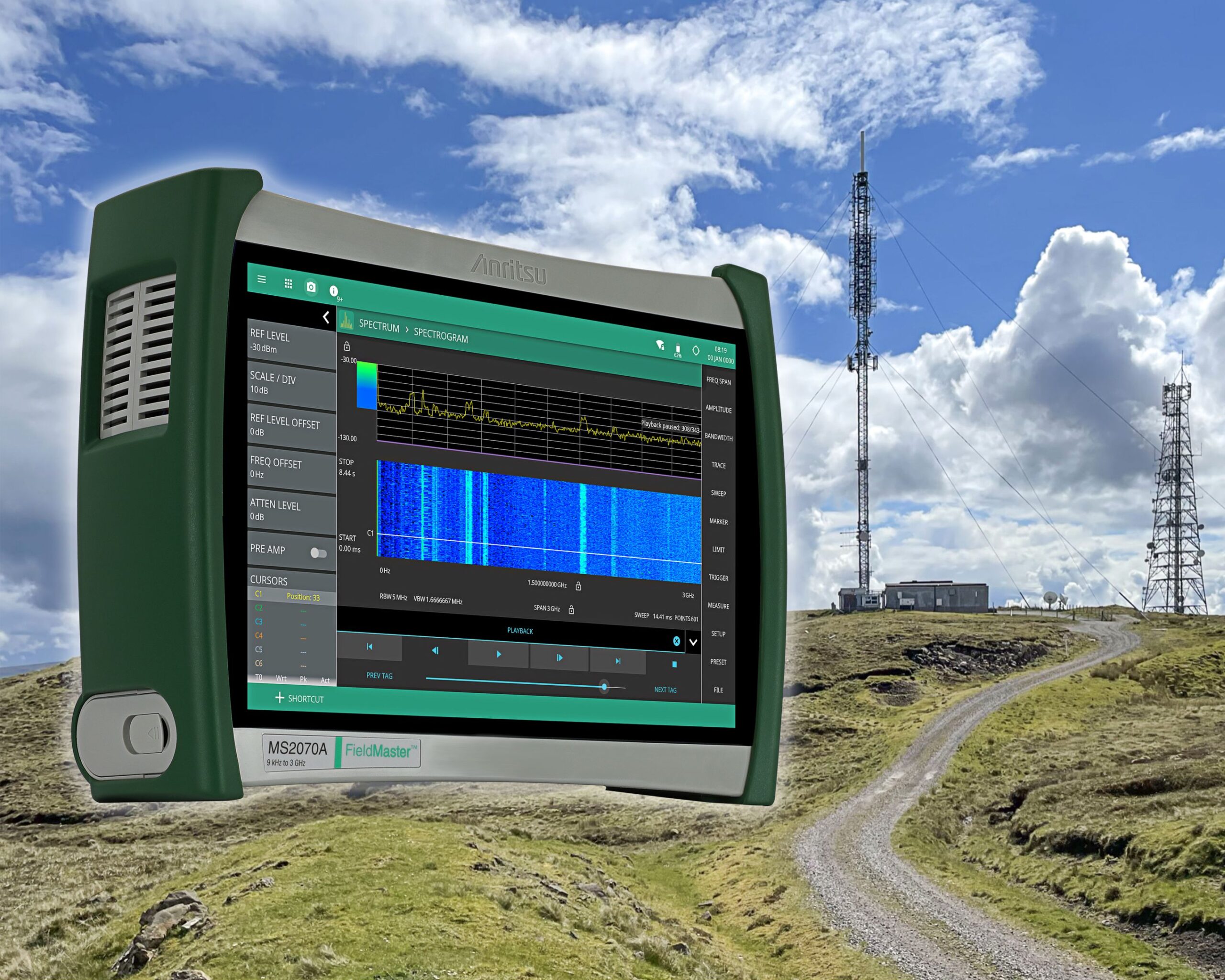

Anritsu introduces Economical Field Master

With dynamic range of >105dB at 2.4GHz, typical DANL with a built-in optional preamplifier of -167dBm, coupled with a Third Order Intercept (TOI) of +11dBm, and typical level accuracy of ±0.5dB enable a full range of signals to be analysed by the handheld spectrum analyser.

The MS2070A is designed for standard swept spectrum analysis up to 3GHz. It features sweep speeds of up to 32GHz/s in common low noise configurations. A number of "smart" measurements, including occupied bandwidth (OBW), channel power, and adjacent channel power (ACP), are standard in the Field Master MS2070A.

Wide Set of Standard Features
The Field Master MS2070A provides many capabilities typically found in higher priced instruments. A zero span displays TDD and pulsed signals with narrow resolution bandwidth (RBW) of 10Hz to 5MHz for accurate measurements of power over time. Spectrograms are also standard for accurate detection of intermittent interferers.

As many as 6 traces can be set simultaneously with different detectors. Averaging can be applied to each, as well. Up to 12 markers are provided, so signals of interest can be highlighted and monitored how they vary over time, relative to themselves and other signals. Alerts for new interfering or lost signals are generated automatically. For long-term spectrum monitoring applications, the MS2070A has upper/lower, envelope, and alarm limits standard.

Designed for Harsh Environments

A ruggedised battery-powered instrument, the Field Master MS2070A has IP52 environmental protection when it is contained in the supplied soft carry case. A 5-watts RF input damage level protects the instrument from accidental overpower.

The handheld spectrum analyser also has a durable IK08-rated 10-inch display with 1280x800 resolution that displays measurement results in large and clear formats. Common functions are always accessible and side menus collapse to maximize graphical results, as well.

The MS2070A measures 290 x 212 x 96 (mm) and weighs 3.8kg Its compact size and light weight make it easy to transport the handheld analyser to remote sites.

Ethernet and USBTMC interfaces are standard on the Field Master MS2070A. A Wi-Fi 802.11b/g/a/n interface is available as an option to connect to wireless routers for common applications, including downloading digital maps and automatic software updates.

Field and Bench Use
The Field Master MS2070A can be used for a variety of field applications. It can conduct basic transmitter testing, as well as interference hunting. Cellular network operators can configure the MS2070A with a PIM stick for PIM hunting, as well. In lab and manufacturing environments in which portability and space are at a premium, the MS2070A can be used for standard RF measurements.
