New incremental encoder supports larger shaft sizes

1st February 2023
Kristian McCann

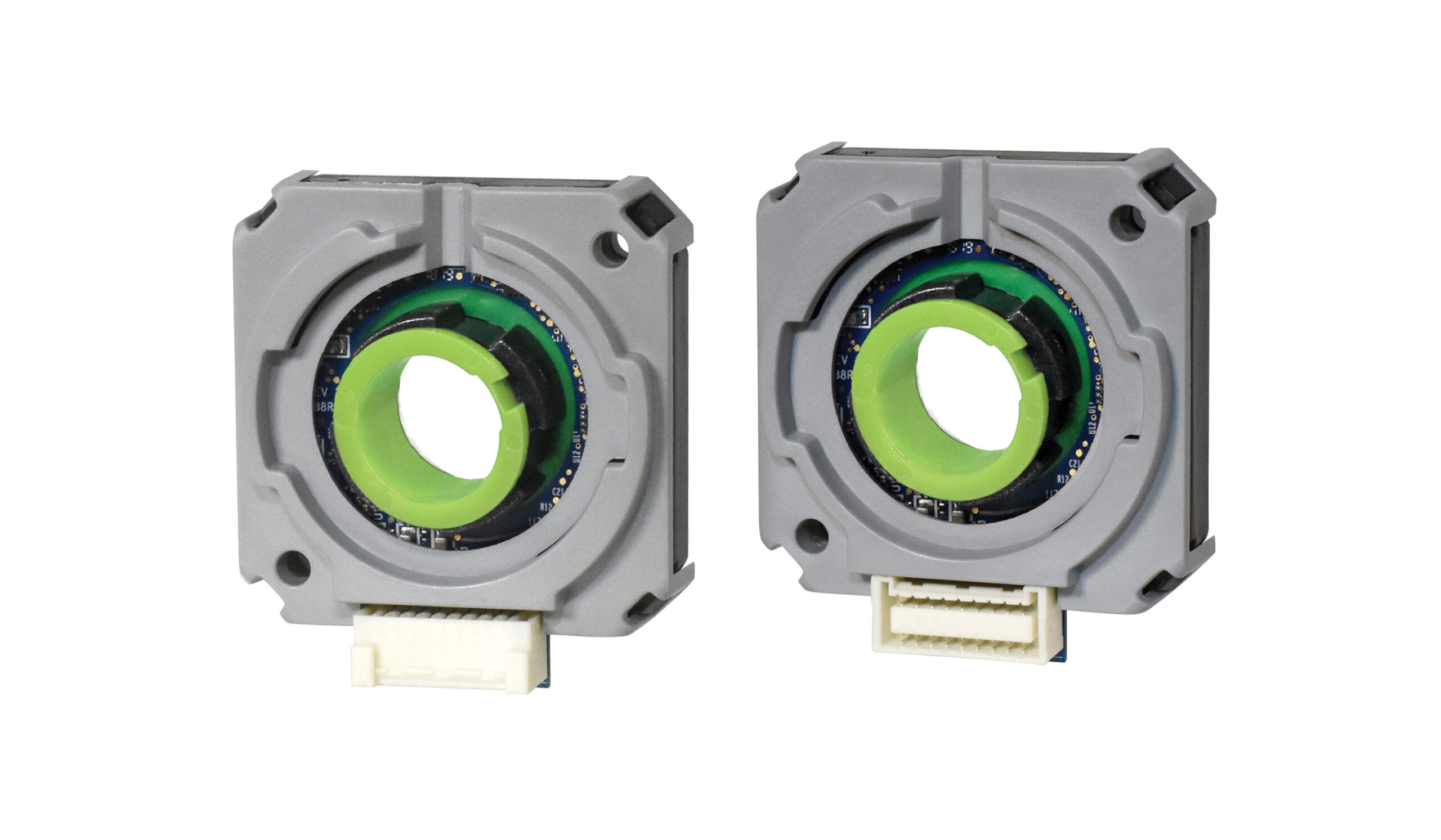

CUI Devices' Motion and Control Group have announced the introduction of a new series to its AMT incremental encoder family. Based on the existing AMT13 series package, the new AMT13A series is not subject to silicon related lead time constraints and can serve as a drop-in replacement for AMT13 encoder models. AMT13A encoders offer 16 quadrature resolutions from 96 to 4096 PPR, selectable via an on-board DIP switch, while supporting larger motor shaft sizes from 9mm to 15.875mm (5/8 inch).


Thanks to CUI Devices' proprietary capacitive ASIC technology, the AMT13A series delivers durability, accuracy, and immunity to environmental factors. It features compact radial and axial package types with a locking hub for ease of installation and low power consumption of 8mA at 5V. The AMT13A series also carries an operating temperature range from -40 to 125°C and offers differential line driver versions.

The AMT13A-V kit affords users further flexibility during development and design with the inclusion of 9 different sleeve bore options from 9mm to 15.875mm and three simple mounting tools. These all-in-one kit components combine to simplify the installation process onto a motor and greatly reduce SKU count in production.
