All-in-one display with customisable interface at Rutronik

20th January 2025
Sheryl Miles
0

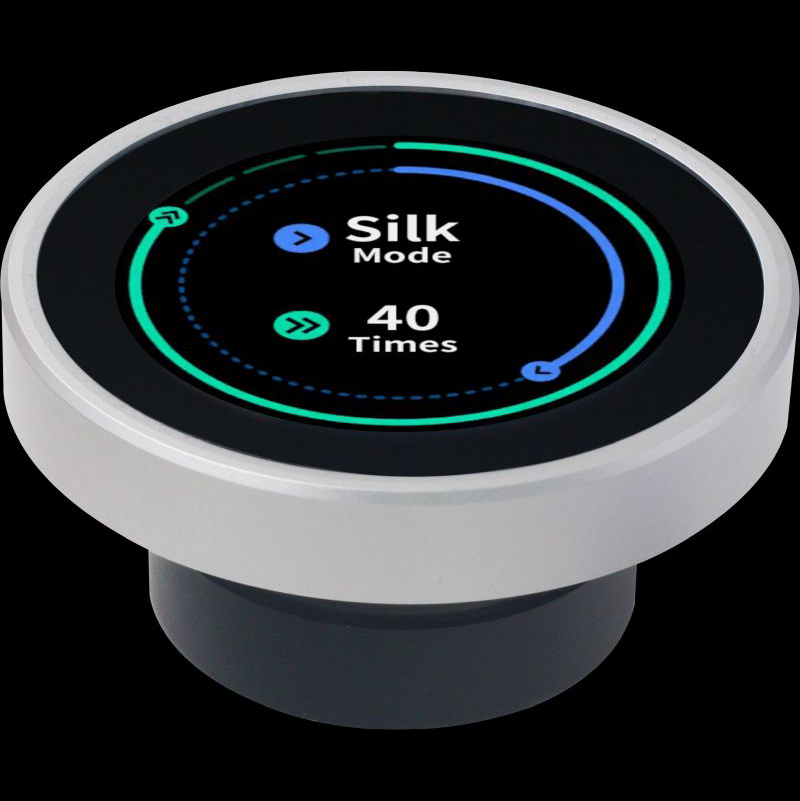

In the displays segment, Rutronik is expanding its portfolio to include the DLC0210RHCS-1 from DLC Displays, a round TFT display with an integrated rotary knob, a resolution of 480 x 480dpi, and a user interface (UI) that can be customised.

With a size of 2.1” (53.34mm), the displays have a very narrow rim, which reduces the viewing area to 53.28mm. They are ideal for use in consumer applications, industrial control, or electrical devices.

The round display has a maximum colour depth of 16.7M colours (RGB), a typical brightness of 300cd/m2 and, thanks to IPS technology, is impressively easy to read in all directions. The HMI module operates reliably at an operating voltage of 5V and at operating temperatures of –20°C to +70°C. The module is controlled via the serial UART interface.

Benefits at a glance:

  • 5V power supply
  • Resolution of 480 x 480 pixels
  • Typical brightness 300cd / m3
  • Maximum colour depth of 16.7M colours
  • Operating temperature range: –20°C to 70°C
  • Serial UART
  • Background lighting: LED

Application examples:

  • Small consumer appliances, e.g.
    • Electric cookers
    • Coffee machines
    • Mopping machines
  • Automation
    • Instrumentation, e.g., fill levels, temperature, pressure
  • Industrial control
  • Electrical power equipment
