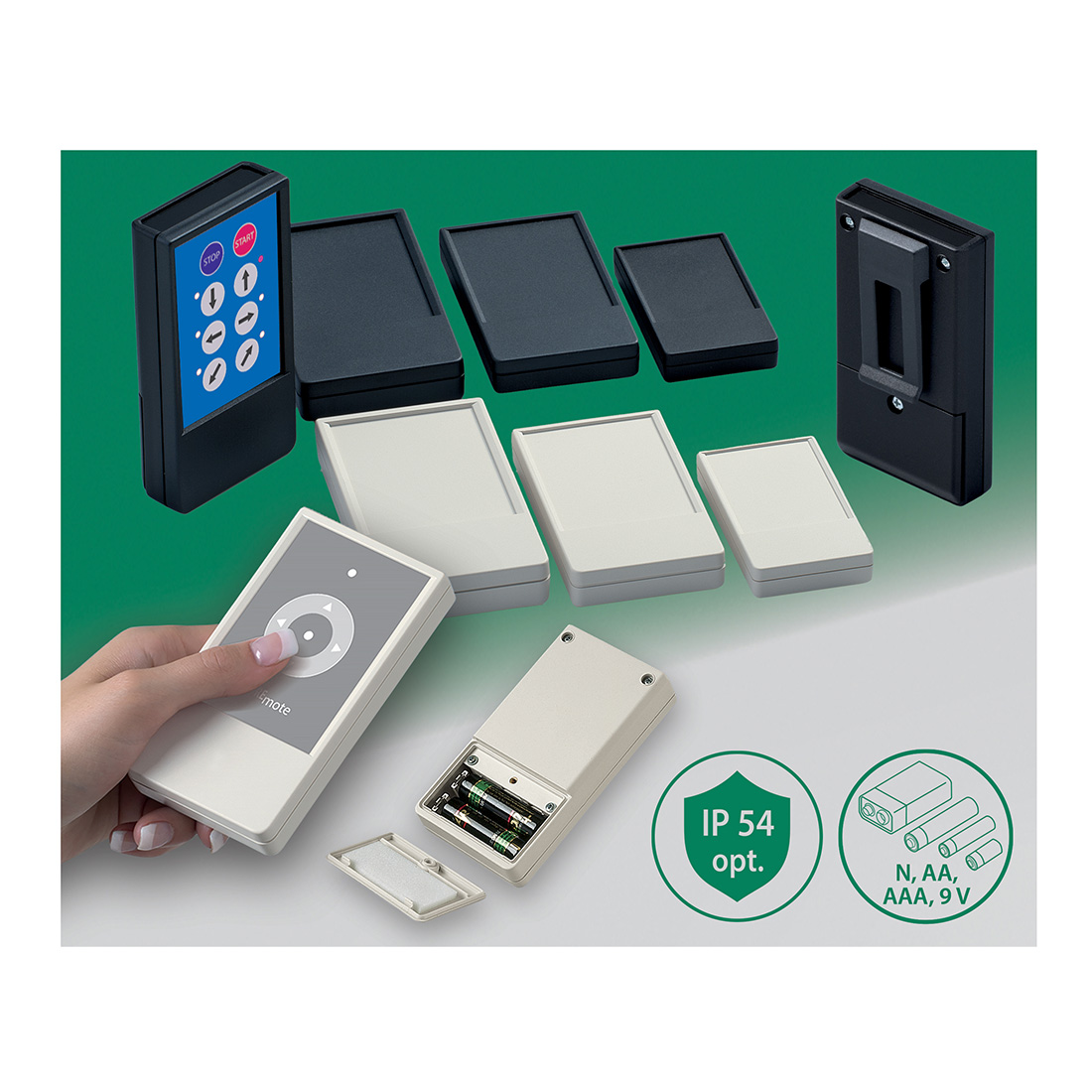

These pocket-sized plastic enclosures are ideal for measurement and control, remote controls, pulse generation for ultrasound and infrared, sensors, optoelectronics, mobile data recording and wireless communications.
Ergonomic DATEC-POCKET-BOX’s thin profile makes it comfortable to hold, with easily machinable flat surfaces for adding interfaces. The operating area is recessed to protect a membrane keypad or product label. The front face is clearly polished (sizes M, L) for efficient infrared signals. Inside, there are internal fastening pillars for PCBs.
DATEC-POCKET-BOX can be specified in either ABS or infrared-permeable PMMA (both UL 94 HB), and with or without IP 54 ingress protection as standard. There are three sizes: S (85 x 46 x 16 mm), M (105 x 58 x 18.5 mm) and L (120 x 65 x 22 mm). The standard colours are off-white (RAL 9002) and black (RAL 9005).
Accessories include belt/pocket clips, battery clips, a battery spacer, plug-in contact (9 V), ring eyelet, and self-tapping screws for mounting PCBs.
OKW can supply DATEC-POCKET-BOX fully customised. Services include machining, lacquering, printing, laser marking, decor foils, special materials, EMC shielding and installation/assembly of accessories.
