Low profile SMD common mode chokes

5th June 2023
Harry Fowle
0

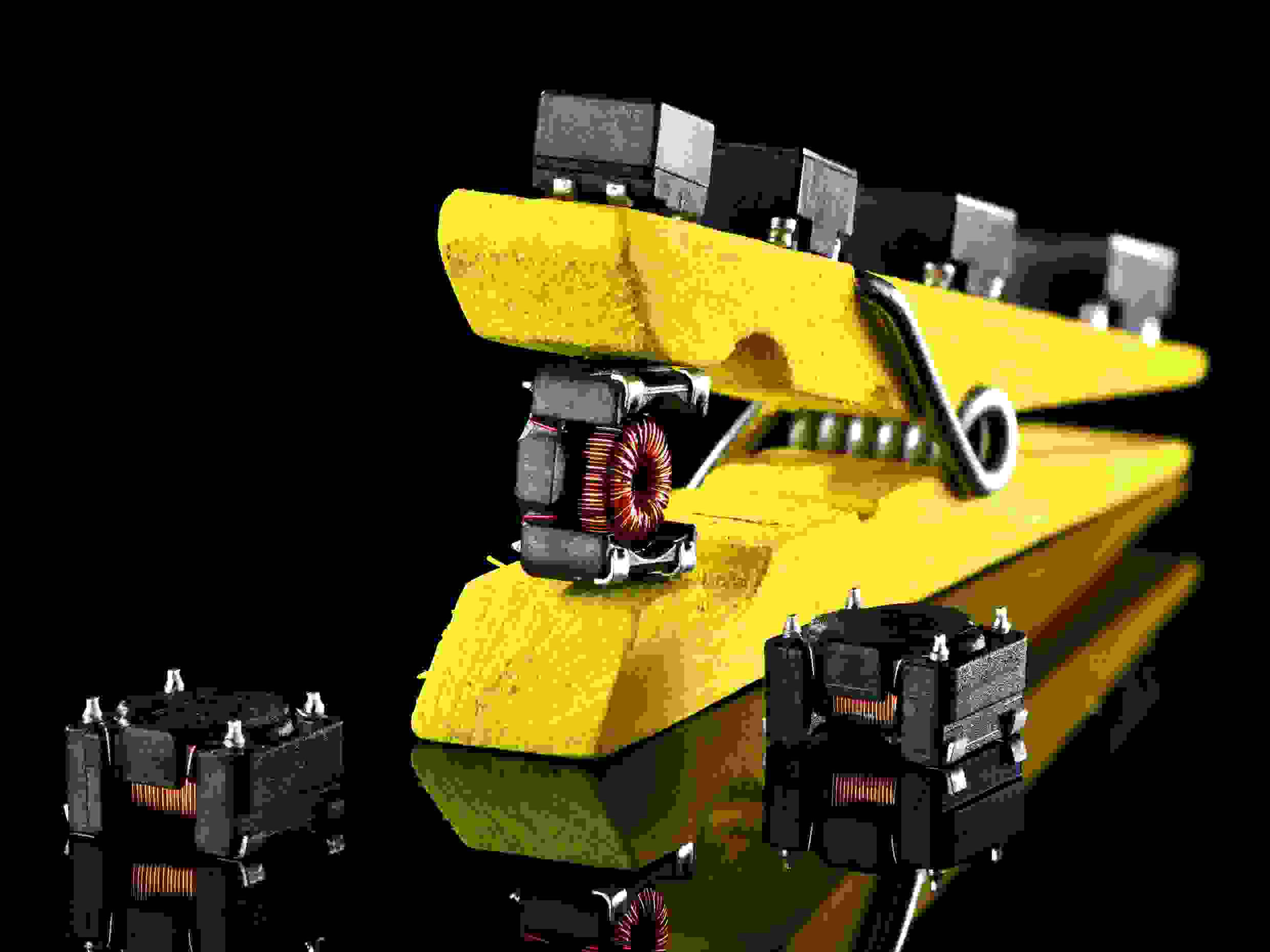

knitter-inductive implemented the new W-Series of low-profile SMD Common Mode chokes for noise suppression on the market.

The Common Mode Chokes of the W-Series are available in four different mechanical sizes, from 6.5 x 3.6 x 2.0mm up to 10.0 x 8.7 x 6.5mm. A high current carrying capacity up to 5.0A is one of the key features of this series.

Two different winding styles of sectional and bifilar winding offer many options, such as very low differential mode attenuation or high isolation between the windings.

The main operating fields of the knitter-inductive Common Mode Choke W-Series are Signal and Data lines, as well as CAN Bus and SMPS applications. Additionally, the rated voltage of 80V and operating frequencies from kHz to MHz make the CMCs suitable for many more application areas.

The standard operating temperature range of the SMD Common Mode chokes W-Series is -40°C to +105°C/+125°C depending on mechanical size.

The Common Mode Chokes are packed in Tape&Reel for a cost-efficient and fast assembling process on the customer side.
