Avalue launches the latest hybrid design 3.5-inch embedded SBCs

It supports not only Intel 12th Generation Core i7/i5/i3/ Pentium/Celeron processors, but also Intel 13th Gen i5/i3 processors LGA 1700 CPUs up to 35W. The S-series processors feature a new hybrid design that combines Performance-cores and Efficient-cores for multi-threaded performance, delivering a superior experience for gaming, content creation, virtual reality, retail terminals, digital security systems, healthcare, and more.

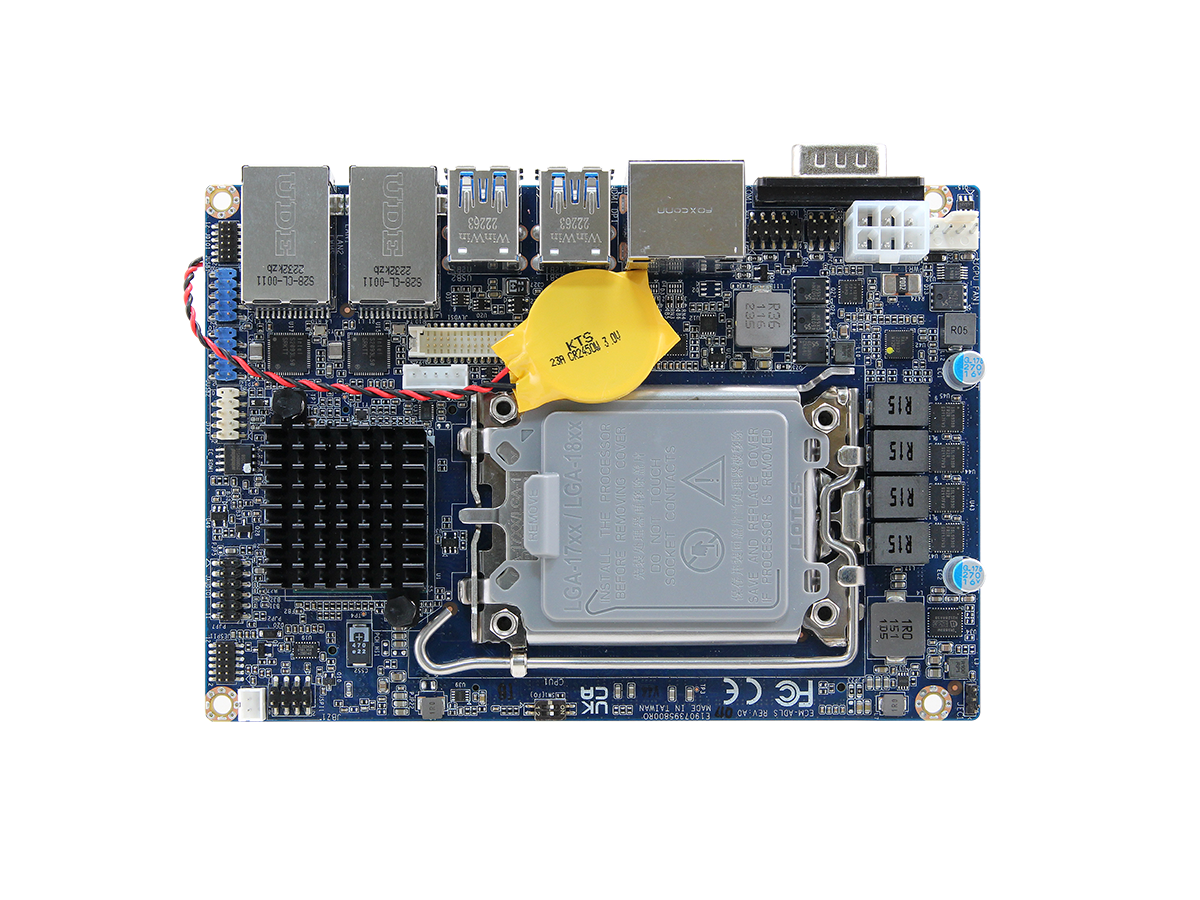

The ECM-ADLS, a 3.5-inch single board computer, features supporting for both Intel 12th & 13th generation processors with LGA 1700 CPU socket, which is the first Avalue 3.5" SBC to incorporate DDR5 design. It also offers extensive I/O support, including 4 x USB 3.2, 4 x USB 2.0, 2 x COM, 1 x 8-bit GPIO, 2 expansion M.2 slots: E key support 2x PCIe x1 Gen 3, USB 2.0 for Wi-Fi module connection, M key support PCI-e x 4 Gen 3 NVMe or SATA device for storage, 2 high-speed 2.5G Ethernet transmission. In addition, ECM-ADLS supports triple display: 1 x HDMI, 1 x DP and also 18/24-bit 2-CH LVDS or eDP share the same connector by BIOS selection (default LVDS).

With its impressive features and robust performance, ECM-ADLS proves to be a versatile and reliable choice for retail, automation, vending machine, POS/KIOSK, signage and industrial transportation applications.

ECM-ADLS main features:

• Intel 12th Gen Core 19/17/i5/i3/Pentium/Celeron Processor supports LGA 1700 CPU Up to 35W Max
• Intel 13th Gen CoreTM i5/i3 Processor, supports LGA 1700 CPU Up to 35W Max
• Intel Q670E/H610E chipsets
• Single 262-pin DDR5 4800MHz SO-DIMM socket, support up to 32GB.
• Triple Display: 1 x DP++, 1 x HDMI, 1 x 2CH LVDS or 1x eDP (Default LVDS)
• Expansion Slot: 1xM.2 Key-E, 1xM.2 Key-M
• 2 x RS-232/422/485, 4 x USB 3.2 Gen 2 (note: H610E USB 3.2 Support 2x Gen 2 & 2x Gen 1), 4 x USB 2.0
• Two Intel Gigabit Ethernet: 2 x 2.5GbE (1226LM)
• Realtek ALC888S Audio Codec
• DC +12V Voltage Input
