Dipole antennas perform in the rugged outdoors

With a frequency range of 617 MHz to 7.1 GHz and a gain rating of up to 8.7 dBi, the new outdoor antennas deliver robust performance for a range of wireless cellular, Wi-Fi, and LPWA / ISM applications.

The IPW Series provides ground-plane independent dipole antenna solutions capable of mounting permanently to both metallic and non-metallic surfaces.

The ANT-W63-IPW3-NP Wi-Fi 7/6/6E outdoor whip antenna is designed for 2.4 GHz, 5 GHz, and 6 GHz bands supporting Wi-Fi 7, Wi-Fi 6, and Wi-Fi 6E.

It is housed in heat- and chemical-resistant, UV-stabilised ABS and connects using an N plug connector.

In addition to extensive Wi-Fi and WLAN coverage, the ANT-W63-IPW3-NP outdoor antenna offers reliable connectivity for Internet of Things (IoT) devices, smart home networking and remote monitoring.

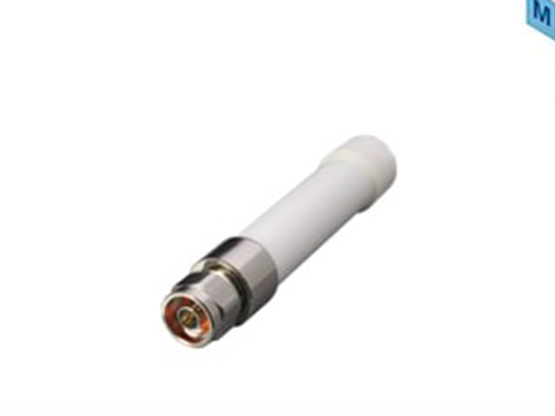

The ANT-8/9-IPW3-NP outdoor LPWA antenna is designed for use in the 868 MHz to 915 MHz frequency range, and is an ideal choice for low-power, wide-area (LPWA) applications. Exceptional low-power performance makes it a suitable option for remote control, monitoring, and sensing applications.

The ANT-5GW-IPW3-NP outdoor cellular sub-6 5G antenna offers reliable performance for 5G New Radio, LTE, and cellular IoT applications.

Offering exceptional peak gain and efficiency, the ANT-5GW-IPW3-NP outdoor antenna also supports private cellular networks, including the Citizens Broadband Radio Service.
