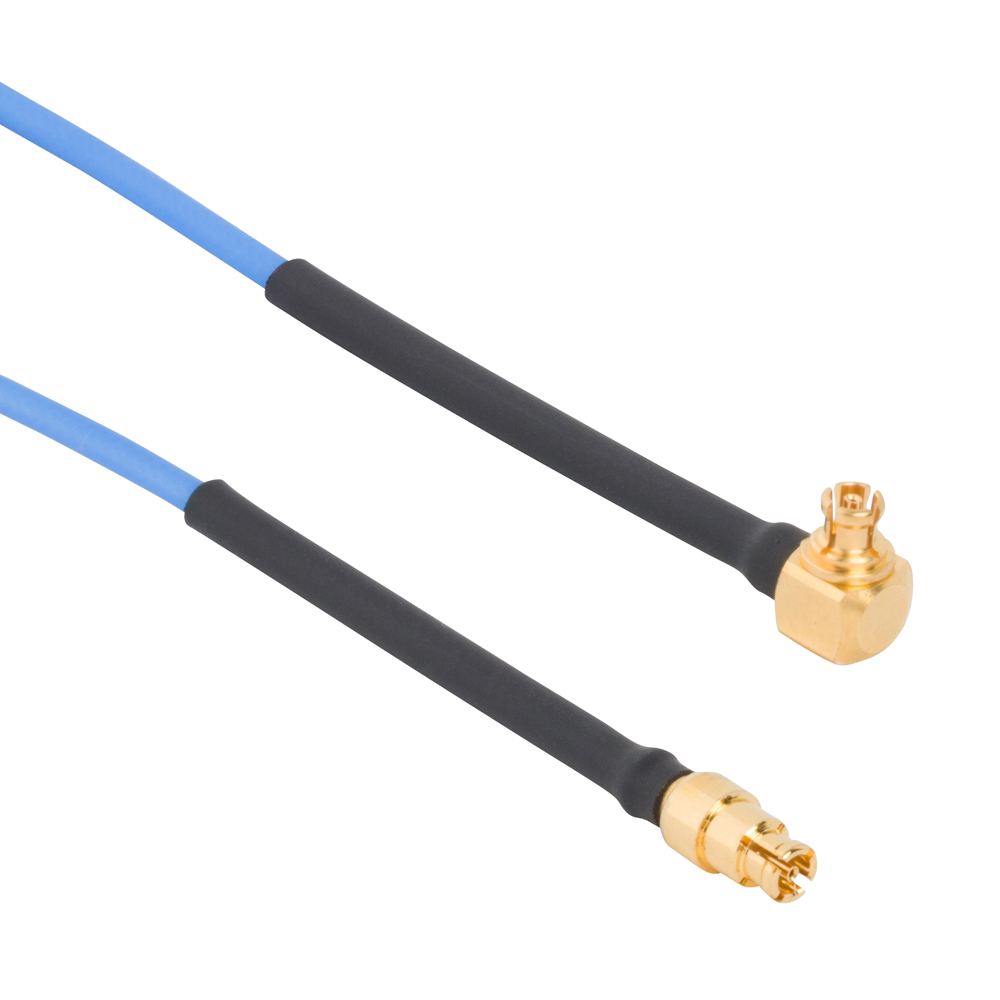

Pre-configured SMPM cable assemblies from Amphenol

SMPM connectors offer reliable, high-frequency performance in a compact package and are designed to accommodate both radial and axial misalignment. Coupled with the flexible capabilities of the cable, this assembly is ideal for board-to-board, quantum computing, and medical applications that require high reliability.

These SMPM cable assemblies operate up to 18GHz with a generous minimum bend radius of 0.05”. The cable is engineered to be a versatile micro-coaxial cable for designs that require a high-density solution. The flexibility of the cable allows for easy routing, aided by the push-on coupling mechanism of the SMPM plug connectors for easy mating and unmating, making these assemblies extremely versatile. They are available in standard lengths starting at 3” and complement any RF design. Custom lengths are available upon request.

These cable assemblies join a robust portfolio of pre-configured SMPM options designed to accommodate a variety of cable types. SMPM cable assemblies are a good fit for applications exposed to shock and vibration, such as instrumentation equipment, aerospace, and military/defence applications where commercial off-the-shelf products are suitable.
