The components feature a reliable bayonet coupling design with rear-removable crimp contacts.

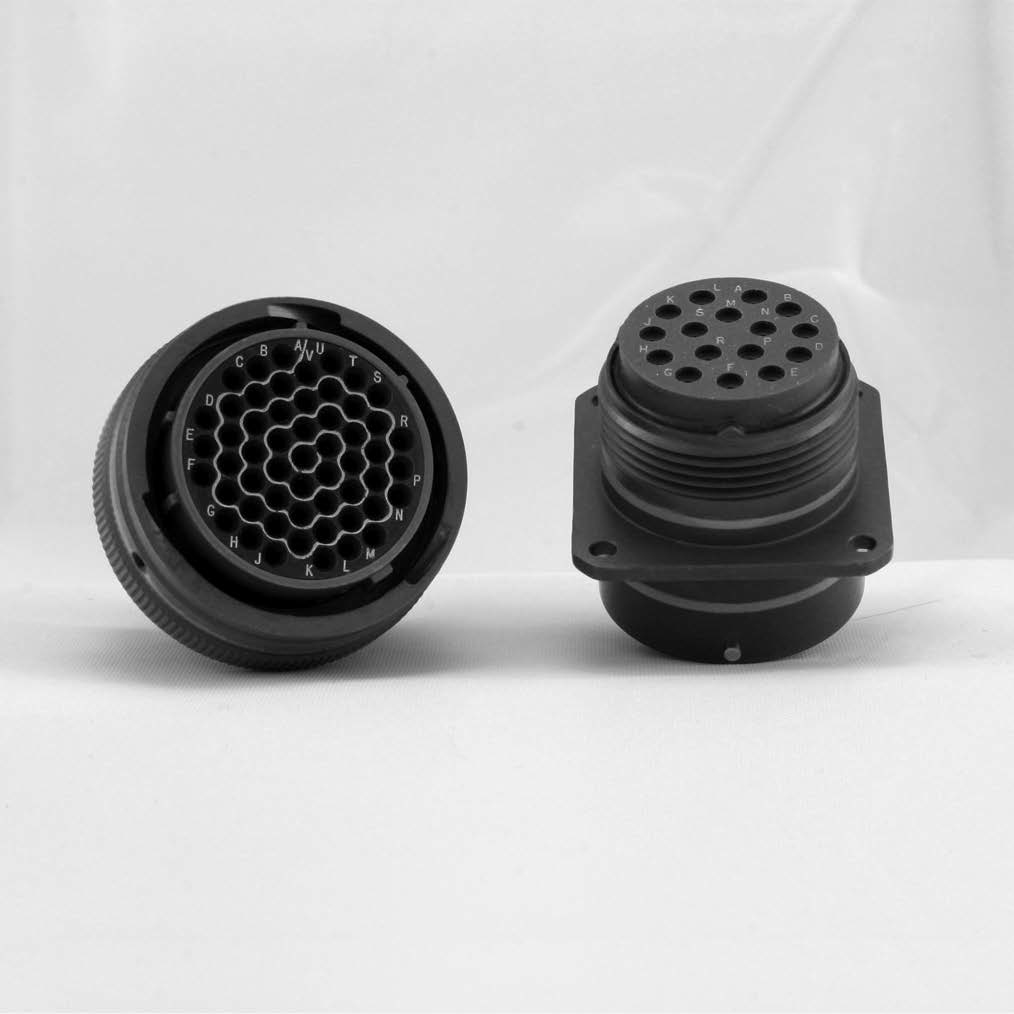

The Conesys MIL-DTL-26482 connectors are available with aluminium and stainless steel shells, and there are four receptacle-mounting styles offered: narrow flange wall mounting receptacles, wide flange wall mounting receptacles, cable connecting receptacles, and jam nut mounting receptacles which incorporate ‘O’ ring seals, designed for rear panel ‘D’ hole mounting.
Plugs are available in two designs, with and without RFI grounding.
Thirty-three insert arrangements per MIL-STD-1669 are tooled and qualified to MIL-DTL-26482 Series 2, utilizing 3 to 61 M39029 contacts. Contacts come in sizes 20, 16, and 12, terminating wire sizes from 24 to 12 gauge.
